UltraForce
22

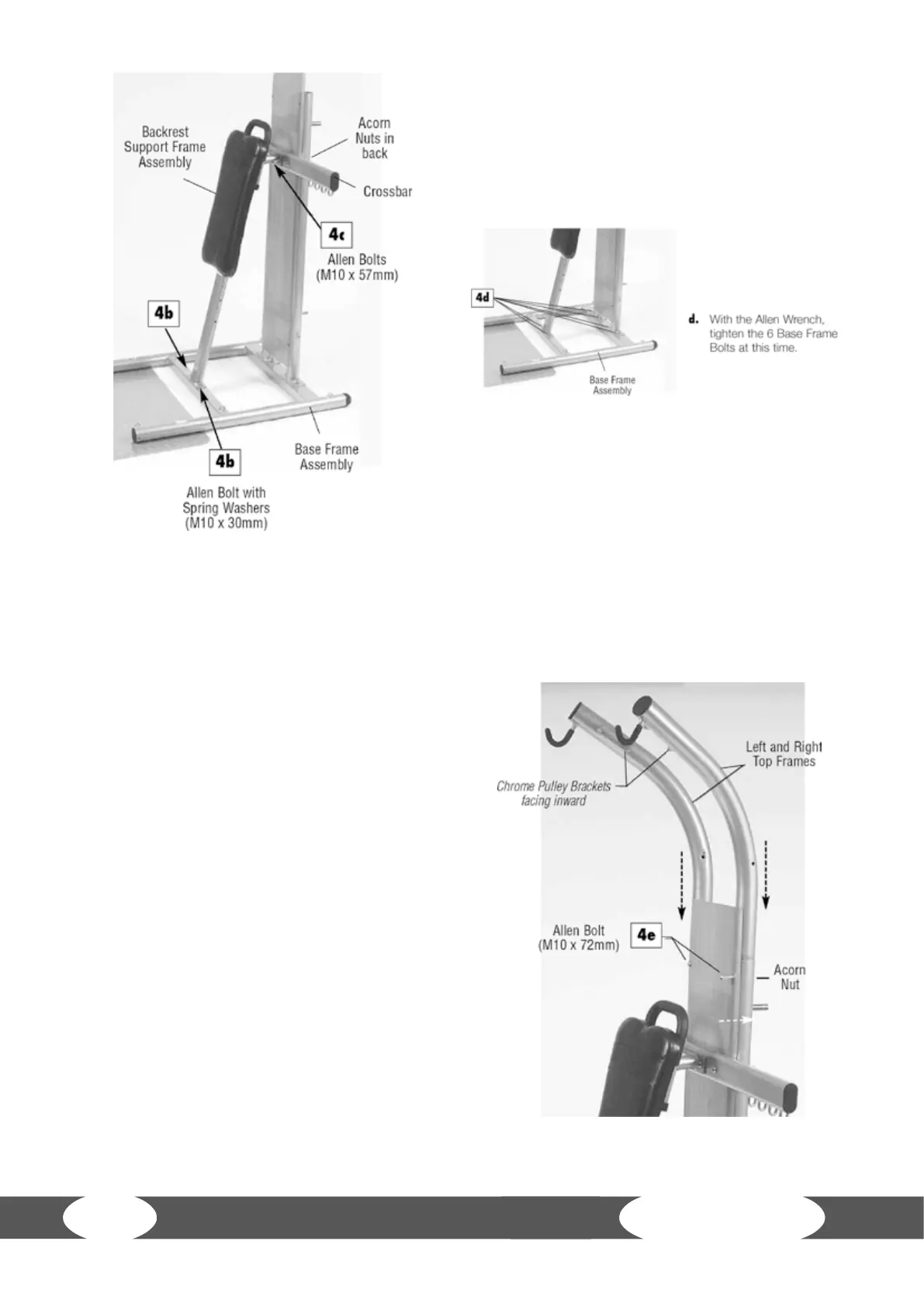

2. Position the frame with the backrest by aligning the holes of the main frame with the holes
of the frame with the backrest. Tighten the parts with two screws and spring washers.
3. Align the holes on the upper end of the backrest with the central holes in the crossbar.
Mount the two Allen screws and two cap nuts and tighten these by hand.
4. Now tighten the six screws in the base
frame with a wrench.
5. Slide the left and right upper frames into
the upper end of the main frame, whereby
the chrome pulley brackets point inward.
Mount the parts with two Allen screws and
cap nuts and tighten these by hand.
