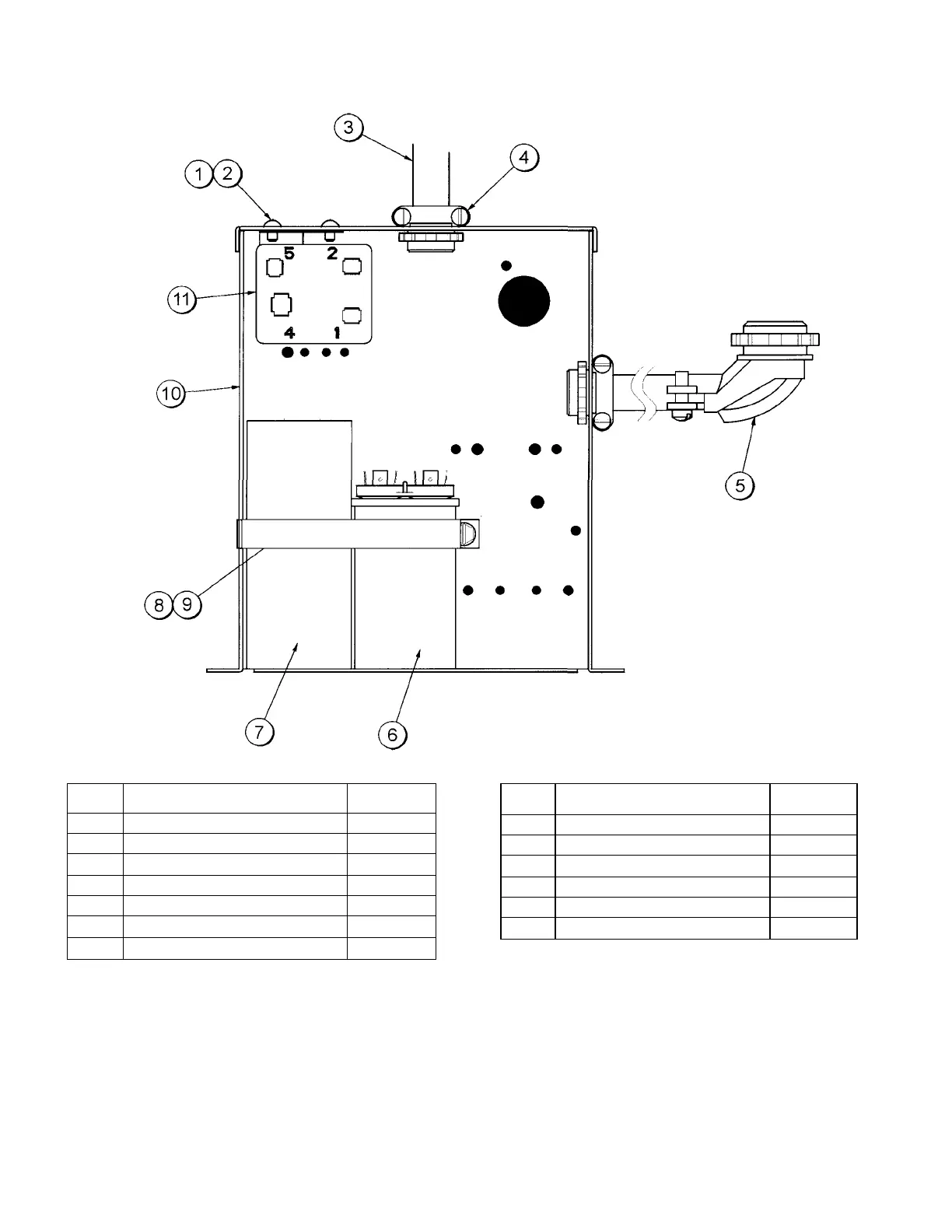

Box A.-Cap & Relay - X50297-27 (Model 754)
208-230/60/1
ITEM DESCRIPTION PART NO.
1 SCREW-8-32 X 1/4 RHM-BR. 000953
2 WASHER-#8-EXTERNAL 000964
3 SLEEVE-WIRE 7/16 ID 020919-
4 CONNECTOR-BX 3/8 STR 014569
5 CONNECTOR-BX 3/8 90D 001793
6 CAPACITOR-RUN- 20UF/440V 012906
7 CAPACITOR-START-161-193 031790
ITEM DESCRIPTION PART NO.
8 SCREW- 10X3/8 TYPE B-HEX 015582
9 STRAP-CAPACITOR 5-5/8 IN. 030258
10 BOX-CAPACITOR RELAY 030183
11 R E LAY- START- CO M P. 038145
* COVER-CAP.RELAY BOX 030315
* LABEL-WIRING SINGLE PH 036880-2
*NOT SHOWN
