Taylor 772 - Diagrams


3DUWV
0RGHOV 

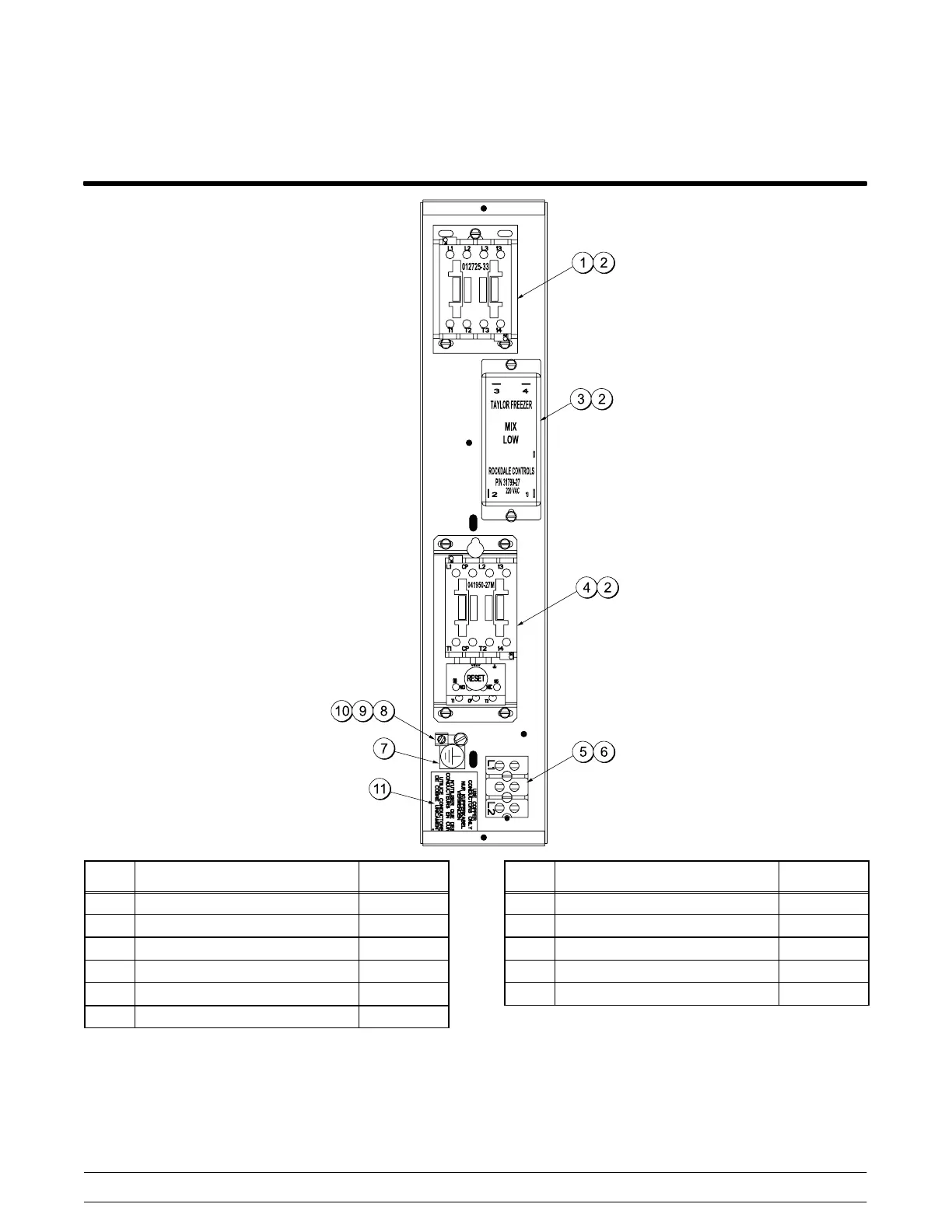

&RQWURO $ 0RGHO   ; 
,7(0 '(6&5,37,21 3$57 12
1 RELAY-3 POLE-20A-208/240 50/ 012725-33
2 SCREW-8X1/4 SL HEX HD 009894
3 CONTROL-MIX LEVEL 031799-27
4 STARTER-1 PHASE-4.5 TO 7 A 041950-27K
5 SCREW-8 X 1-1/4 RD HD TYP B 039420
6 BLOCK-TERMINAL 2P-L1,L2 039422
,7(0 '(6&5,37,21 3$57 12
7 LABEL-GROUNDING SYMBOL 017669
8 LUG-GROUNDING 260 020928
9 SCREW-10-32X1/2 MF HEX CAP 020982
10 NUT-10-32 MF LOCK 020983
11 LABEL-COPPER COND ONLY 025948
