135
McDonald's Intelligap Grills
Parts
150211
Control A.-Switch - X83527-INT (C836 & C838)

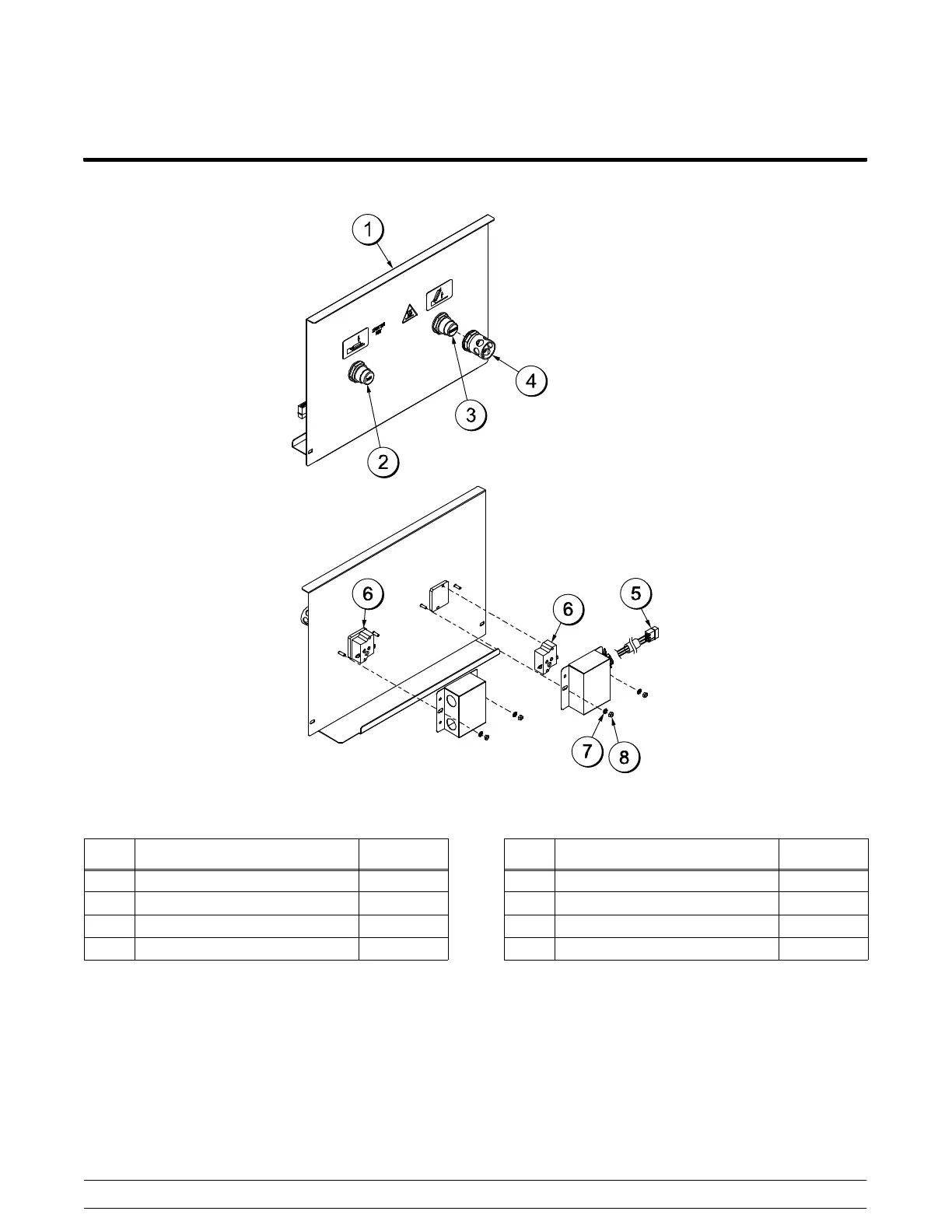

Figure 76
ITEM DESCRIPTION PART NO.
1 PANEL A.-SWITCH X83535
2 BUTTON-OPERATOR-RED 076011
3 BUTTON-OPERATOR-BLACK 076012
4 GUARD-LENSE 075288
ITEM DESCRIPTION PART NO.
5 CONNECTOR-MATE LOCK-3 044823
6 BLOCK-CONTACT 1 NO 076013
7 WASHER-#8 EXT TOOTH LOCK 000964
8 NUT-8-32 HEX M/S NUT SMALL 000969
