McDonald's Intelligap Grills
Parts
130606
Manifold Assembly - X73695-03 (C845 High Voltage)

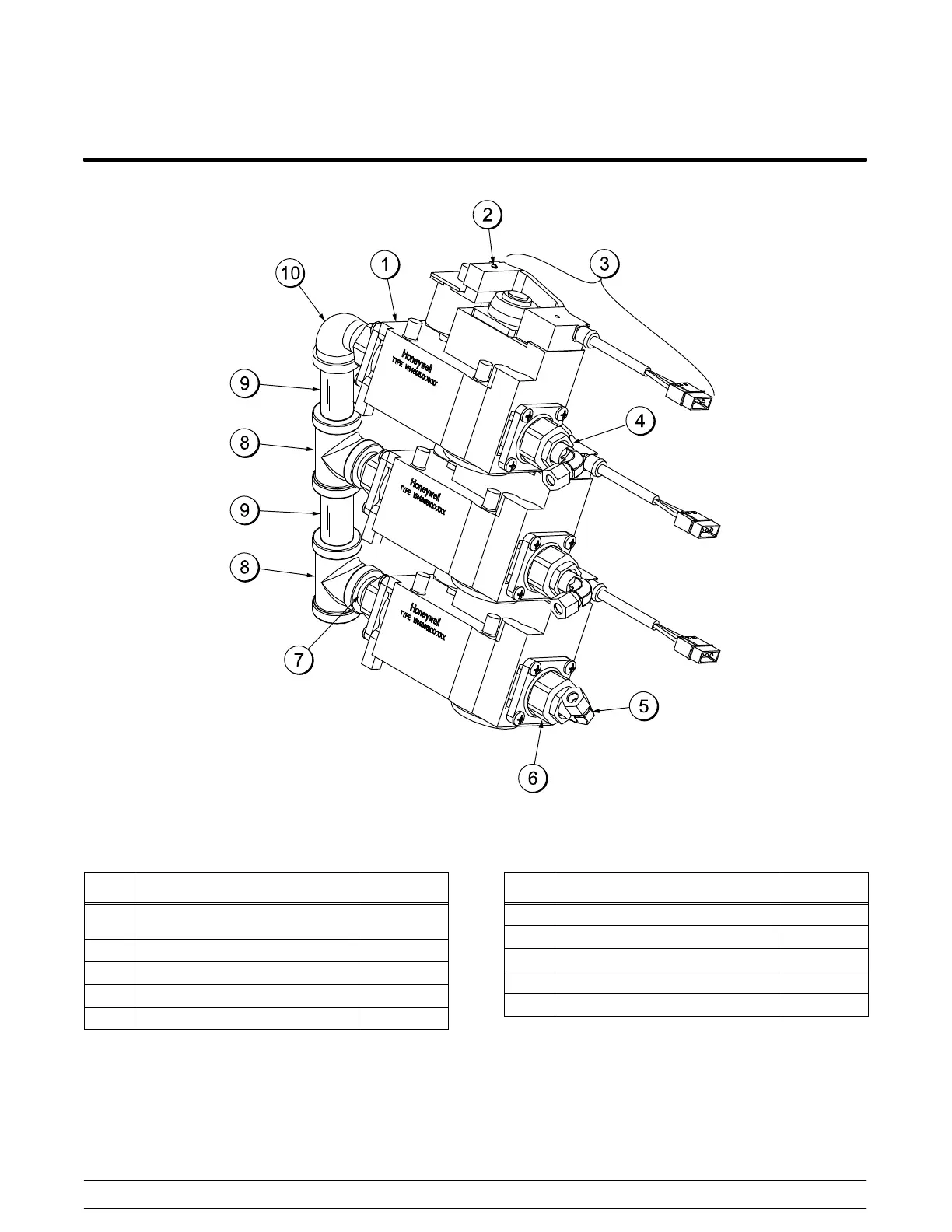

Figure 95
ITEM DESCRIPTION PART NO.
1 VALVE-GAS REDUNDANT
24VAC
078909-03
2 SCREW-M3X0.5 072695-10
3 HARNESS A.-GAS VALVE X79573-36
4 BUSHING-1/2"MPT X 3/8 FPT 076837
5 ELBOW-3/8 MPT X 5/16 076370
ITEM DESCRIPTION PART NO.
6 KIT A.-GAS VALVE 1/2" NPT 072569
7 NIPPLE 1/2"MPT CLOSE BLACK 076824
8 TEE-1/2 FP BLACK PIPE 078981
9 NIPPLE-1/2MPT X 2-1/2LG BLK 081426
10 ELBOW-1/2 STREET GALV. 006341
