35
McDonald's Intelligap Grills
Controls and Systems
150211

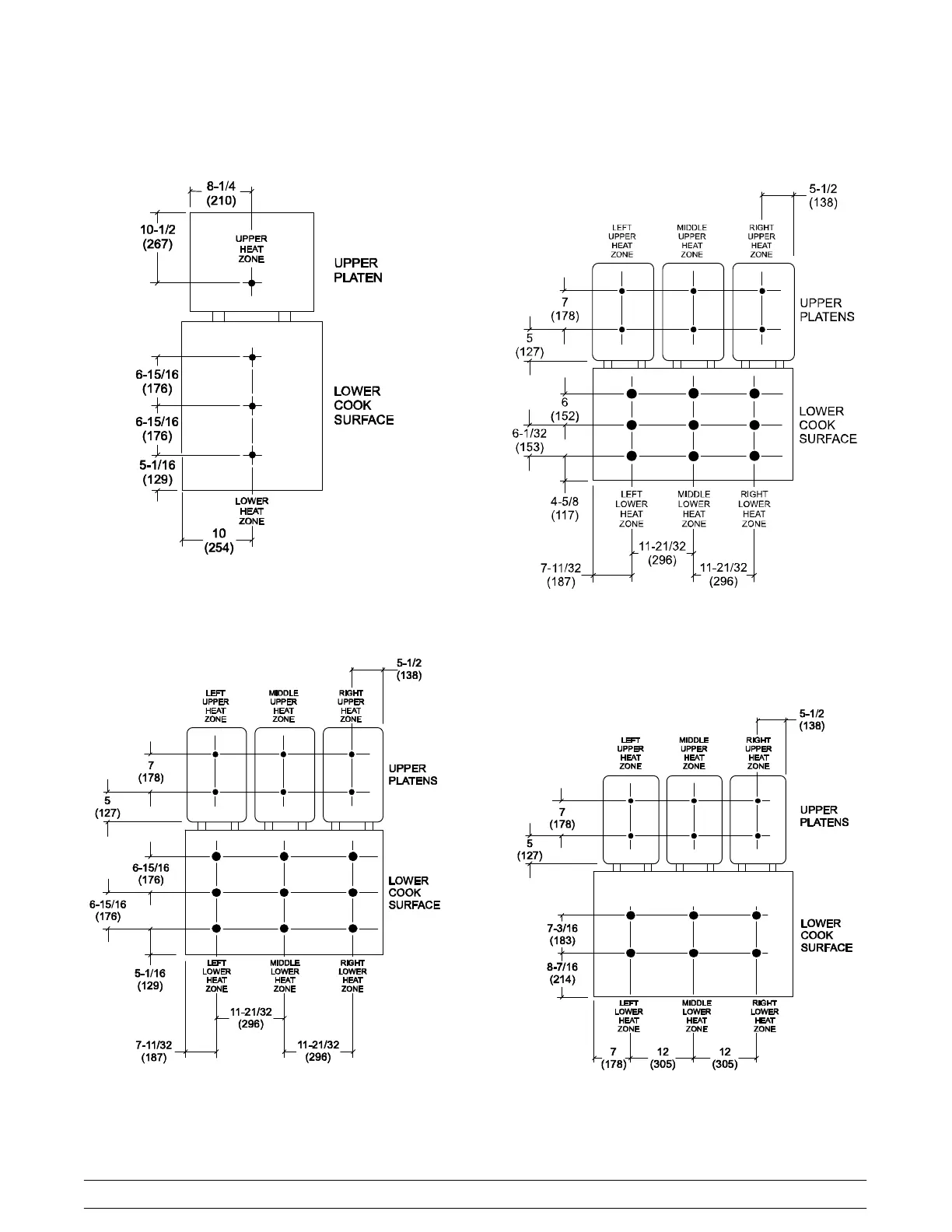

Figure18 below identifies the probe locations for the
Model C838 grill.
C838
Figure 18
Figure 19 below identifies the probe locations for the
Model C842 grill.
Model C842
Figure 19
Figure 20 below identifies the probe locations for the
Model C844 grill.
Model C844
Figure 20
Figure 21 below identifies the probe locations for the
Model C845 grill.
Model C845
Figure 21
