TBB Apollo Maxx 5.0S - LCD Display Icons

Apollo Maxx User Manual
16
LED Indicator
Function
Invert
Green
Solid on
Inverting mode
Flashing
Power Assist mode
Charge
Green
Solid on
The battery is Charging.
Flashing
The battery is fully Charged.
Fault
Red
Solid on
Fault occurs
Flashing
Warning occurs

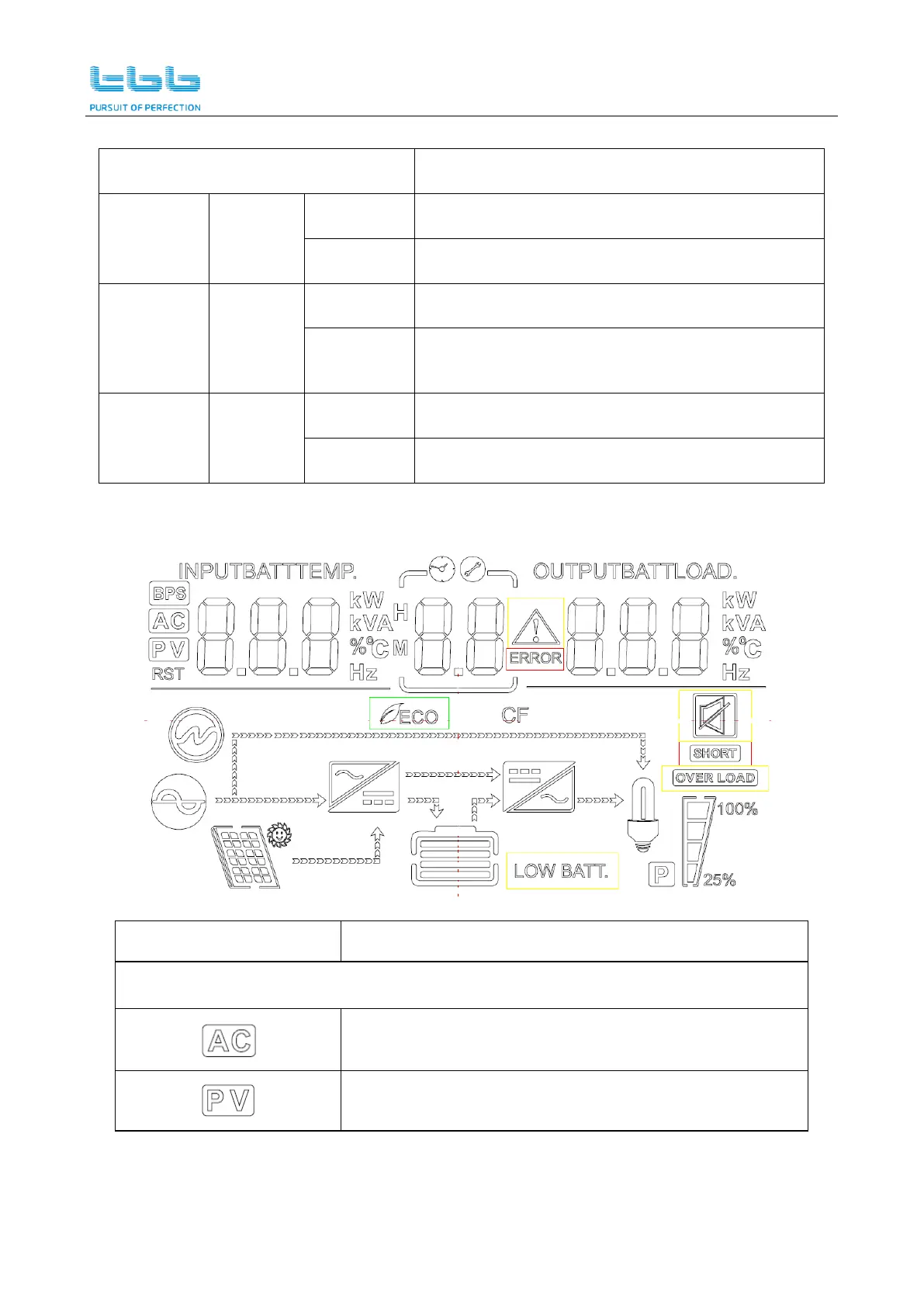

5.2 LCD Display Icons
Icon
Function description
Input Source Information
Indicates the AC input
Indicates the PV input
