TBB APOLLO MAXX Series User Manual

Apollo Maxx User Manual
5

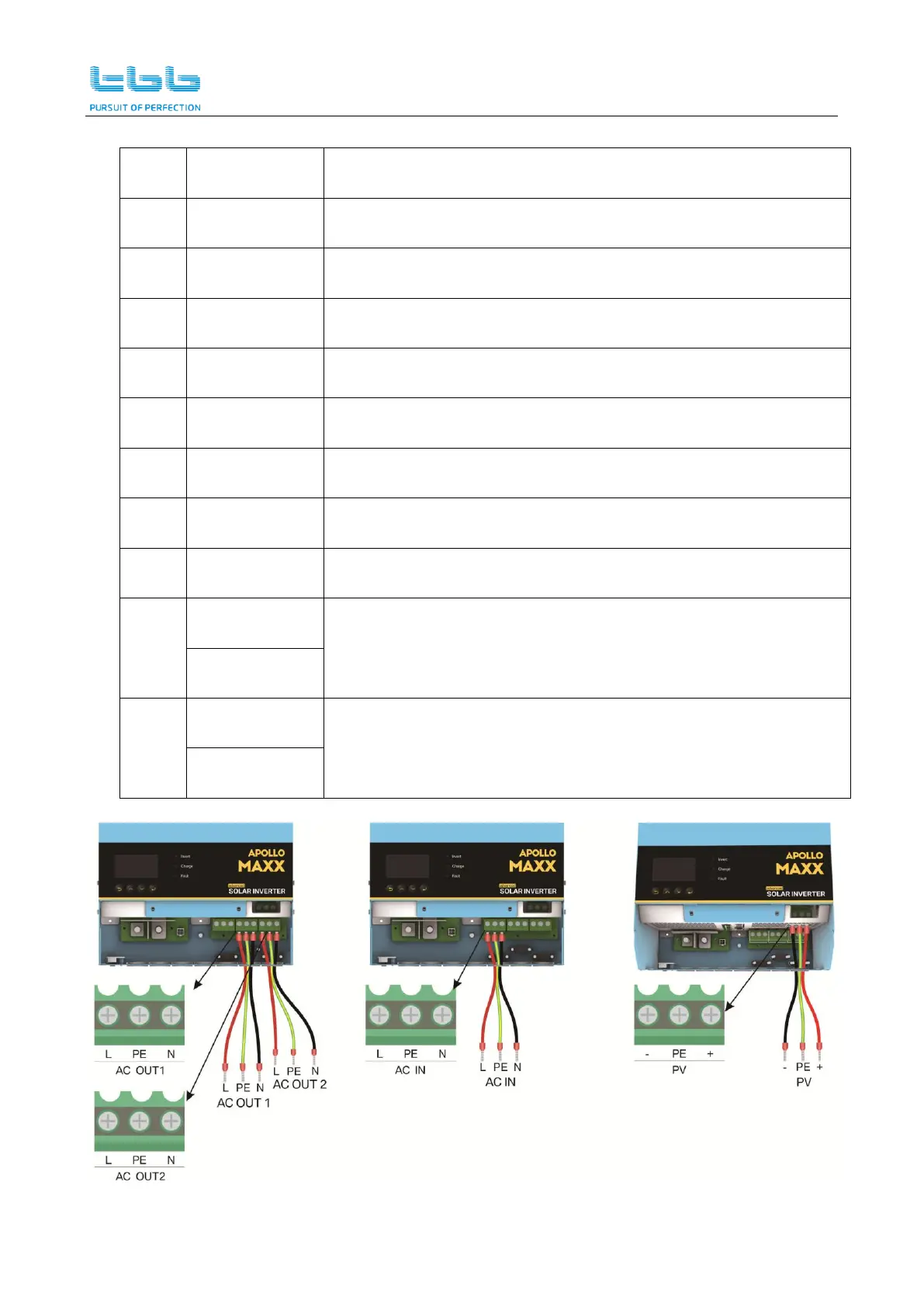

Table 2-1 Signal Terminals Introduction
No.
Silk-screen
Definition
①
BAT Sample
Battery temperature and voltage sample.
②
Remote
Dry contact input control, remote ON/OFF control.
③
ComMON
RS485 port for external monitor such as MCK, SNMP, Kinergy, etc.
④
ComSync In
Parallel synchronous communication input(CAN) .
⑤
ComSync Out
Parallel synchronous communication output(CAN) .
⑥
EPO
Dry contact input control, emergency power off.
⑦
ComSYS
System communication(RS485), connected to SP or BGK.
⑧
ComSYS
System communication(RS485), connected to SP or BGK.
⑨
Relay1
Dry contact output control 1(NO,C,NC) .
(NO,C,NC)
⑩
Relay2
Dry contact output control 2(NO,C,NC) .
(NO,C,NC)
