TBB APOLLO MAXX Series - Control Panel and Connection Terminals; Control Panel Overview; Connection Compartment Terminals

Apollo Maxx User Manual
4
2.2.2 Control panel
ON/OFF button
Operation button

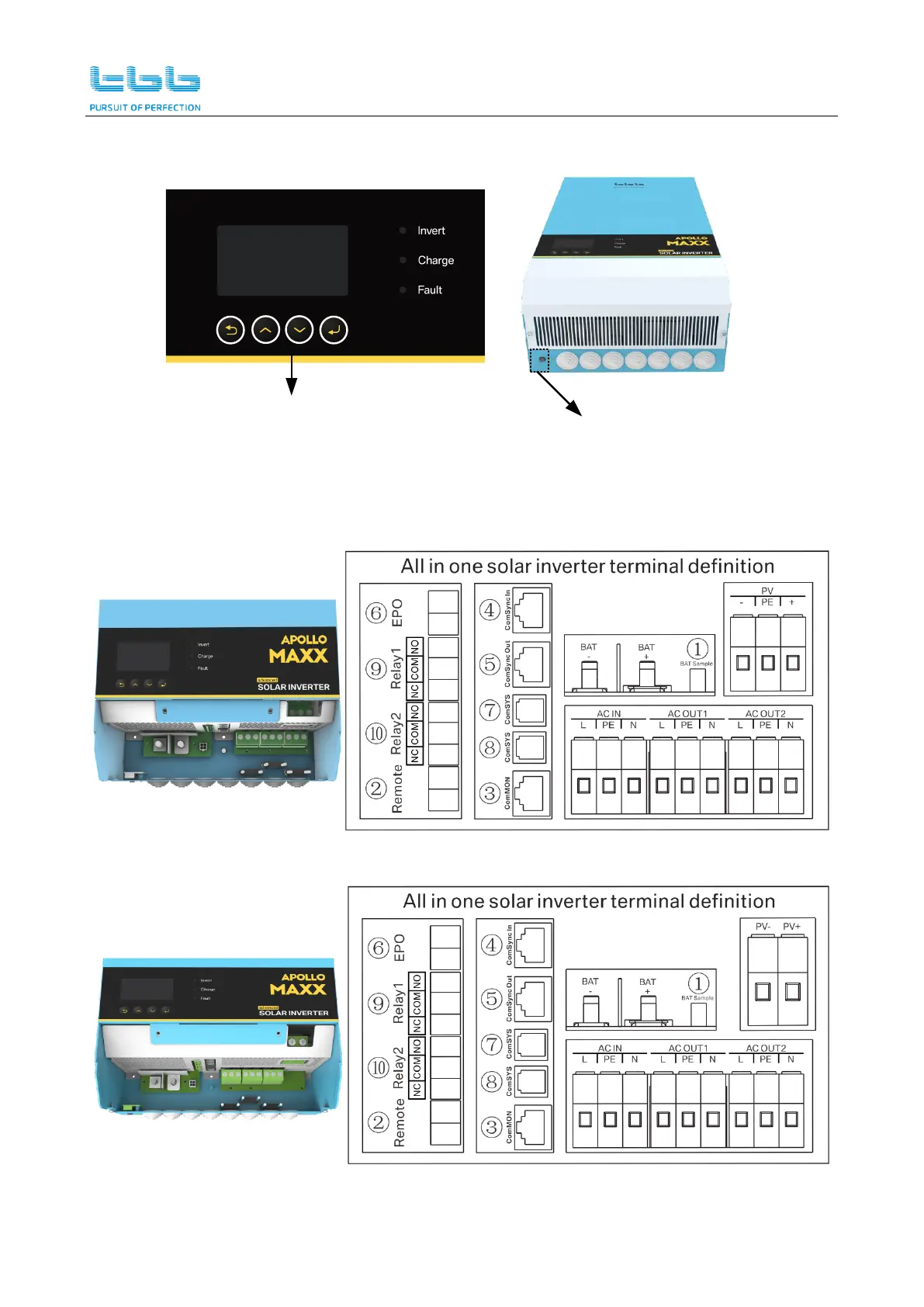

Figure 2-2 All in One Solar Inverter Control Buttons
2.2.3 Connection compartment
Apollo Maxx 2.0M, Apollo Maxx 2.0S, Apollo Maxx 3.0M, Apollo Maxx 3.0S
Apollo Maxx 5.0S
Figure 2-3 Signal Terminals
