RETURNS
STANDARD ROUTING WITH DIO 17
Engine 1
02R bus
Engine 2
Slot Send 5
Slot Send 6
Input Select
Engine Fader
Output Select
Slot Send 7
Slot Send 8
Slot Send 1
Slot Send 2
Slot Send 3
Slot Send 4
Slot Input 7/8
Slot Input 5/6
Slot Input 3/4
Slot Input 1/2
Ext Input Fader
I/O Extension
Ext. Output 5
Ext. Output 6
Ext. Output 7
Ext. Output 8
Ext. Output 1
Ext. Output 2
Ext. Output 3
Ext. Output 4
Ext. Input 7/8
Ext. Input 5/6
Ext. Input 3/4
Ext. Input 1/2
Stereo
Mono

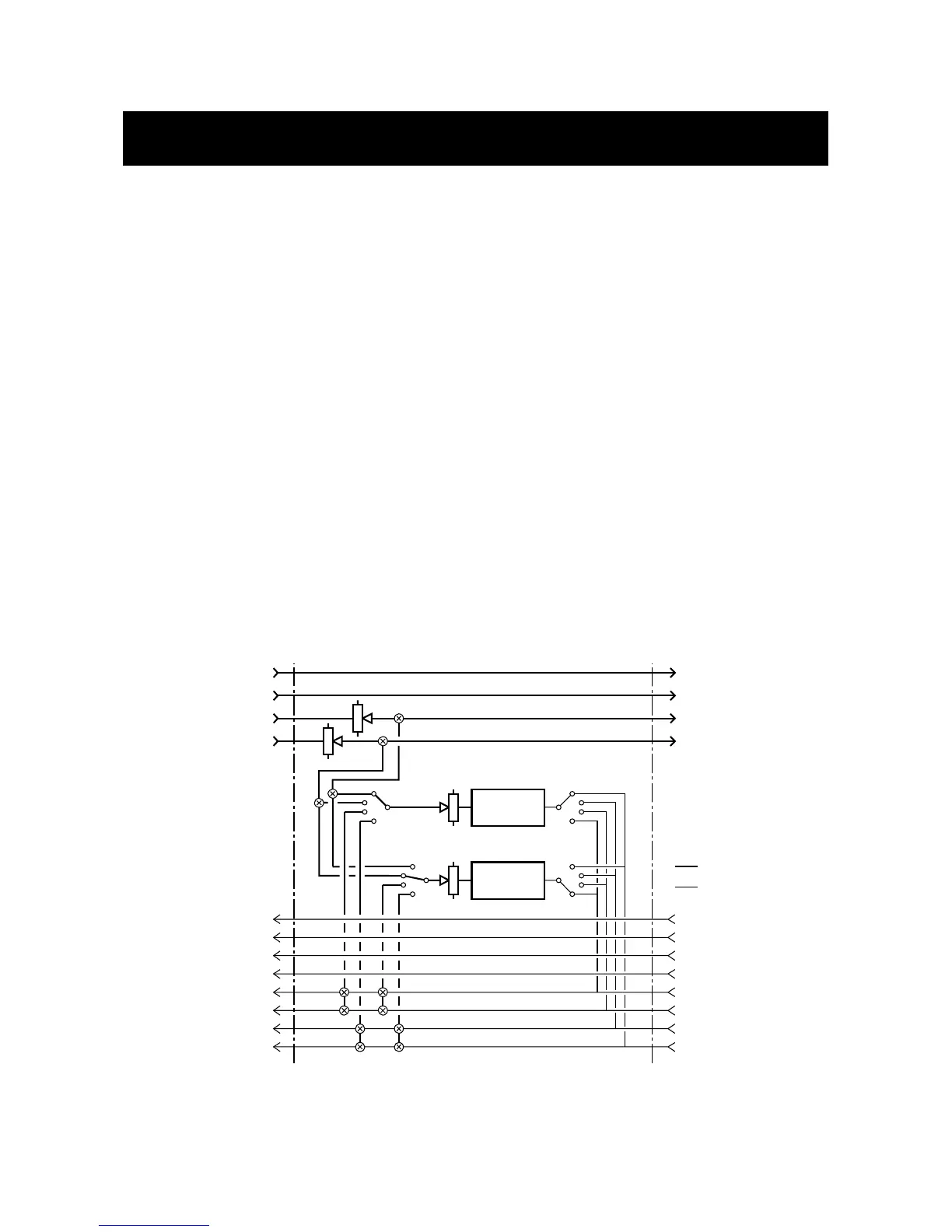

UNIT•Y cards with I/O extension
For a card positioned in slot 1, the two UNIT•Y stereo engines will return on Tape inputs 5-
8, or may be directed to outputs 5-8 of the card.
External inputs return on Tape inputs 1-8 like with a normal Yamaha I/O card. External
inputs 5/6 and/or 7/8 may be mixed with UNIT•Y effects at 24 bit resolution. The submix is
passed on to Tape input 5/6 and 7/8. Submix levels are automatable.
For a card positioned in slot 2, the two UNIT•Y stereo engines will return on Tape inputs
13-16, or may be directed to outputs 5-8 of the card.
External inputs return on Tape inputs 9-16 like with a normal Yamaha I/O card. External
inputs 5/6 and/or 7/8 are mixed with UNIT•Y effects at 24 bit resolution. The submix is
passed on to Tape input 13/14 and 15/16. Submix levels are automatable.
For a card positioned in slot 3, the two UNIT•Y stereo engines return on Mic inputs 5-8, or
may be directed to outputs 5-8 of the card.
External inputs return on Mic inputs 1-8 like with a normal Yamaha I/O card. External inputs
5/6 and/or 7/8 are mixed with UNIT•Y effects at 24 bit resolution. The submix is passed on
to Mic input 5/6 and 7/8. Submix levels are automatable.
UNIT•Y card with I/O extension
