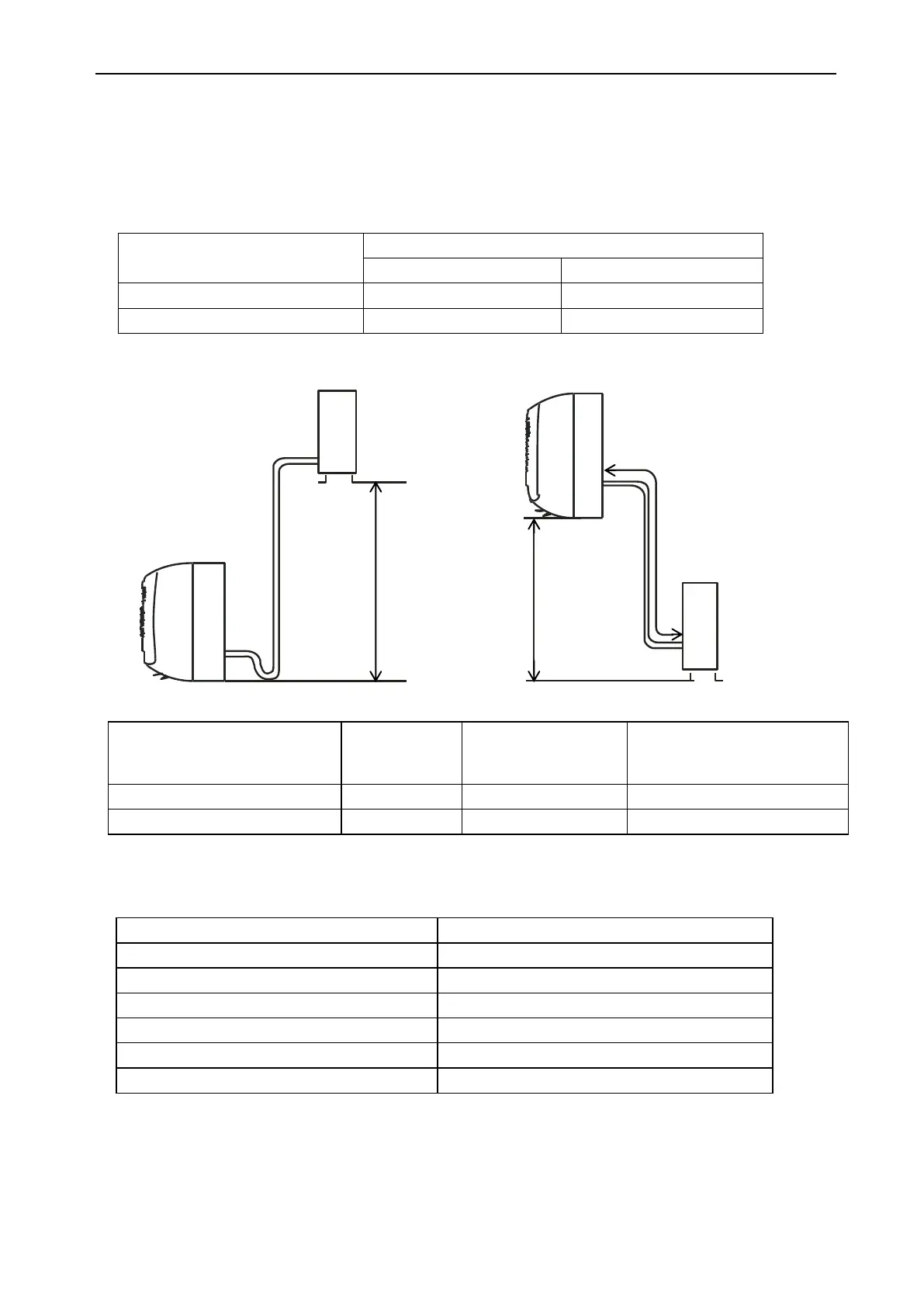

9. Installation manual
9.1 Installation Details
Connecting pipe length
Model
Pipe size(Inch)
Liquid
Gas
CWH09TBAI/CWH09TBAO
1/4
3/8
CWH12TBAI/CWH12TBAO
1/4
3/8
Mode
Standard length:
m
Refrigerant piping
Max. length: m
Additional refrigerant
Calculation: ×g=20g/m(A-5m)
CWH09TBAI/CWH09TBAO
3.0
15
20g/m
CWH12TBAI/CWH12TBAO
3.5
15
20g/m
Connecting cables
The power cord should be selected according to the following specifications sheet.
Appliance Amps
Wire Size
5
AWG21/0.75 mm2
10
AWG18/1.0 mm2
13
AWG15 /1. 5 mm2
18
AWG14/1.6 mm2
25
AWG12/2.0 mm2
30
AWG10/2.5 mm2
Outdoor unit
In do o r unit
Pi pe length is
15 meters Max.
be less than 5m
Height should
Outdoor unit
Indoor unit
Pipe l ength is
15 meters Max.
be less than 5m
Height sh ould
