4. Mechanical Instructions

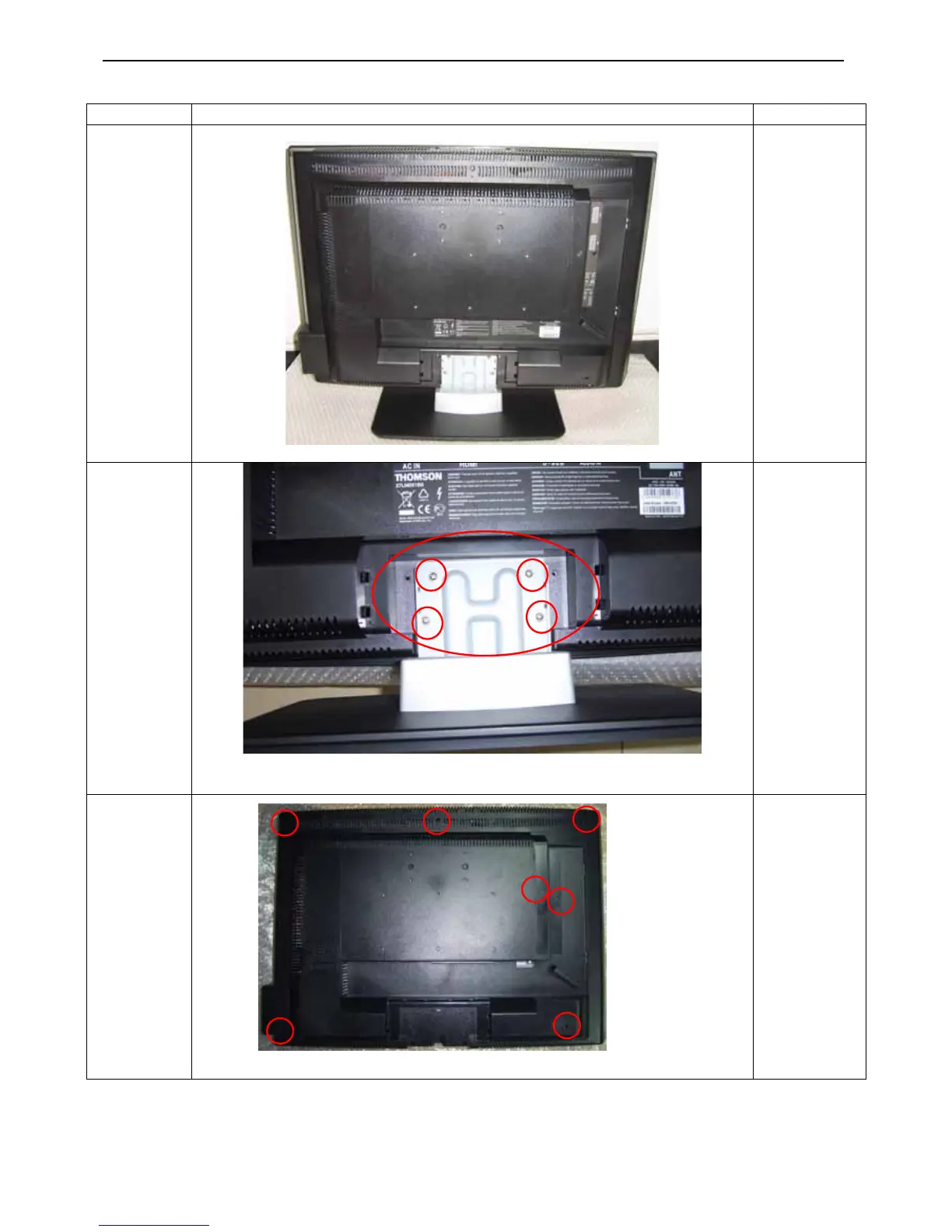

Step Figure Description
Preparation
Lay the
LCD-TV on a
flat, soft and
clean surface.
Remove
the base
and stand
Remove the
hinge cover
and the
screws on the
stand to
remove the
stand and
base.
Remove
the back
cover
Remove the
seven screws
mark in red to
remove the
back cover.
