Remove
Inverter,
tuner and
power
board

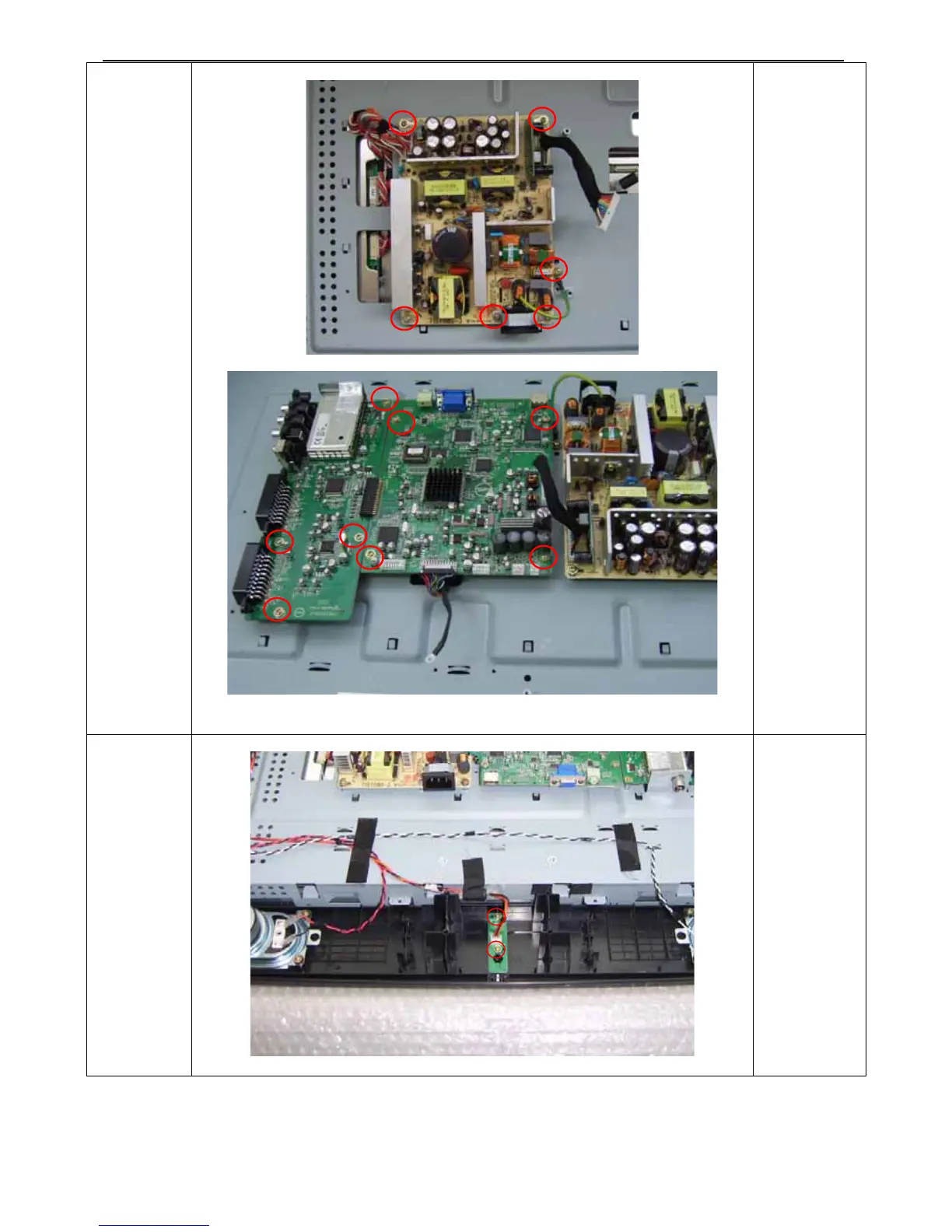

1.Remove the
six screws
marked in red
to remove the
inverter board.
2. Remove the
eight screws
marked in red
to remove the
main board
and tuner
board
3.Disconnect
the connector
and remove
the tuner
board , power
board and
main board.
Remove the
two screws
and connector
to remove the
IR board.
