No. Part No. Part Name Q’ty Remark
1 42011-000108 Grille 1
2 41207-000017 Top Cover 1
3 92011-000434 Condenser 1
4 41203-000038 Outdoor Motor Supporter 1
5 22001-000006 Outdoor Motor 1
6 42004-000072 Propeller Fan 1
7 41205-000126 Left Grille Supporter 1
8 41206-000030 Front Plate 1
9 42011-000068 Fan Guard 1
10 92014-000323 Compressor 1
11 92008-000177 4-way Valve 1
12 92007-000829 4-way Valve Assembly 1
13 41202-000183 Base 1
14 41205-000056 Right Plate 1
15 92008-000043 Two-way Valve 1
16 41204-000012 Valve Supporter 1
17 92008-000115 Three-way Valve 1
18 41201-000004 Electrical Box Cover 1
19 42001-000037
Cable Clamp(
φ6)
1
20 42001-000035
Cable Clamp(
φ7)
1
21 11304-100007 Terminal 1
22 10303-100020 Fan Motor Capacitor 1
23 22003-000005 Compressor Capacitor 1
24 42001-000029 Capacitor Strip 1
25 41214-000342 Electrical Parts Box 1
26 92007-001795 Capillary Assembly 1
27 41208-000118 Partition plate 1
28 A1201-009090 Cabinet Carton 1
29 A2005-000494 Base Carton 1
30 41213-000008 Cover Forming 1
TCL Air Conditioner Service Manual

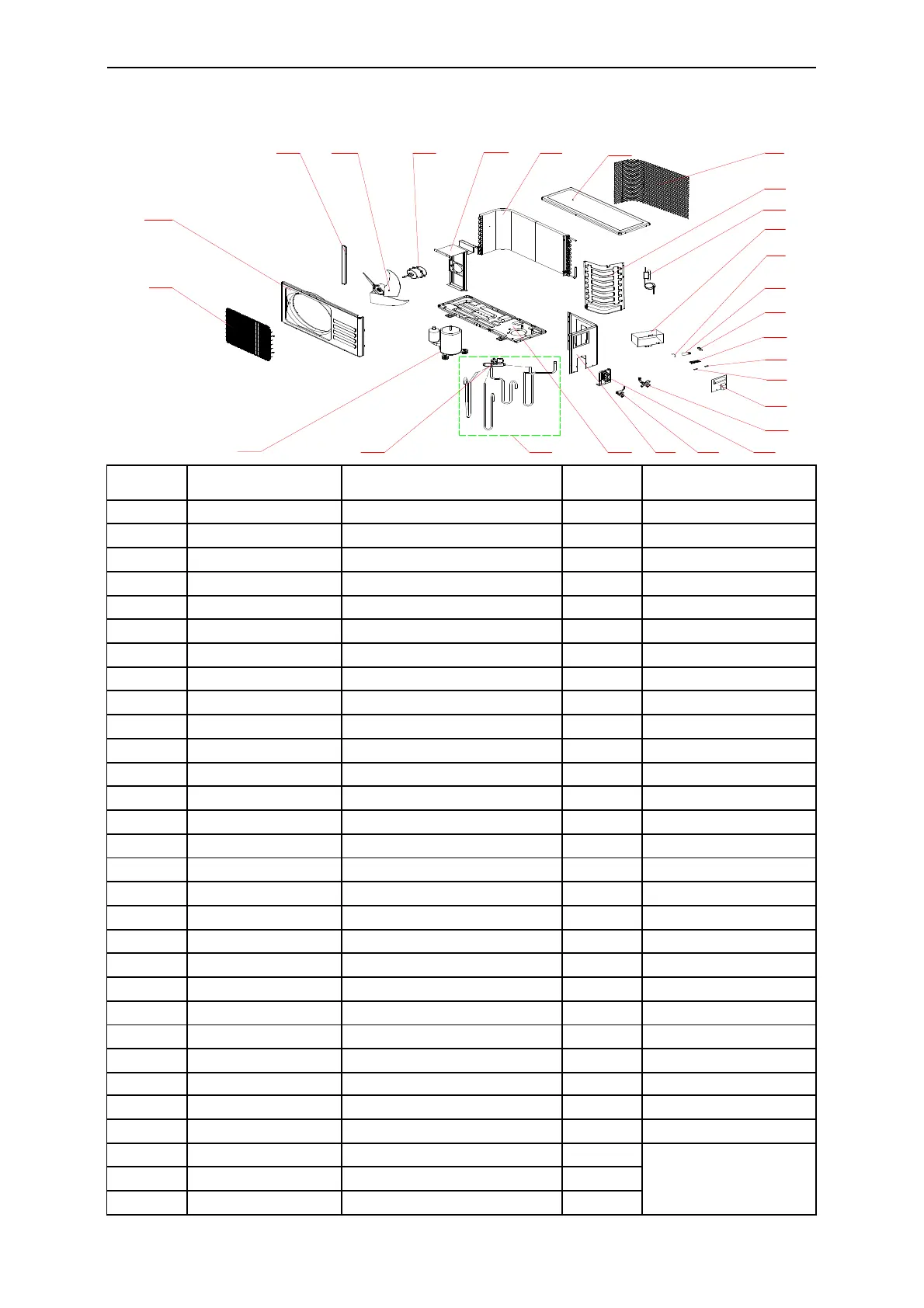

Outdoor Unit - TAC-09CHSA/VB
Not shown in
explosion view
7
6
5
4
3
2
1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
16
