No. Part No. Part Name Q’ty Remark
1 41106-001262 Front Panel 1
2 42008-000065 Air Filter 2
3 41106-002337 Face Frame 1
4 41105-000160 Electrical Box Cover 1
5 31102-000066 Display PCB 1
6 42003-000001 Display PCB Box 1
7 92011-002762 Evaporator 1
8 41108-000103 Screw Cover 2
9 42004-000038 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000259 Indoor Motor 1
12 41101-000244 In And Out Pipe Fixer 1
13
41108-000012
Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15
31101-000442
Main PCB 1
16 10502-100021 Transformer 1
17 42001-000103 Cable Clamp 1
18
22001-000313 Vane Motor 1 1
19 41199-002713 Base 1
20 41101-000066 Vertical Vane Assembly 2
21
41103-000216
Vane 1
22 41109-000038 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000777 Remote Controller 1
25 A1101-008458 Indoor Carton 1
26 41110-000214 Left Foaming 1
27 41110-000258 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view

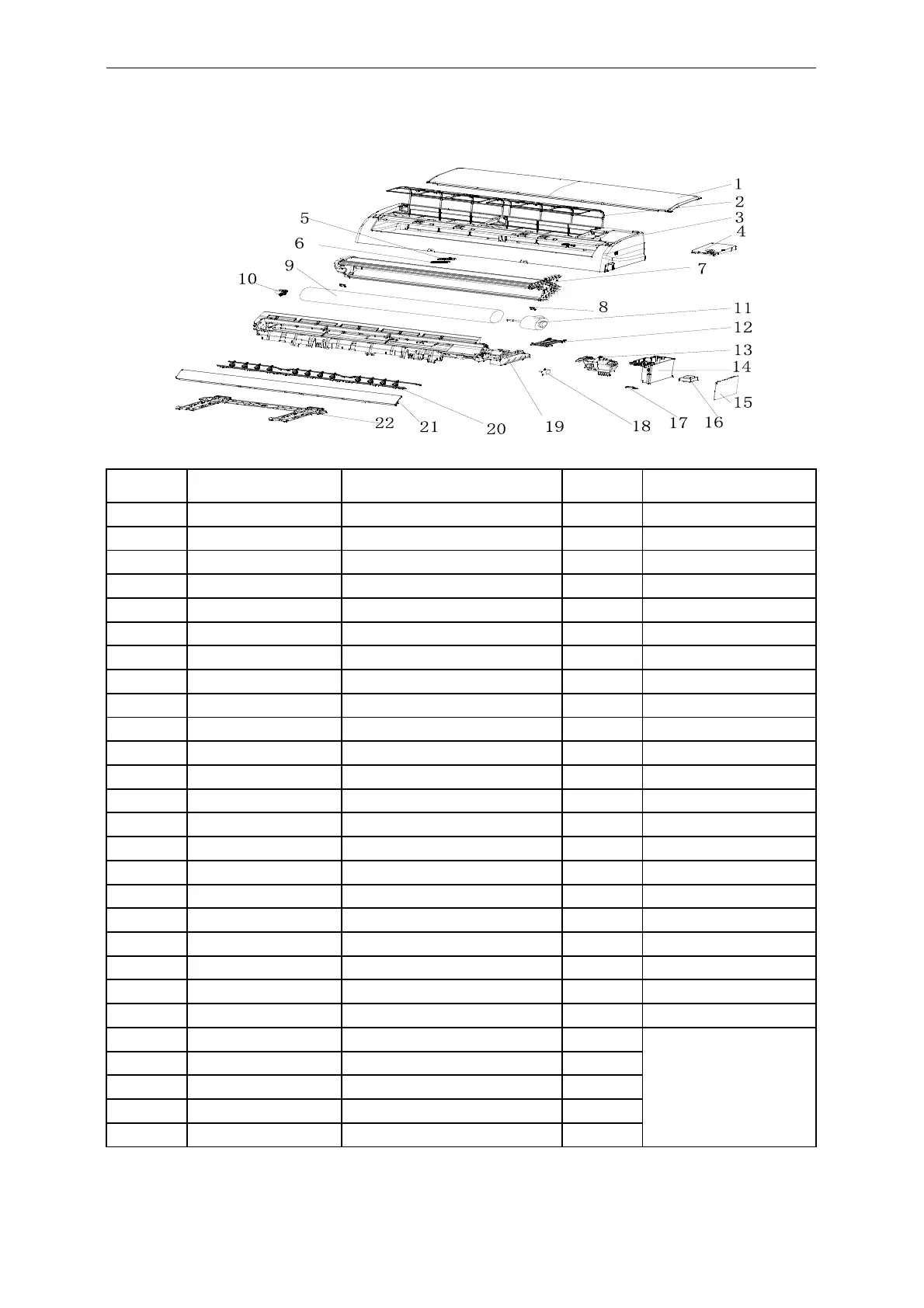

Indoor Unit- TAC-12CHSA/VB
17
