No. Part No. Part Name Q’ty Remark
1 42011-000109 Grille 1
2 41207-000014 Top Cover 1
3 92011-000629 Condenser 1
4 41203-000037 Outdoor Motor Supporter 1
5 22001-000009 Outdoor Motor 1
6 42004-000073 Propeller Fan 1
7 41205-000124 Left Grille Supporter 1
8 41206-000038 Front Plate 1
9 42011-000070 Fan Guard 1
10 92014-000158 Compressor 1
11 92008-000177 4-way Valve 1
12 92007-000935 4-way Valve Assembly 1
13 41202-000164 Base 1
14 41205-000054 Right Plate 1
15 92008-000018 Two-way Valve 1
16 41204-000010 Valve Supporter 1
17 92008-000131 Three-way Valve 1
18 41201-000005 Electrical Box Cover 1
19 42001-000037 Cable Clamp 1
20 42001-000038 Cable Clamp 1
21 11304-100007 Terminal 1
22 10303-100015 Fan Motor Capacitor 1
23 22003-000004 Compressor Capacitor 1
24 42001-000030 Capacitor Strip 1
25 41201-000005 Electrical Parts Box 1
26 92007-002079 Capillary Assembly 1
27 41208-000121 Partition plate 1
28 A1201-009093 Cabinet Carton 1
29 A1401-000012 Base Carton 1
30 A1202-000002 Cover Forming 1
TCL Air Conditioner Service Manual

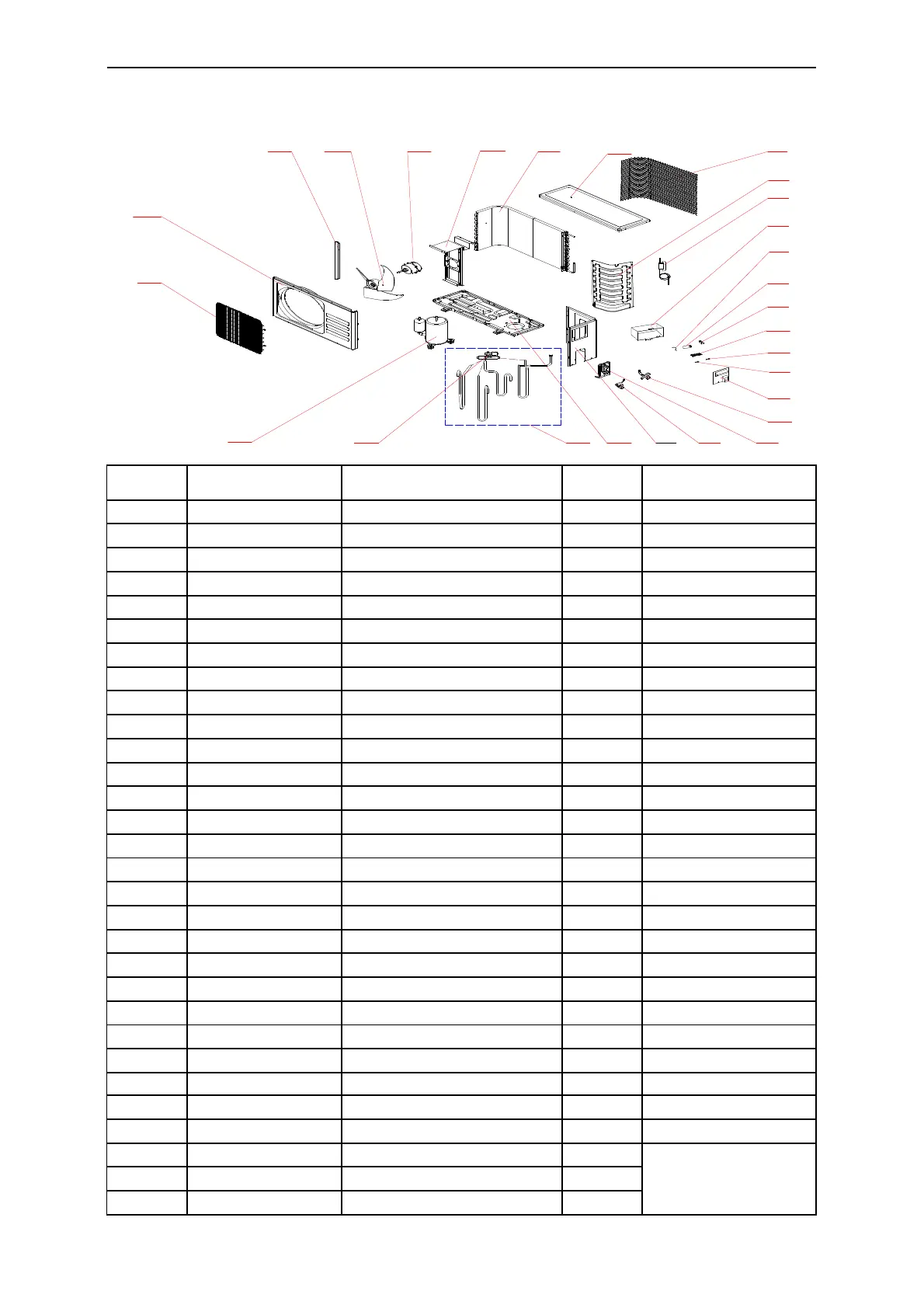

Outdoor Unit - TAC-12CHSA/VB
Not shown in
explosion view
11
12
13
9
10
8
7
6
5
18
14
15
17
16
20
19
21
22
24
23
25
4
3
2
26
1
27
18
