TCL TAC-07CHSA/VB - Page 20

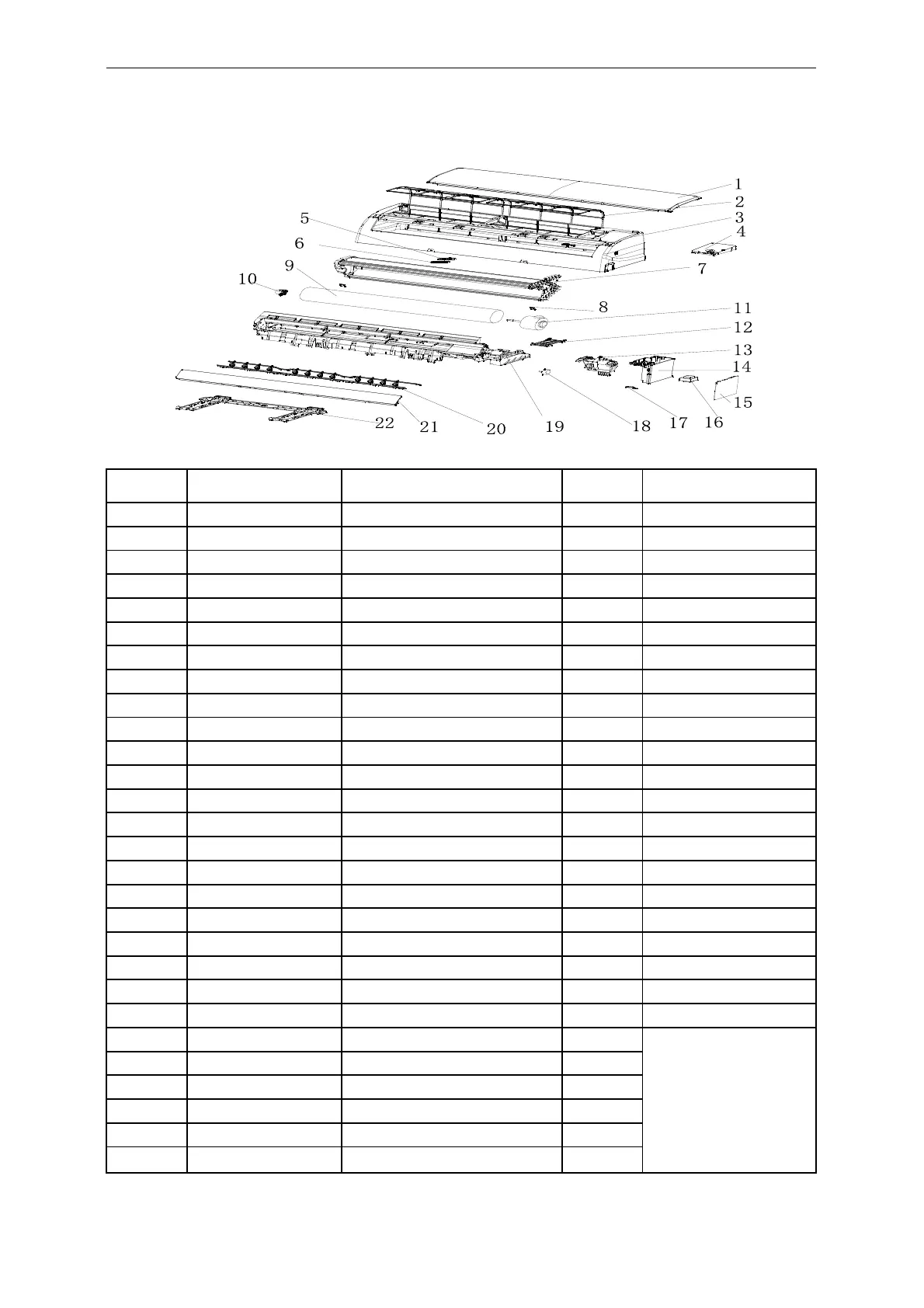

No. Part No. Part Name Q’ty Remark
1 41106-001264 Front Panel 1
2 42008-000064 Air Filter 2
3 41106-002340 Face Frame 1
4 41105-000160 Electrical Box Cover 1
5 31102-000066 Display PCB 1
6 42003-000001 Display PCB Box 1
7 92011-002978 Evaporator 1
8 41108-000103 Screw Cover 2
9 42004-000036 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000252 Indoor Motor 1
12 41101-000238 In And Out Pipe Fixer 1
13
41108-000007
Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15
31101-000429
Main PCB 1
16 10502-100028 Transformer 1
17 42001-000103 Cable Clamp 1
18 22001-000321 Vane Motor 1 1
19 41102-000007 Base 1
20 41101-000063 Vertical Vane Assembly 3
21
41103-000223
Vane 1
22 41109-000018 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000777 Remote Controller 1
25 A1101-008461 Indoor Carton 1
26 41110-000215 Left Foaming 1
27 41110-000270 Right Foaming 1
28 41110-000277
Middle Pasteboard Supporter
1
TCL Air Conditioner Service Manual
Indoor Unit- TAC-24CHSA/VB
Not shown in
Explosion view
19
