TCL TAC-09CHSA/XP

Air Conditioner Service Manual
13

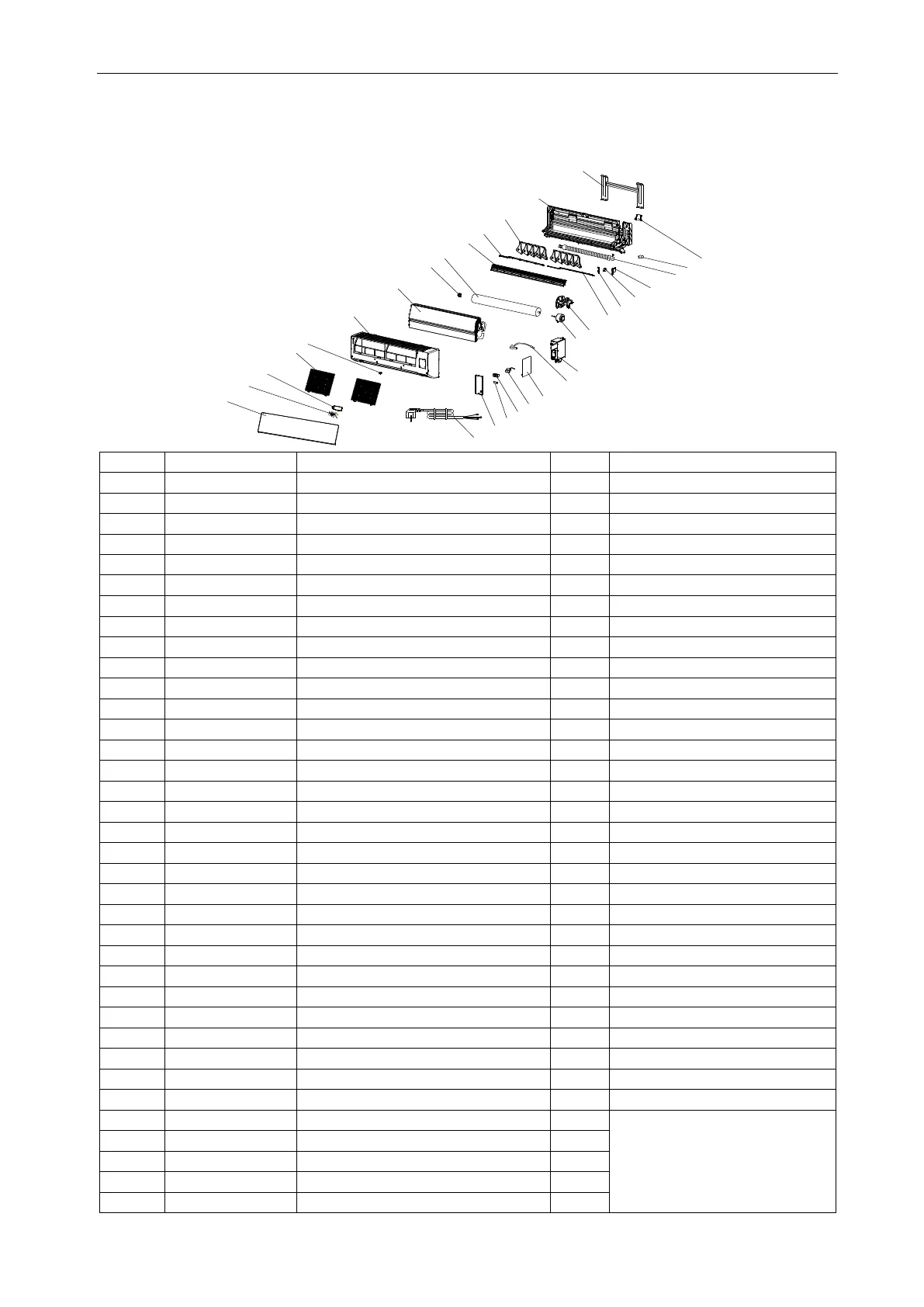

7. Explosion view and parts
Indoor Unit-TAC-09CHSD/XP
No.
Part No.
Part Name
Q’ty
Remark
1
210837910
Installation Plate
1
2
210754760B
Base
1
3
210701883
Vertical Vane Assembly
2
4
210701905
Vertical Vane Connector
1
5
210754765
Vane
1
6
210737655
Cross Fan
1
7
1070100010
Bearing Mount
1
8
211237323B
Evaporator
1
9
210754753
Face Frame
1
10
210701846Z
Screw Cover
1
11
210701863
Air Filter
2
12
210705767
Display PCB Box
1
13
210901127S
Display PCB
1
14
214162450B
Front Panel
1
15
1170120044B
Power Supply Cord
1
16
210738393
Electrical Box Cover
1
17
210736832
Cable Clamp
1
18
210900478A
Terminal
1
19
210901224
Transformer
1
20
210901714EF
Main PCB
1
21
210736831
Electrical Box
1
22
210900333
Indoor Sensor Assembly
1
23
1170030067G
Indoor Motor
1
24
210737653
Indoor Motor Cover
1
25
210701903
Right Vertical Vane Supporter
1
26
210701902
Step Motor connector
1
27
210900129
Step Motor
1
28
210701906
Step Motor Supporter
1
29
210737091
Drainage Hose
1
30
1170020011
Vane Motor
1
31
210736813
In And Out Pipe Fixer
1
32
210901521B
Remote Controller
1
Not shown in Explosion view
33
210708230
Remote Controller supporter
1
34
211376144C
Indoor Carton
1
35
211376593
Left Foaming
1
36
211376594
Right Foaming
1
19
20
18
17
16
14
13
12
11
10
9
8
7
6
5
4
3
2
1
24
25
26
27
28
29
30
31
21
22
23
15
