No. Part No. Part Name Q’ty Remark
1 42011-000127 Grille 1
2 41207-000029 Top cover 1
3 92011-000657 Condenser 1
4 41203-000054 Outdoor motor supporter 1
5 22001-000049 Outdoor motor 1
6 42004-000107 Propeller fan 1
7 41205-000133 Left grille supporter 1
8 41206-000054 Front plate 1
9 42011-000088 Fan guard 1
10
92014-000542 Compressor and 1
11 92008-000209 4-way valve 1
12 92007-000950 4-way valve assembly 1
13 41202-000177 Base 1
14 41205-000077 Right plate 1
15 92008-000051 Two-way valve 1
16 41204-000018 Valve supporter 1
17 92008-000146 Three-way valve 1
18 41201-000029 Eelectronic Box Cover 1
42001-000035 Cable clamp 1
42001-000038 Cable clamp 1
20 11304-100004 Terminal 1
21 31201-001015 Outdoor PCB Assembly 1
22 22011-000002 Inductor 1
23 92007-001895 Capillary assembly 1
24 41208-000141 Partition plate 1
25 10104-100030
Pipe Temp. sensor and
outdoor Temp. sensor
1
26 10104-100034 Discharge Temp. sensor 1
27 A2005-000523 Base carton 1
28 A1201-009091 Cabinet carton 1
29 A1202-000031 Base foaming 1
30 41213-000023 Cover foaming 1
TCL Air Conditioner Service Manual
Not shown in
explosion view
19

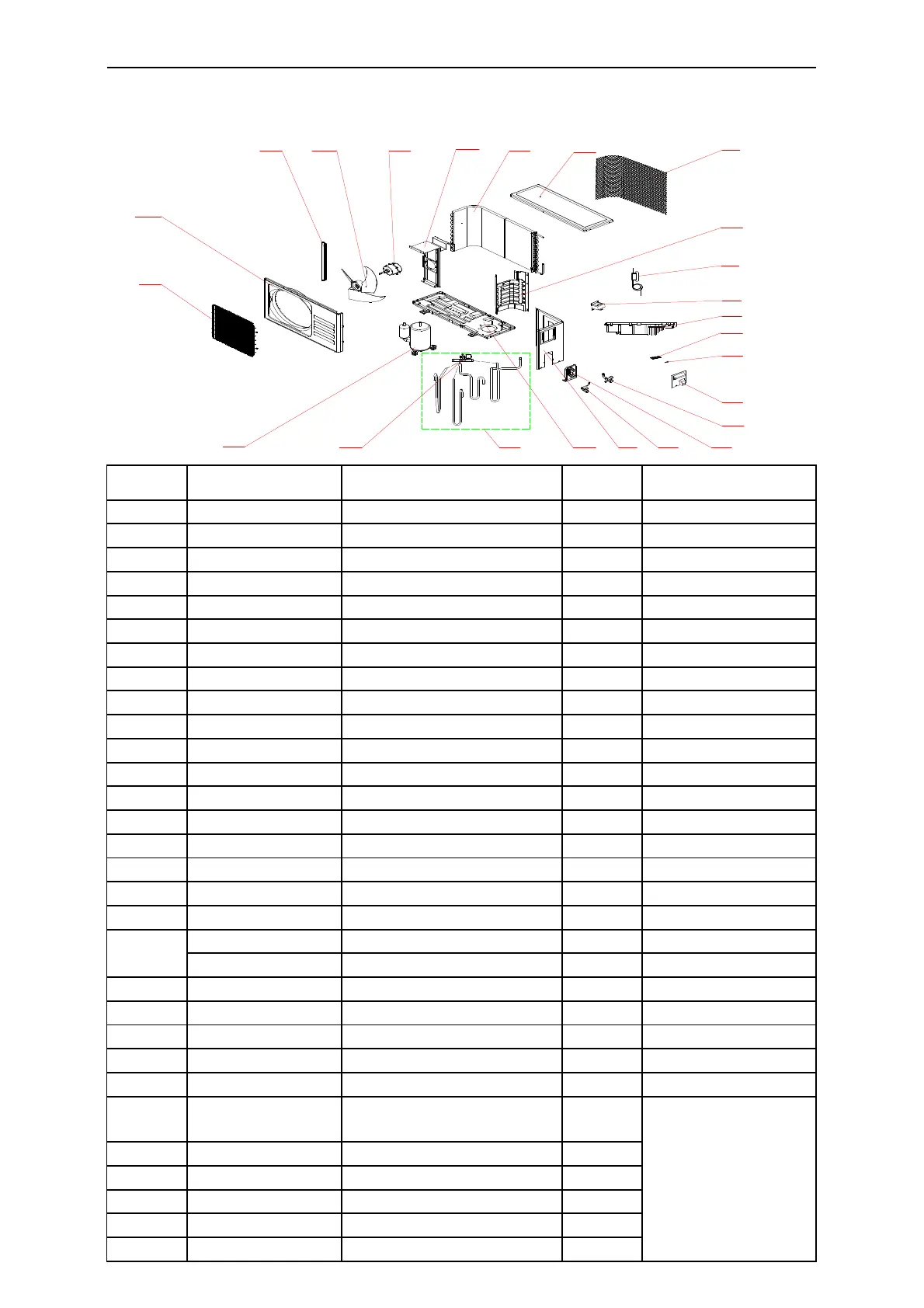

Outdoor Unit - TAC-09CHSD/XA31I
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
4
3
2
1
24
To Next Page
