No. Part No. Part Name Q’ty Remark
1 41106-001447 Front Panel 1
2 42008-000070 Air Filter 2
3 41106-002347 Face Frame 1
4 41105-000146 Electrical Box Cover 1
5 31102-000085 Display PCB 1
6 42003-000026 Display PCB Box 1
7 92011-003000 Evaporator 1
8 41108-000066 Screw Cover 2
9 42004-000040 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000262 Indoor Motor 1
12 41101-000242 In And Out Pipe Fixer 1
13 42003-000060 Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15 31101-000222 Main PCB 1
16 10502-100021 Transformer 1
17 42001-000103 Cable Clamp 1
18 22001-000313 Vane Motor 1
19 41199-003271 Base 1
20 41101-000042 Vertical Vane Assembly 2
21 41103-000103 Vane 1
22 41109-000042 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000495 Remote Controller 1
25 A1101-008440 Indoor Carton 1
26 A2006-000050 Left Foaming 1
27 A2006-000030 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view

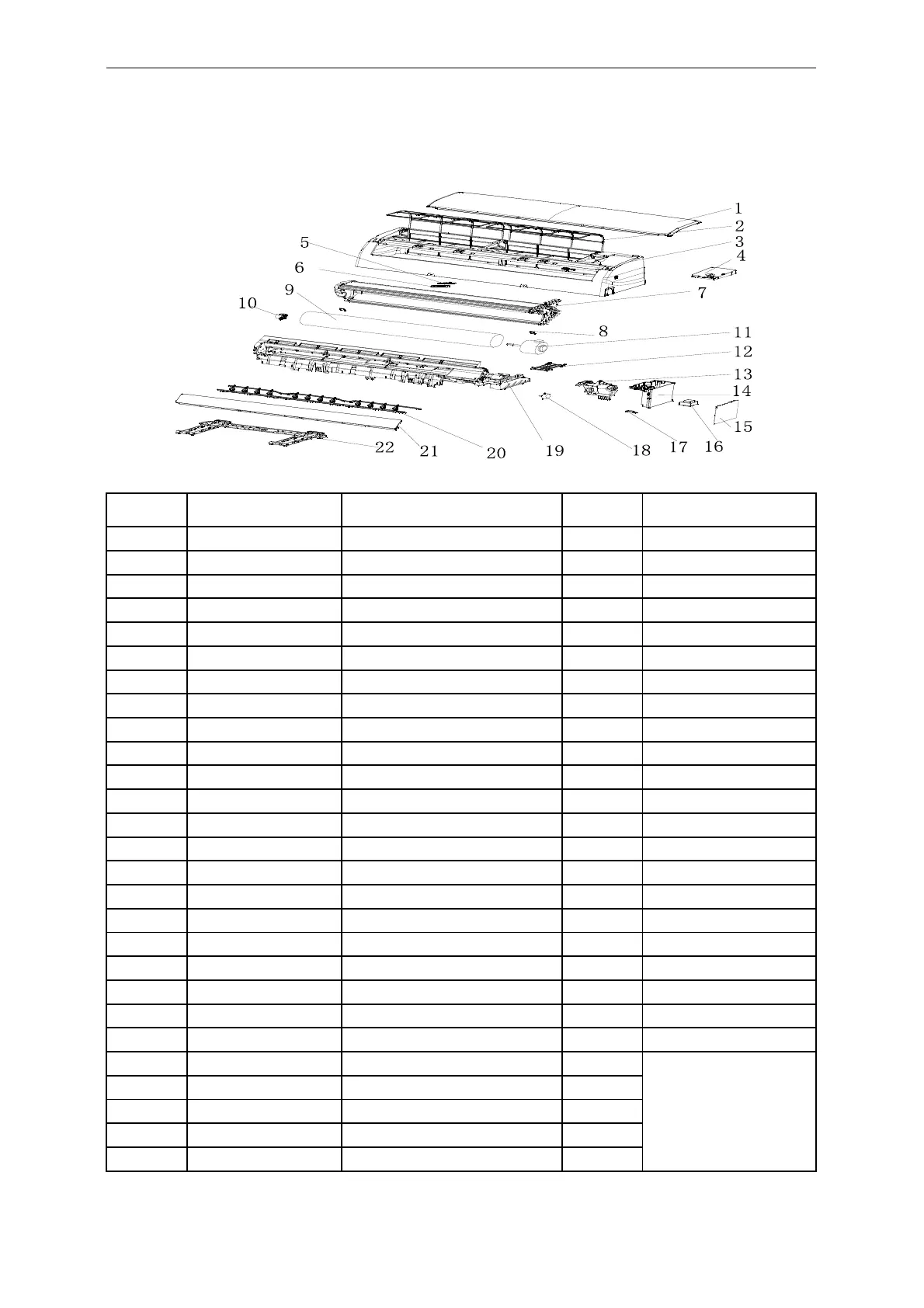

6. Explosion view and parts
Indoor Unit- TAC-09CHSD/XA31I
