ODU middle
separate plate and
base plate, uplift
front panel you can
take it out from unit.

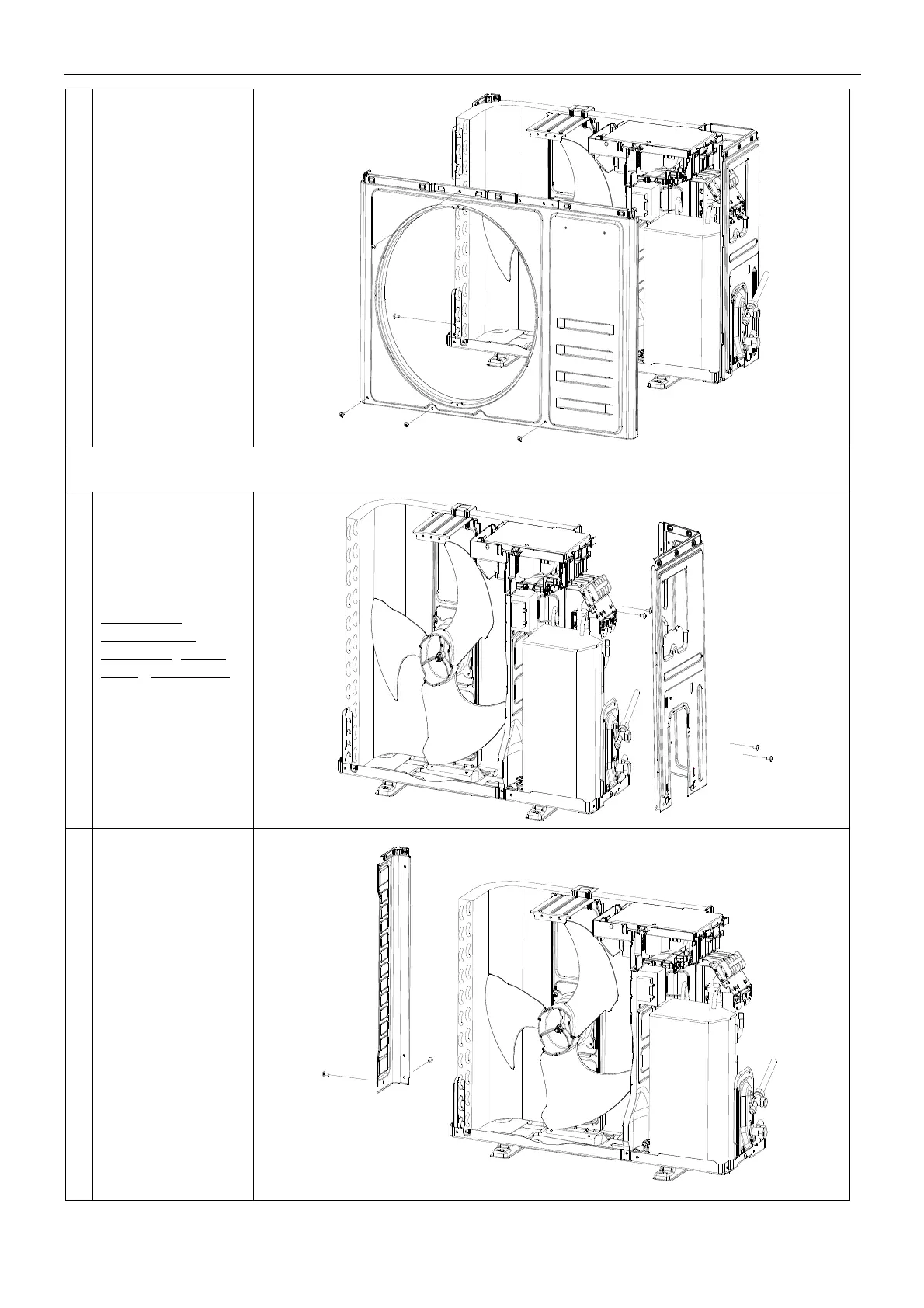

step3：Disassemble the Left and Right plate.
A
Unfix screws btw
Right Plate and the
Electric Box
assembly, Valve
Plate , Base Plate,
then you can take
the Right plate out.
B
Unfix screws btw
Left Plate, Base
plate and Condenser
plate, you can take
the left plate out.
