37



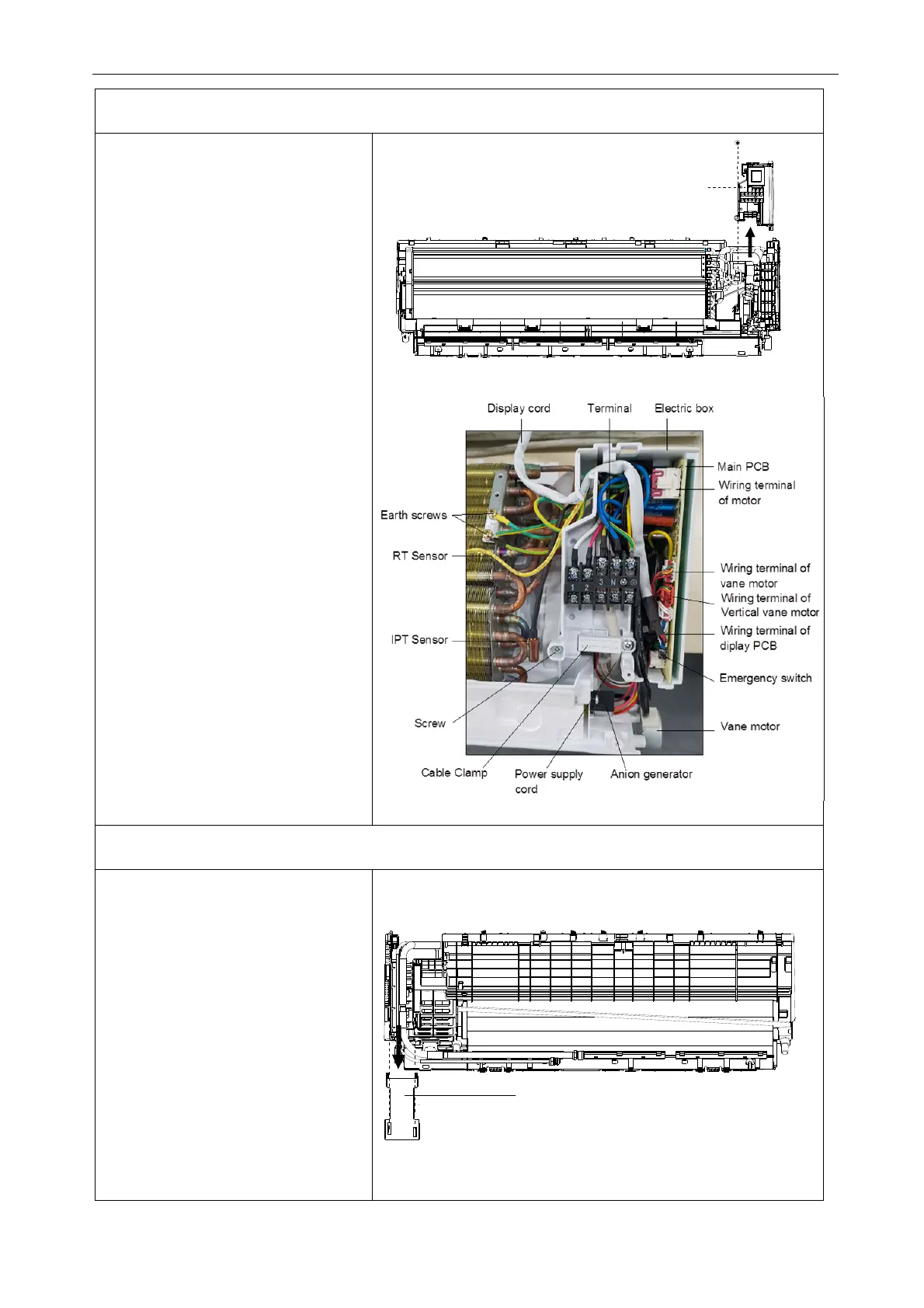

7.Disassemblytheelectriccontrolbox.
A.RemovetheRT&IPToutfrom
evaporator;

B. Unscrew all the earth ground
wiringsontheevaporator.

C. Take all the connectors out from
PCB.

D.Unfixonescrewofthecontrolbox
with unit BASE FRAME, and take the
controlboxoutfromunit.






Note: The right picture for your
reference only, for the exact model
the wiring connection may have a
little difference.



电控盒




8.RemovethePIPECOVER
Loosing the lower edge of the PIPE
COVERfromBASEFRAME,andtakethe
COVERoutfromunit.





卡扣固定
压管板



Electriccontrolbox
Pipe Cover
CoverLocker
