TCL Air Conditioner Service Manual
41

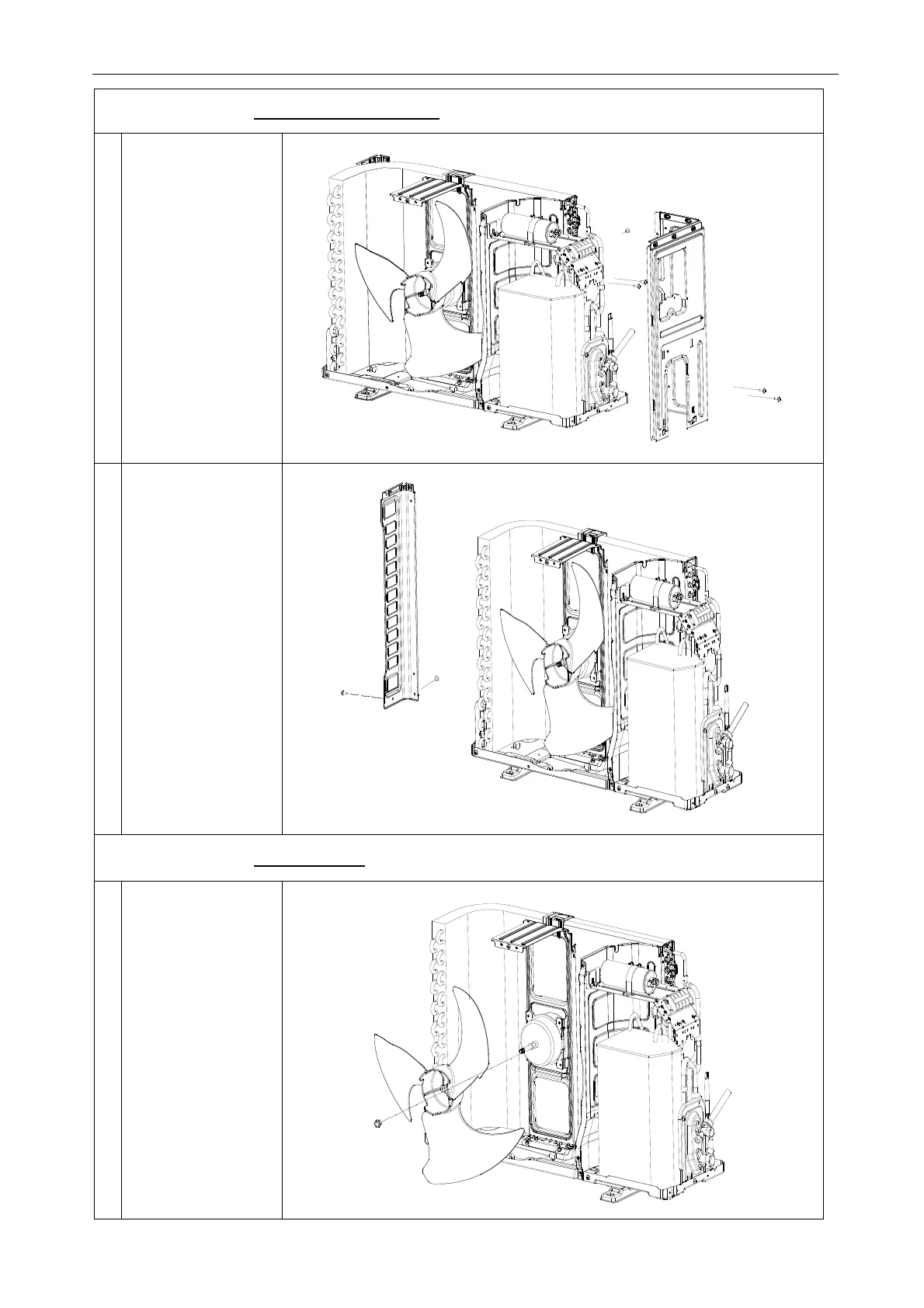

3：Disassemble the Left and Right side Plate.
A
Unfix screws btw
Right Plate and the
Electric Box
assembly, Valve
Plate , Base Plate,
then you can take
the Right plate out.
B
Unfix screws btw left
plate, base plate and
condenser plate, you
can take the left
plate out.
4：Disassemble the Axis Fan Blade
A
Unscrew the fan
blade nut, and take
the blade out.
