TCL Air Conditioner Service Manual



Unfix the screw btw

separate plate and

unit, and take it out.

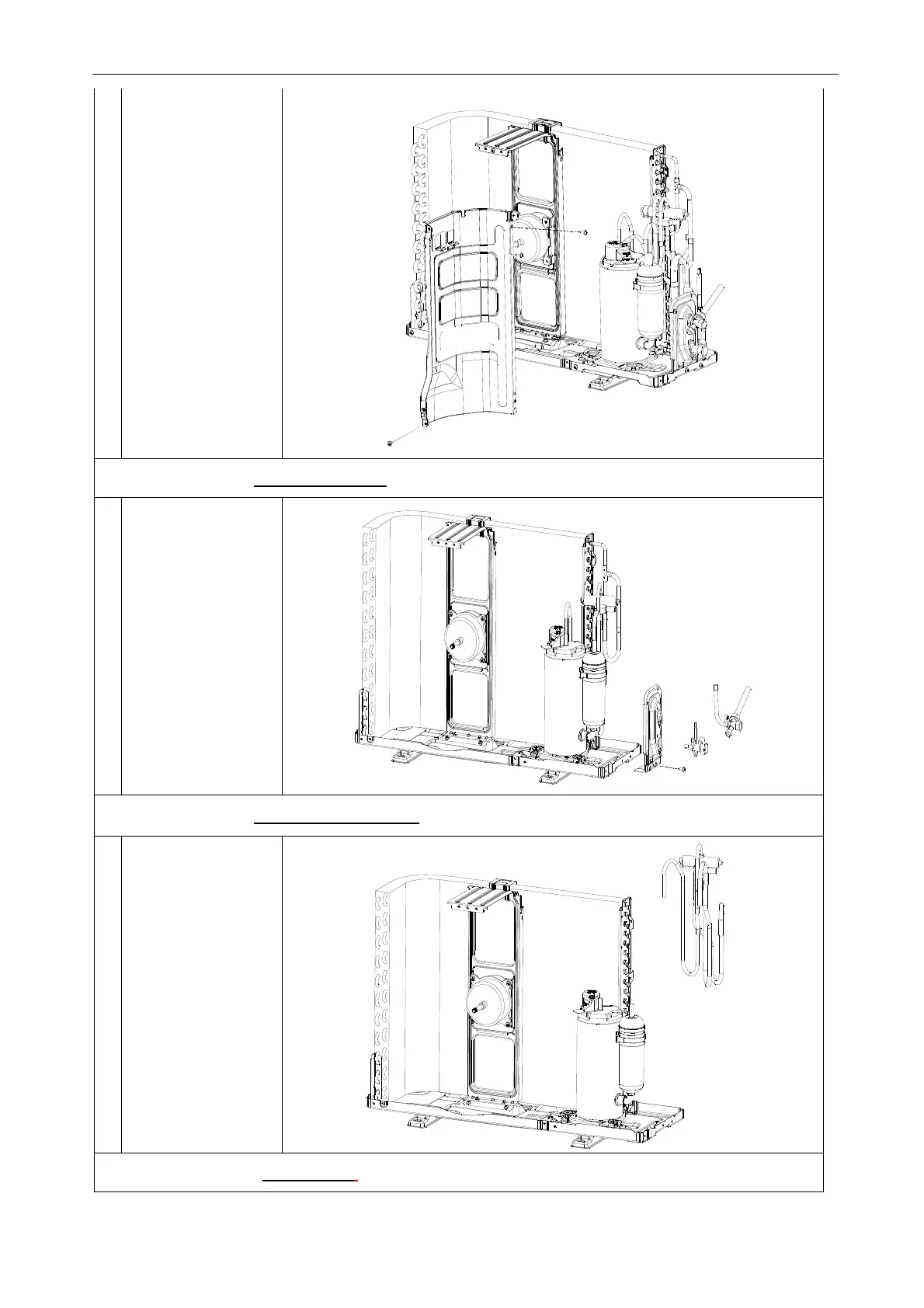

8：Disassemble the 2 and 3-way Valve

Unfix screw btw

Valve plate and

base, you can take

the 2-way and 3-way

valve out by welding.

Note:

1). The welding can

only place while no

gas in the unit.

2). Pay attention to

the fire to prevent

any injury.

9：Disassemble the 4-way Valve Assembly

Take the 4-way

valve out from

system by welding.

Make sure no hurt to

the compressor and

nameplate, etc.

10：Disassemble the Compressor.
