TCL Air Conditioner Service Manual
48
Resistance at 25: 5 kΩ.
TH1: indoor room temperature sensor and outside air temperature sensor
TH2: indoor exchange temperature sensor and outside exchange
temperature sensor

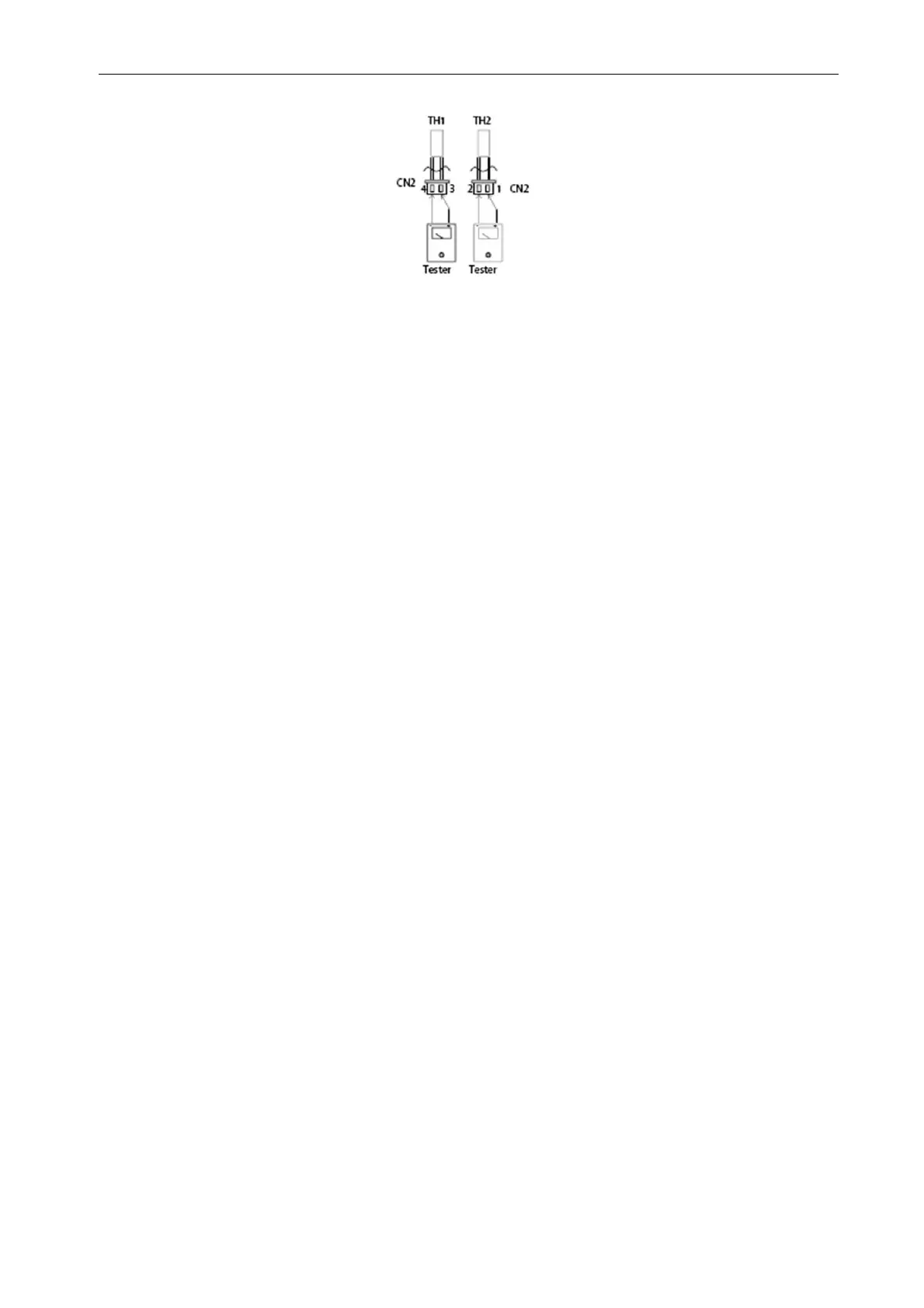

Before measuring resistance, disconnect connectors as
shown above.
