TCL TFC-24HRA - WIRING DIAGRAMS; TFC-24 HRA;TOC-24 HNA Wiring Diagram; Indoor Unit Wiring Details

Air Conditioner Service Manual


12



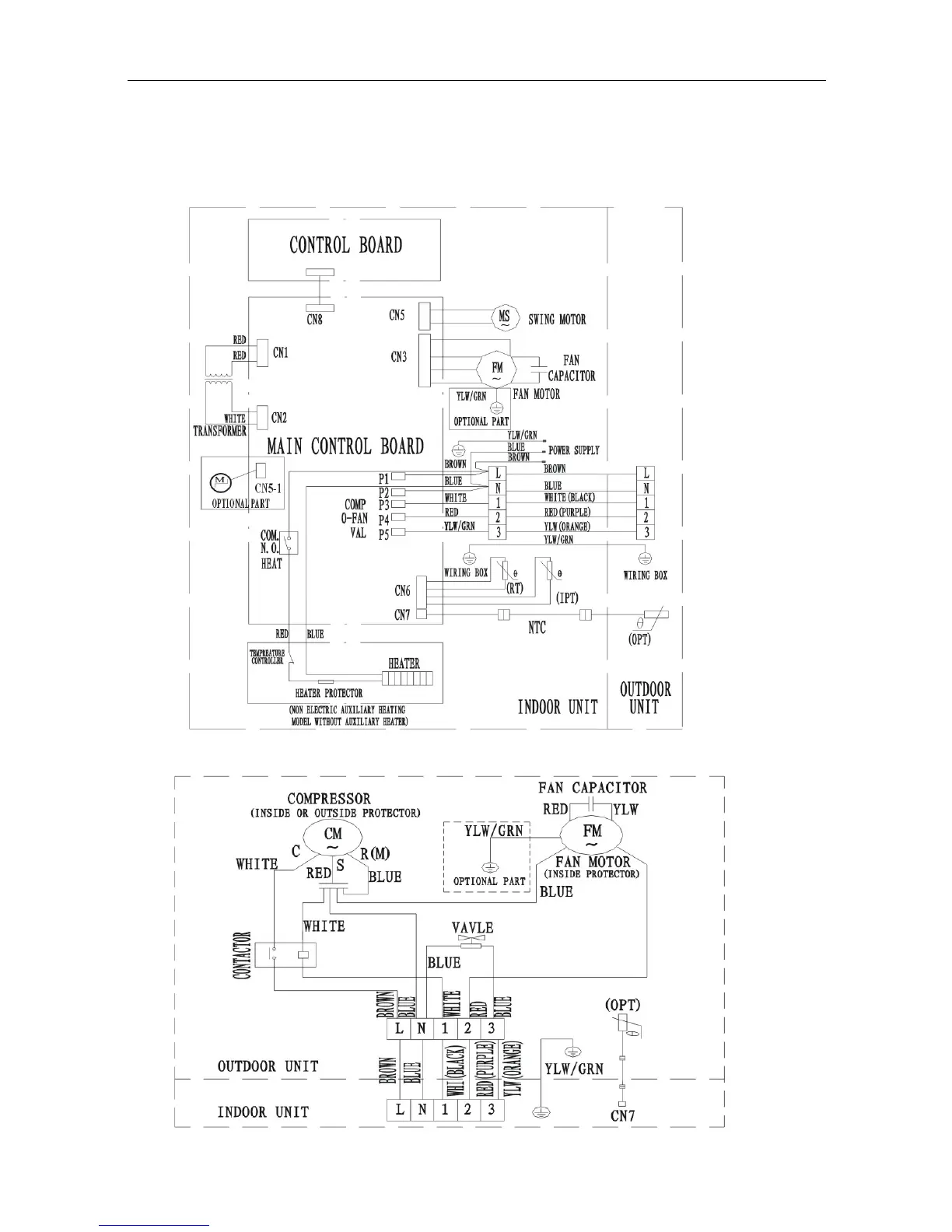

5. WIRING DIAGRAM
MODEL: TFC-24HRA/TOC-24HNA
INDOOR UNIT:



































OUTDOOR UNIT
