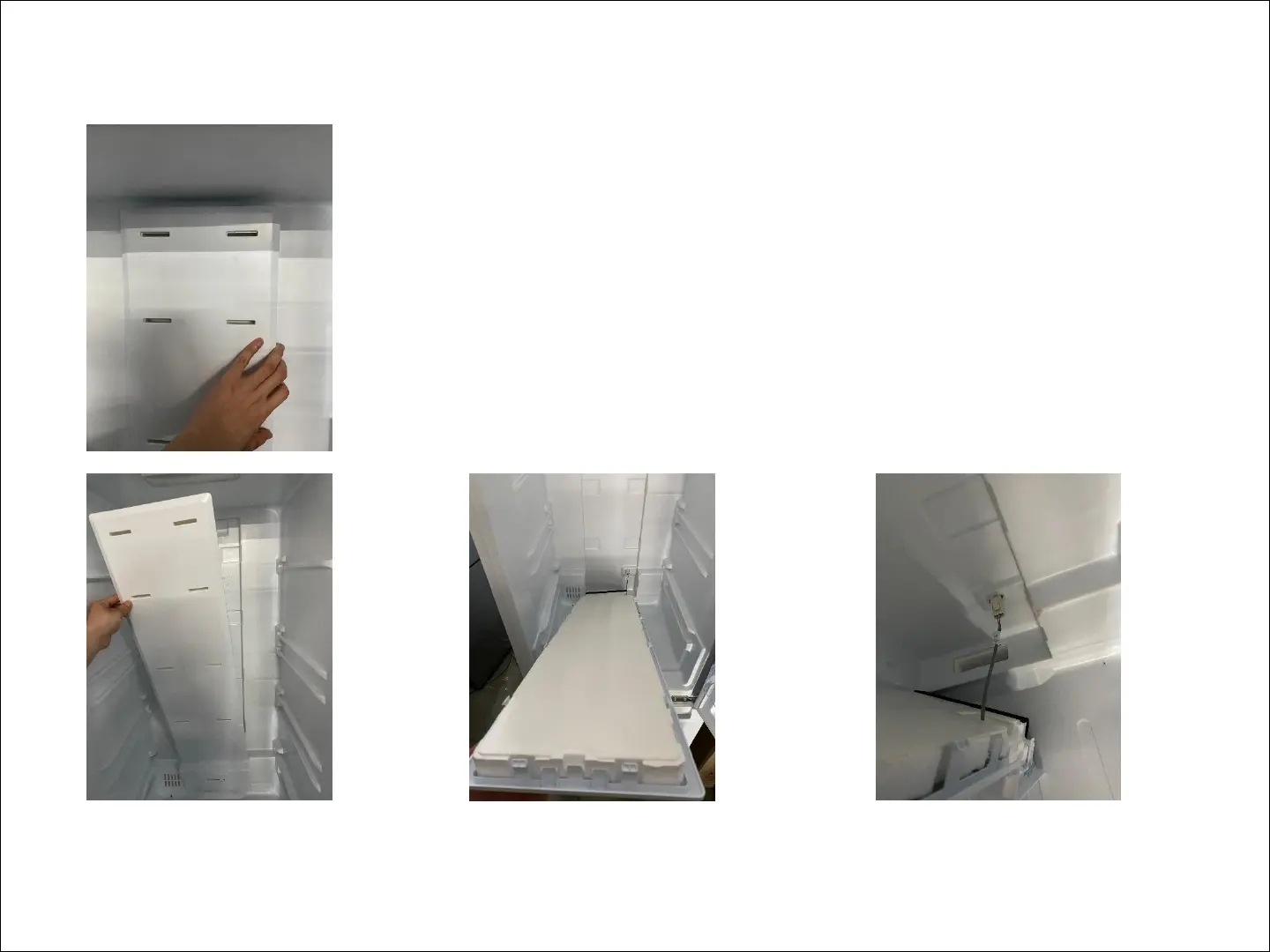

R
emoval o
f refrigerating air duct assembly
S
tep I: Move the refrigerating air duct assembly to one side
(such as the lef
t side) and then break it open;
S
tep II: From top to bottom, r
emove the refrigerating air duct assembly from the body of the r
efrigerator
,
as shown in the figure, and finally unplug th
e plug-in terminal
25
27
Table of Contents
Contents
2
Product Introduction
3
Product Appearance Structure and Name of each Part
3
Product Features
6
Exploded View of Product Structure
7
Detailed List of Refrigerator Accessories
8
Product Operation Rules
9
Power off Memory
9
Manual Temperature Regulation Function
9
Operating Instructions for 275W Series Products (External Display)
10
Child Lock Function
10
Power Cool Function
11
Smart Function
11
Energy Saving Function
11
Door Alarm
11
Damper Regulating Pick
12
Regulation of Temperature Inside the Refrigerating Chamber
12
Technical Parameters
13
Refrigeration System and Electrical Control
14
Diagram of Refrigeration System
14
Physical Diagram of Refrigeration System
15
Schematic Diagram for Welding of Pipelines in Compressor Compartment
16
Electrical Control Circuit Diagram
17
Composition of Electrical Control System
18
Control of Components
19
Compressor
19
Light
19
Fan
19
Failure Running Program
20
Maintenance Guide
21
Composition of the Top Light Assembly (Internal Display)
22
Composition of the Top Light Assembly (External Display)
23
Removal of the Top Light
24
Top Light Installation
25
Removal of Refrigerating Air Duct Assembly
26
Installation of Refrigerating Air Duct Assembly
27
Removal and Installation of Freezing Air Duct Assembly
28
The Compressor Does Not Work
29
Excessive Noise
30
The Compressor Does Not Stop for a Long Time
31
Other manuals for TCL TRF-275W
Disassembly Manual
9 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the TCL TRF-275W and is the answer not in the manual?
Ask a question
TCL TRF-275W Specifications
General
Brand
TCL
Model
TRF-275W
Category
Refrigerator
