Exhaust pipe and evaporation
coil inlet (copper-steel)
Evaporation coil outlet and dew
prevention pipe inlet (steel-steel)
Dew prevention pipe outlet and
condenser inlet (steel-steel)
Condenser outlet and dry
filter inlet (steel-copper)
Air return pipe outlet and air return
transition pipe inlet (copper-copper)
Process pipe connectors
(copper-copper)
Air return transition pipe outlet and
air suction pipe (copper-copper)
Dry filter outlet and capillary inlet
(copper-copper)

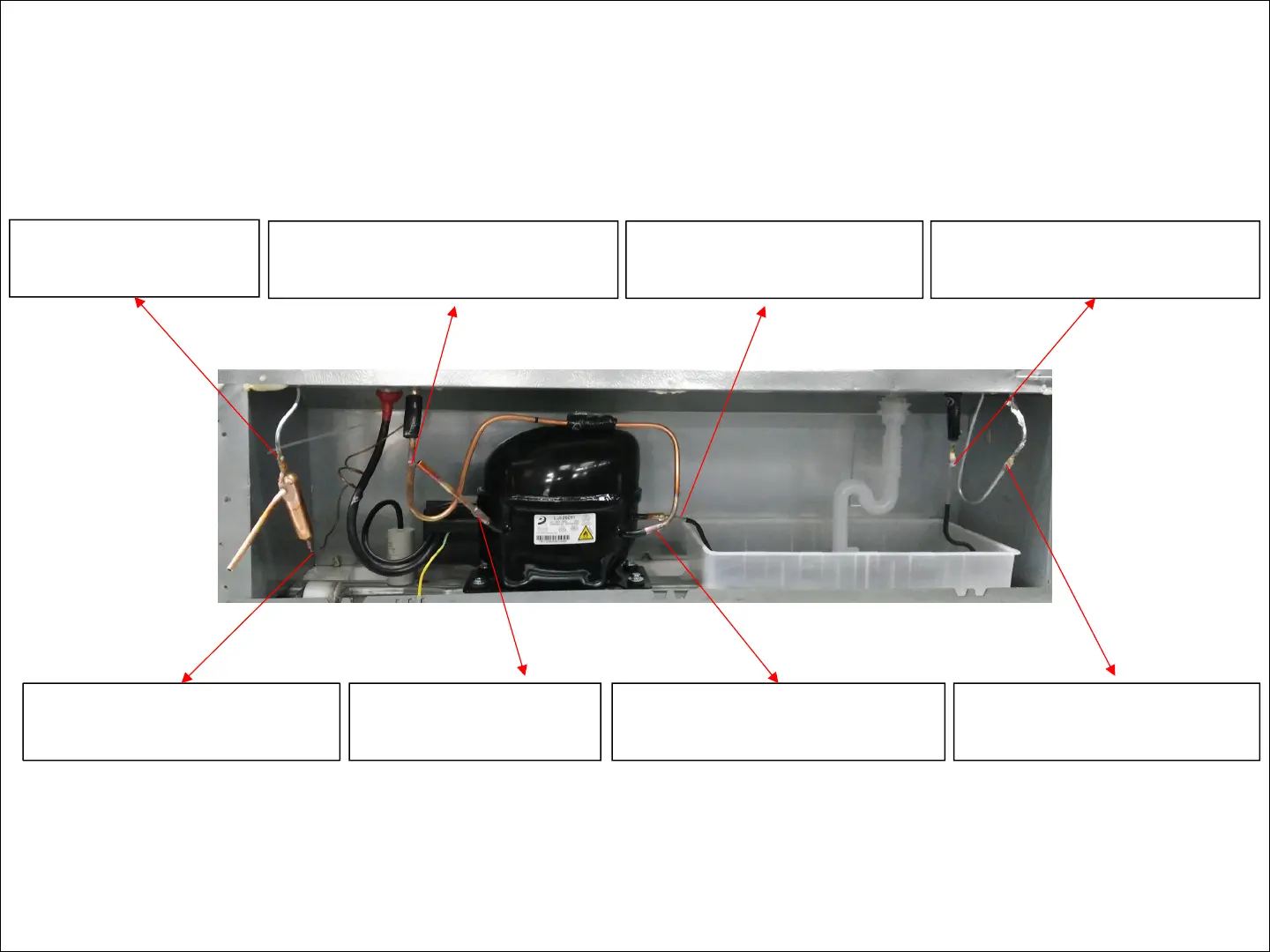

Schematic diagram of welding the pipeline for compressor chamber
