8. LOAD HANDLING SYSTEM
- 137 -

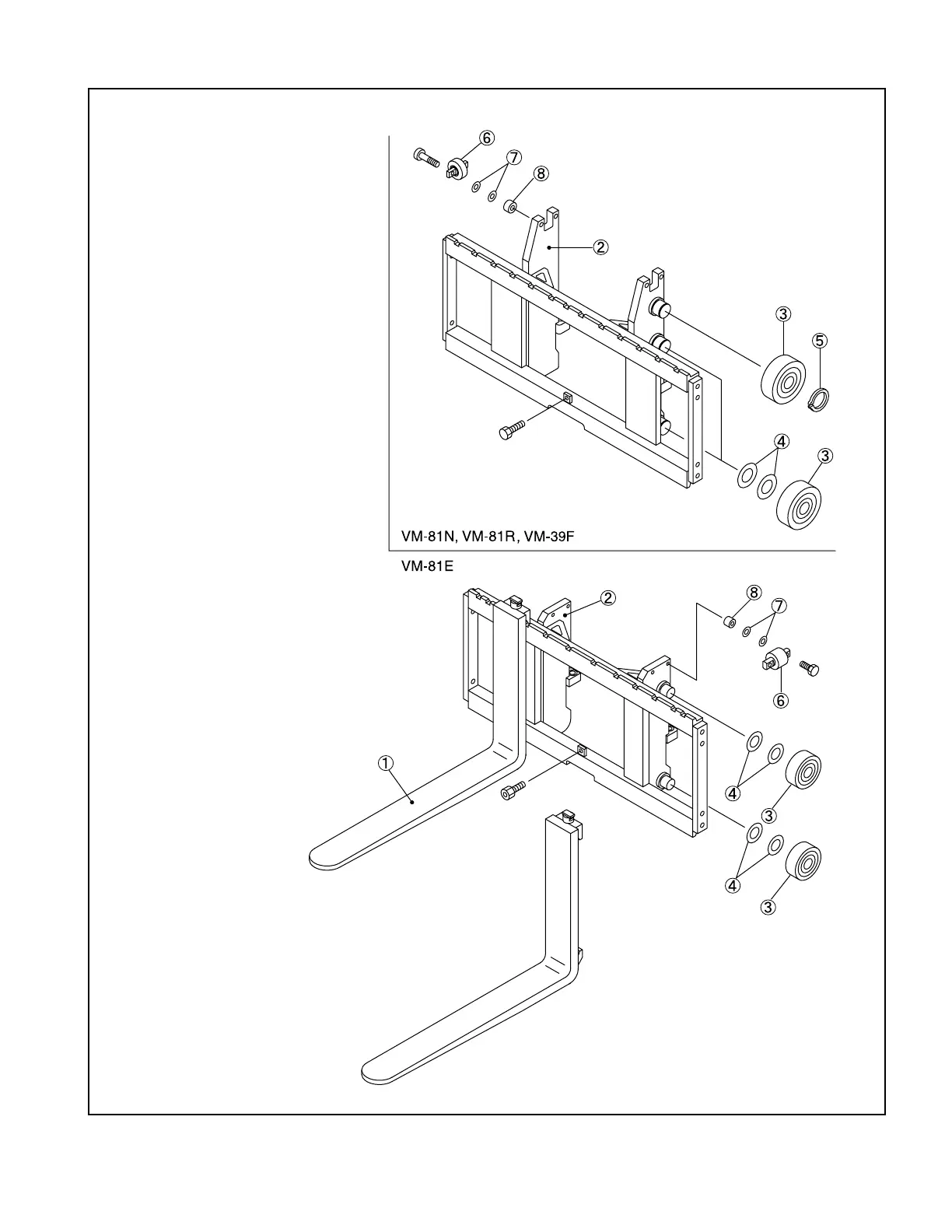

Fig. 8.4
Carriage
1. FORK
2. CARRIAGE
3. END ROLLER
4. SHIM
5. SNAP RING
6. SIDE ROLLER
7. SHIM
8. SPACER
