6. STEERING SYSTEM
- 90 -
6.2 MAINTENANCE
6.2.1 MAINTENANCE FOR ACTUATOR
(1) Replacing the motor
①

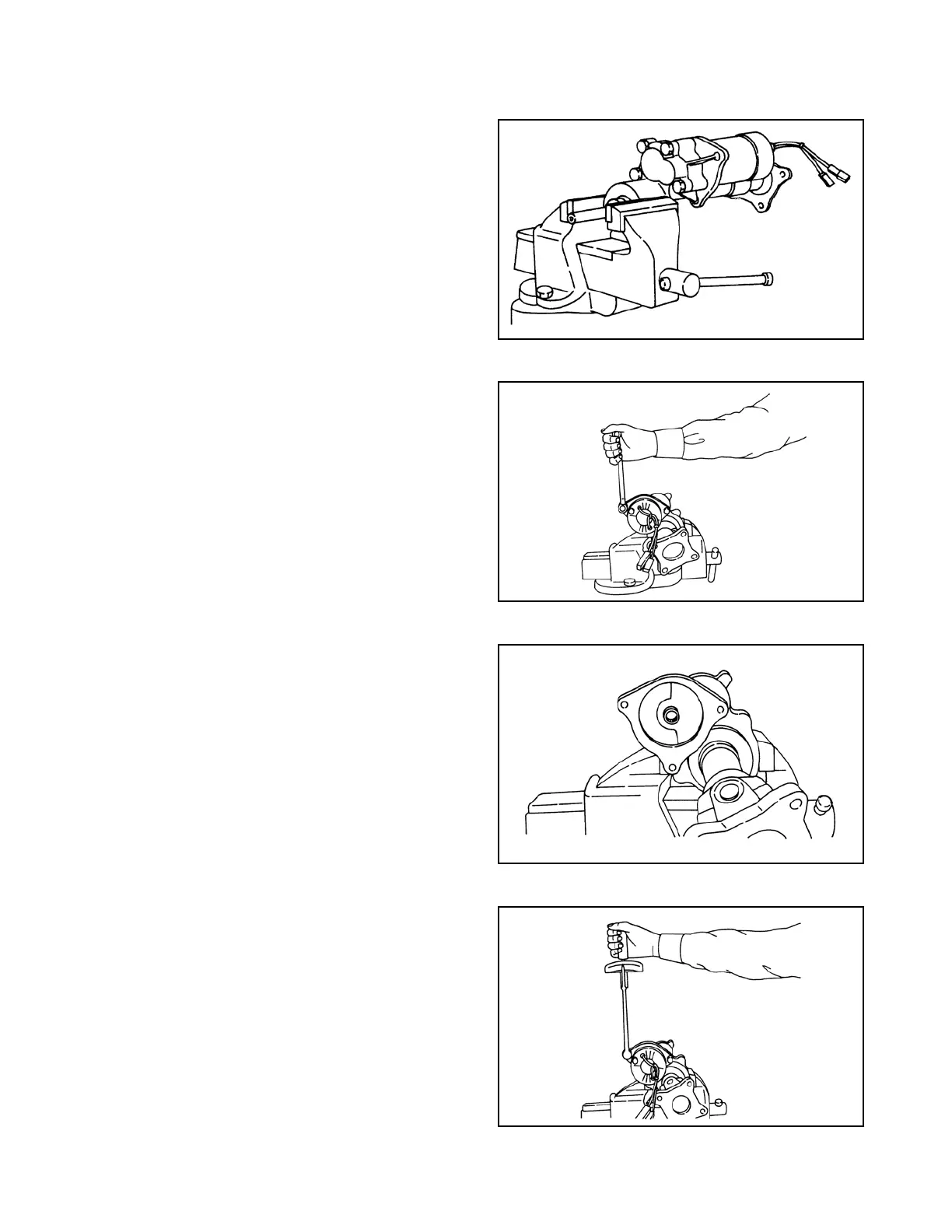

As shown in Fig. 6.11, securely hold the
actuator assembly by a vise.
Note: Be sure to hold it in a lying position.
Fig. 6.11
Fig. 6.12
Fig. 6.13
Fig. 6.14
②
Remove the motor securing bolts, then remove
the motor.
Note: Do not give a strong shock to the motor.
③
Remove the packing from the motor fitting
surface.
④
Apply grease to the joint. Install the motor with
a new packing.
Tightening torque: 18.6 to 30.4 N-m
{1.9 to 3.1 kgf-m}
[13.7 to 22.4 lbf-ft]
To Next Page
