8. LOAD HANDLING SYSTEM
- 145 -

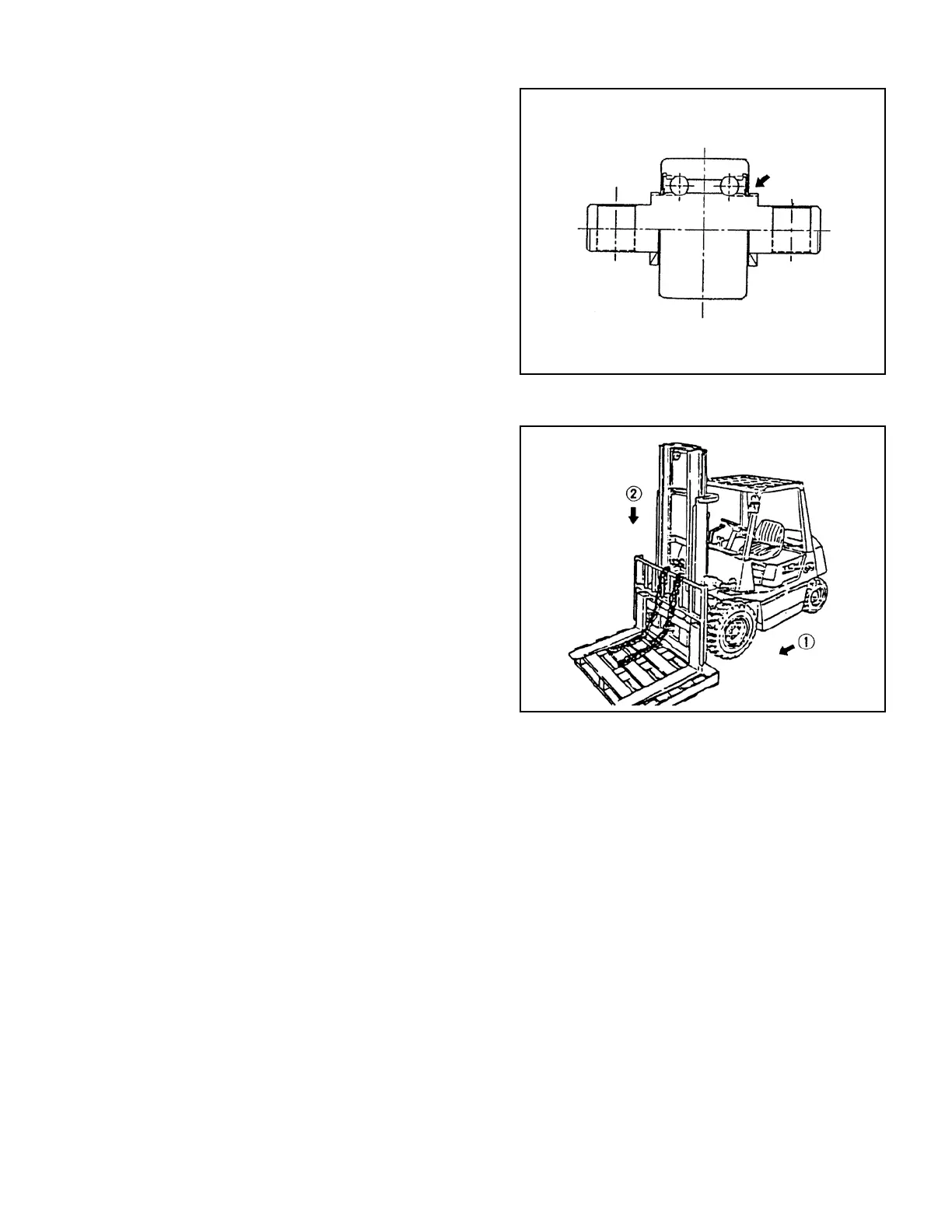

Fig. 8.16 Side Roller
Fig. 8.17
(8) Extend the lift cylinder rod so that the inner
channel bottom projects the upper section of the
carriage.
(9) Bring the truck close to the carriage side so that
each roller enters inside of the outer channel.
(10) Contract the lift cylinder rod to lower the inner
channels gradually. Place each roller of the
carriage into the inner channels.
(11) Engage the chain with the sheave and connect
the chain and anchor through the joint link.
(12) Adjust the height of the carriage. (See 8.2.2.)
Groove for balls
