1. BATTERY AND CHARGER
- 6 -
(2) Diode
The diode, installed on the speed controller, is a 3-phase, full-wave rectication type which converts
AC to DC.
The current rectied by the diode ows through the fuse F6 to charge the battery.
FUSE (130A)
(FB25-7LB, FB25-7V: 200A)
CHARGING DIODE
POSITIVE
TERMINAL
NEGATIVE TERMINAL

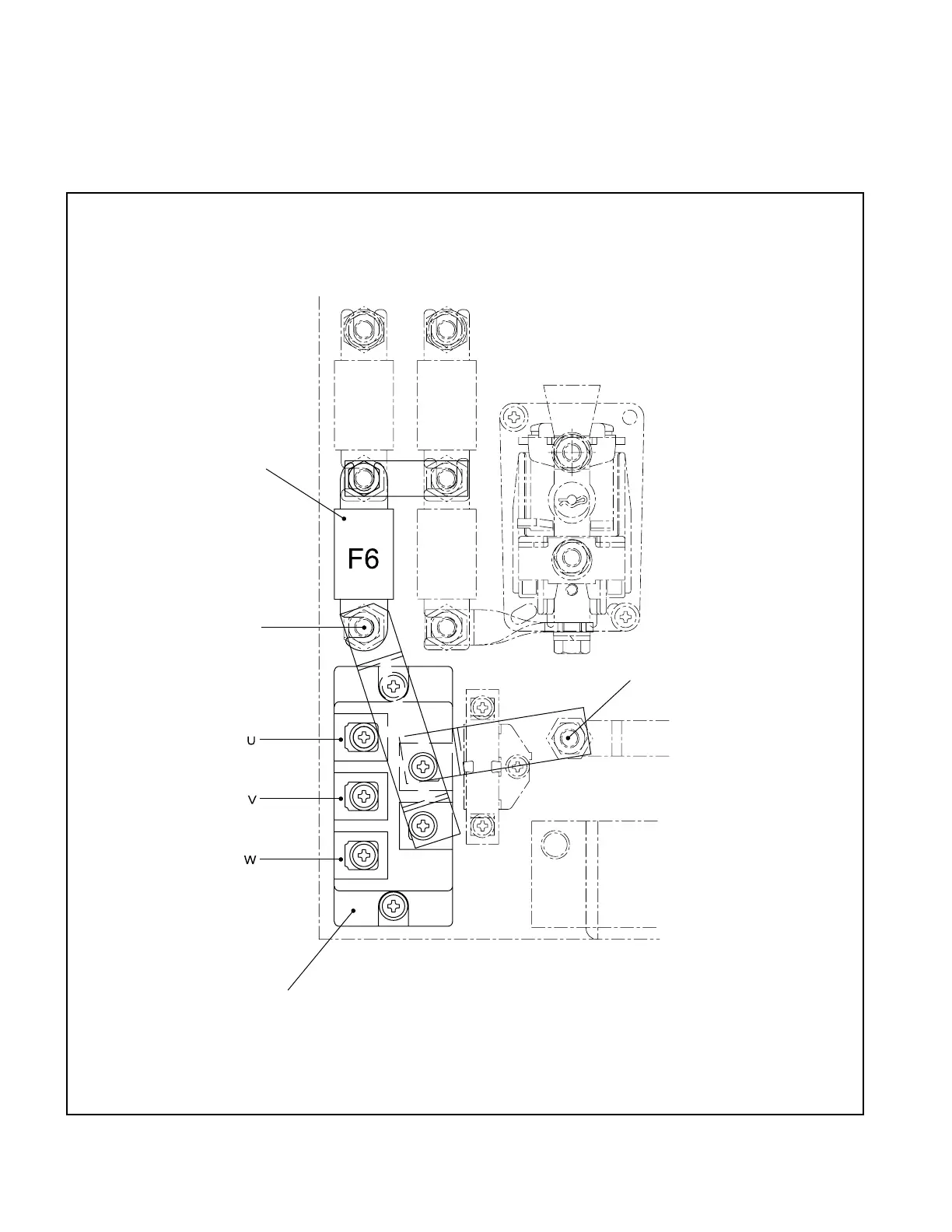

Fig. 1.6 Diode
