MP01200E00 V_1.0
27
“+” “-“: DC side input “U” “W”: DC side output
“PE”: protective conductor connection

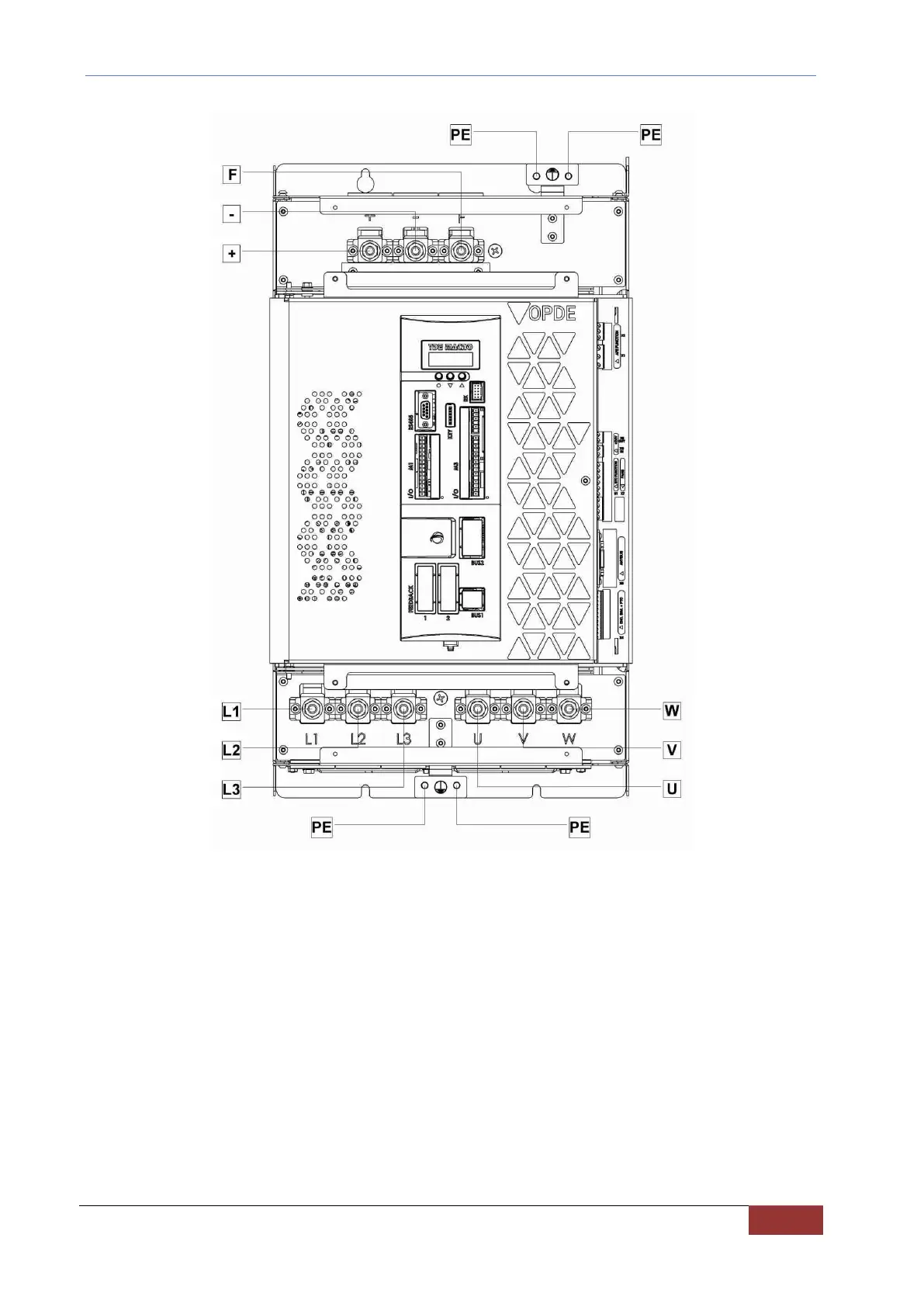

FIG. 13 – Power connections OPDE SD 70, 90, 110, 150 (CASE 1C)
