TDE MACNO OPEN DRIVE - Page 46

44
Istruzioni per l’installazione / Installation instructions
Rev. 3.1 - 29.04.09 - IT (originali) / EN (Translations from original instructions)
Open Drive - Mod. 03A ÷ 460A
S.p.A.
INSTALLAZIONE / INSTALLATION
5

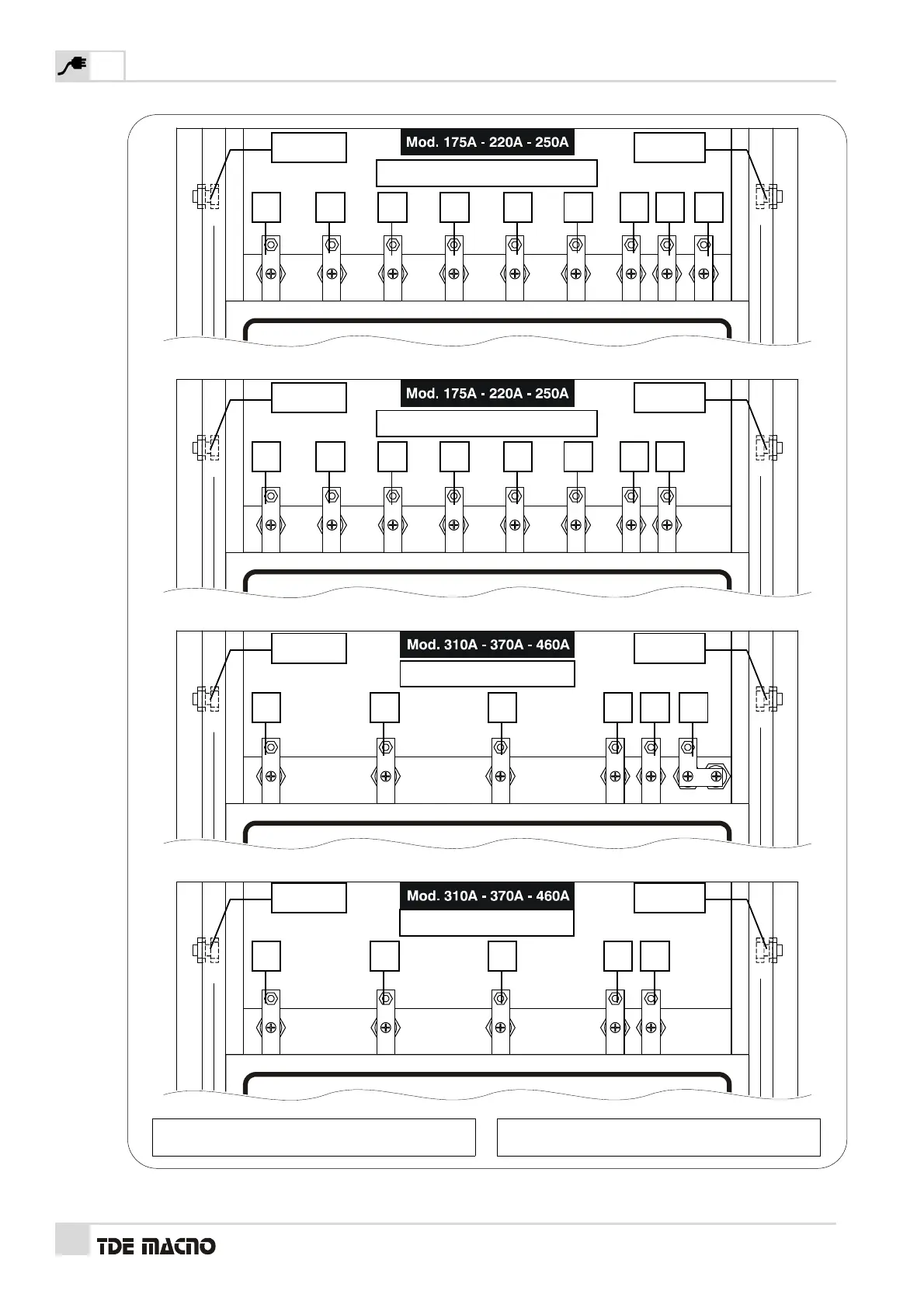

FIG. 10D (Collegamenti: potenza e controllo / Connections: Power and control)
- U V W + F
SHIELD SHIELD
+ U V W -
SHIELD SHIELD
- L1 U L2 V L3 W +
AC + freno / AC + Brake
SHIELD SHIELD
- L1 U L2 V L3 W + F
SHIELD SHIELD
AC senza freno / AC brakeless
DC + freno / DC + Brake
DC senza freno / DC brakeless
L1-L2-L3: ingresso linea - U-V-W: uscita motore L1-L2-L3: line input - U-V-W: motor output
