TDE MACNO OPEN DRIVE - Logic Connections Overview

45
Open Drive - Mod. 03A ÷ 460A
Istruzioni per l’installazione / Installation instructions
Rev. 3.1 - 29.04.09 - IT (originali) / EN (Translations from original instructions)
S.p.A.
5.2.10- COLLEGAMENTI LOGICI

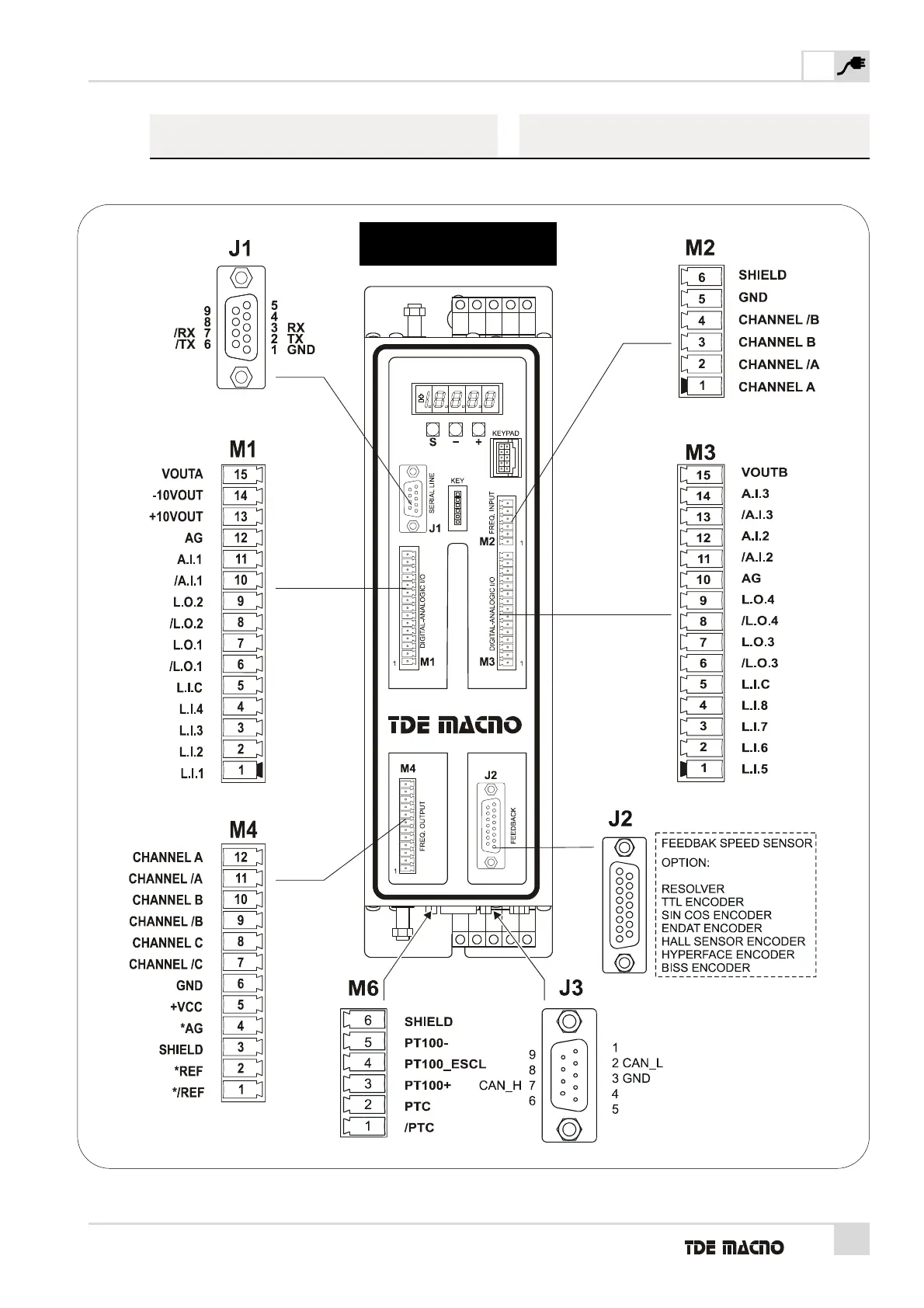

FIG. 11A (Collegamenti logici / Logic connections)
Mod. 03A - 07A - 12A - 15A
22A - 32A - 40A - 48A - 60A
5.2.10- LOGIC CONNECTIONS
VISTA ANTERIORE
FRONT VIEW
