TDE MACNO OPEN DRIVE - Page 48

46
Istruzioni per l’installazione / Installation instructions
Rev. 3.1 - 29.04.09 - IT (originali) / EN (Translations from original instructions)
Open Drive - Mod. 03A ÷ 460A
S.p.A.
VISTA ANTERIORE / FRONT VIEW

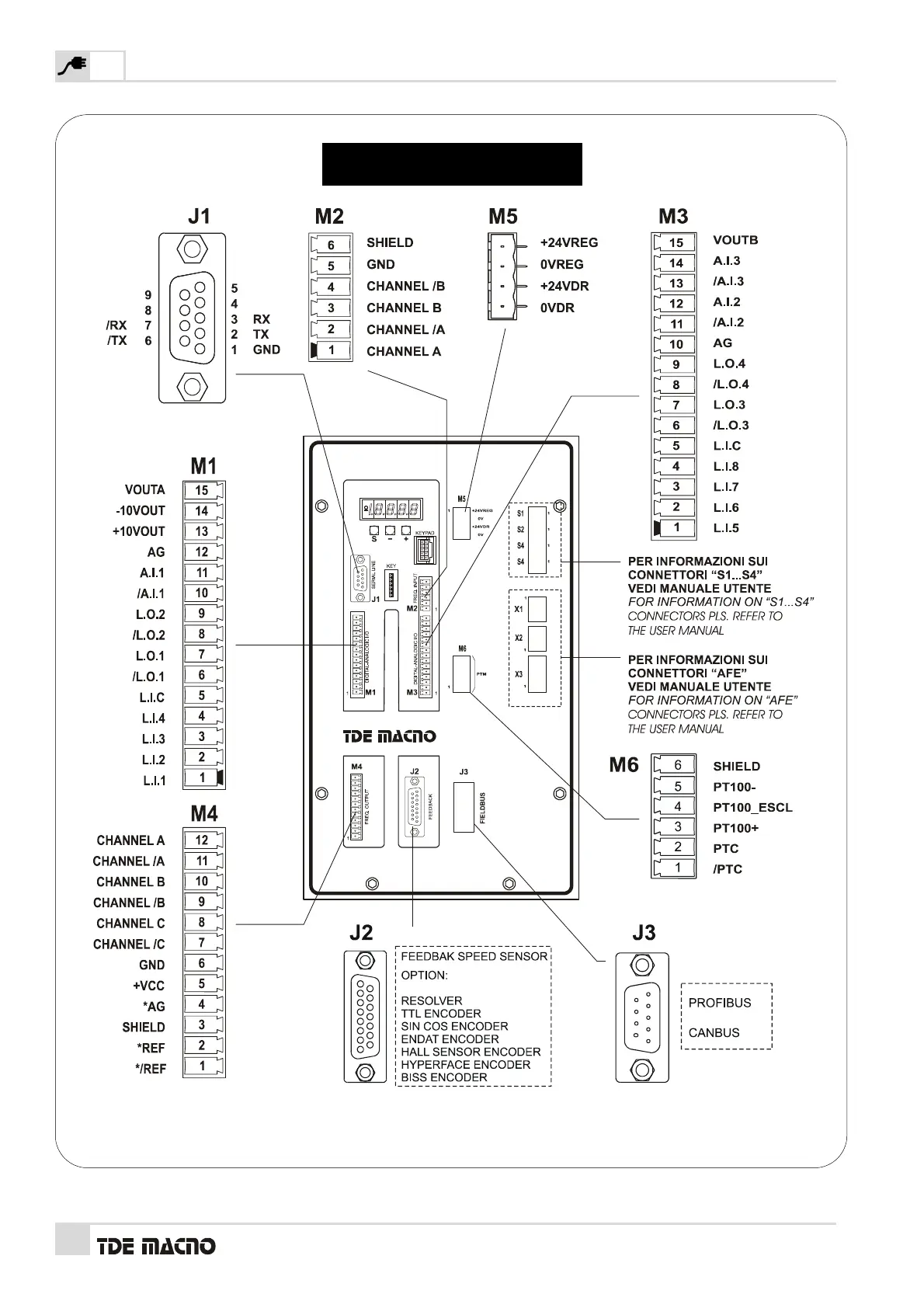

FIG. 11B (Collegamenti logici / Logic connections)
Mod. 70A - 90A - 110A - 150A - 175A
220A - 250A - 310A - 370 - 460A
INSTALLAZIONE / INSTALLATION
5
