71

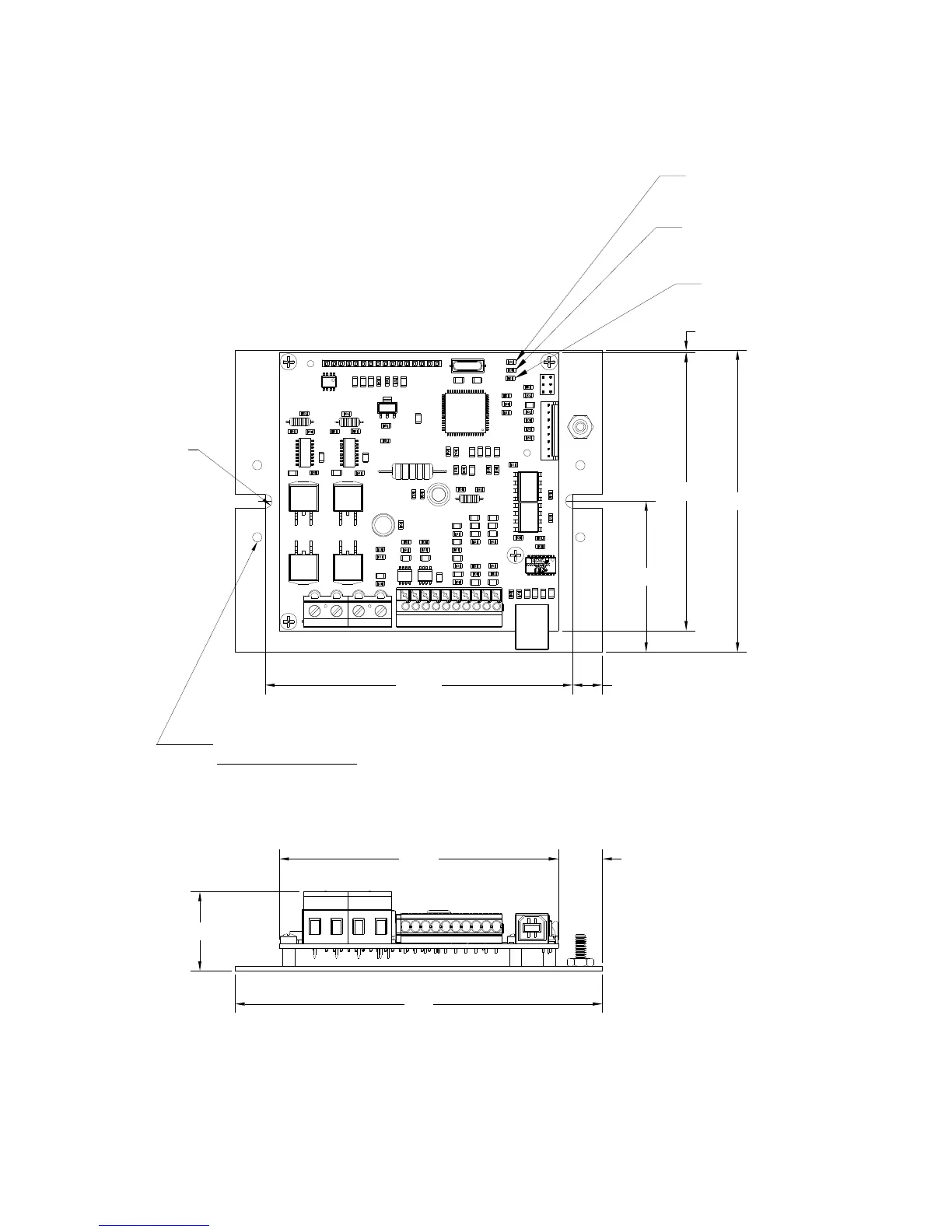

TC-720 OEM Mechanical Package Drawing
30.5 MAX
127
15.2496.52
52.4
10.31
96.52
104.8
0.79
Ø4.78, TYP
106.38
4X HOLES FOR DIN RAIL ADAPTOR
OPTIONAL ADDITIONS
DIN RAIL ADAPTOR: PHOENIX CONTACT PART NUMBER 1201578
DIN RAIL ADAPTOR SCREWS: 4X M3 SELF TAPPING
DIN RAIL: USER SPECIFIED
JP7 JP21 2 3 4 10 9 8 7 6 5 4 3 2 1
FLASHING GREEN LED
(INDICATES CONTROLLER IS
RECEIVING POWER)
USB LED, WHITE
ALARM LED, FLASHING
ORANGE ONLY IF ALARM
CONDITION EXISTS
NOTE: All dimensions are in mm
