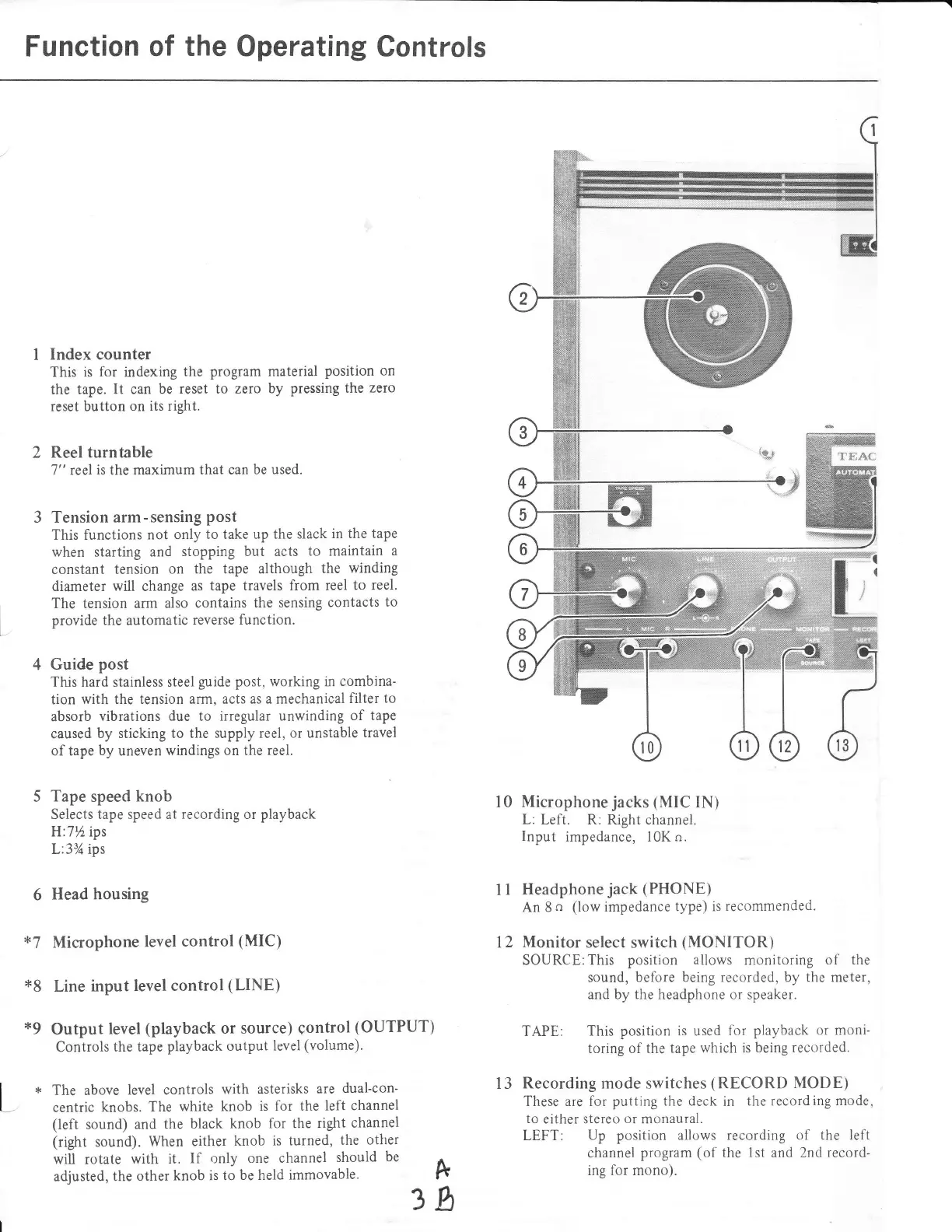

Function
of
the
Operating
Gontrols
Index counter
This is for indexing
the
program
material
position
on
the tape.
It
can
be
reset to zero
by
pressing the
zero
reset
button
on its right.
Reel turntable
7" reel
is
the maximum
that can
be used.
Tension arm
- sensing
post
This functions
not only
to take up the
slack
in the tape
when
starting and
stopping but acts
to maintain
a
constant tension
on
the tape although
the
winding
diameter will change
as
tape travels from
reel to reel.
The tension arm
also contains
the sensing
contacts
to
provide
the automatic
reverse function.
Guide
post
This hard stainless steel
guide post, working in combina-
tion
with the tension arm, acts as a mechanic-al
filter to
absorb
vibrations
due
to
irregular unwinding
of tape
caused
by sticking to the
supply
reel,
or
unstable
travel
of tape
by
uneven
windings on the reel.
Tape
speed
knob
Selects tape speed at recording or playback
H:TLAips
L:33/+ ips
10
Microphone
jacks
(MIC
IN)
L: Left. R: Right channel.
Input
impedance, 10K
o.
6
Head housing
*7
Microphone
level
control
(MIC)
Line
input
level control
(LINE)
Output
level
(playback
or source)
control
(OUTPUT)
Controls
the tape
playback output
level
(volume).
The above
level controls
with
asterisks are
dual-con-
centric
knobs.
The
white knob
is for the
left channel
(left
sound)
and
the black
knob
for the
right channel
(right
sound).
When
either
knob
is turned,
the
other
will rotate
with
it.
If only
one channel
should
be
adjusted,
the
other
knob is to
be held
immovable.
Headphone
jack
(PHONE)
An
8
o (low
impedance
type) is
recommended.
Monitor
select switch
(MONITOR)
SOURCE:This position
allows
monitoring of
the
sound, before being recorded, by
the
meter,
and by the headphone or speaker.
TAPE:
This position is used
for
playback
or moni-
toring of the
tape which is
being recorded.
Recording mode switches
(RECORD
MODE)
These are for
putting the deck
in
the recording
mode,
to
either stereo
or
monaural.
LEFT:
Up position allows recording of the left
channel
program (of the
1 st and 2nd
record-
ing for mono).
ll
l2
{€g
*9
L:*
A
3h
l3
