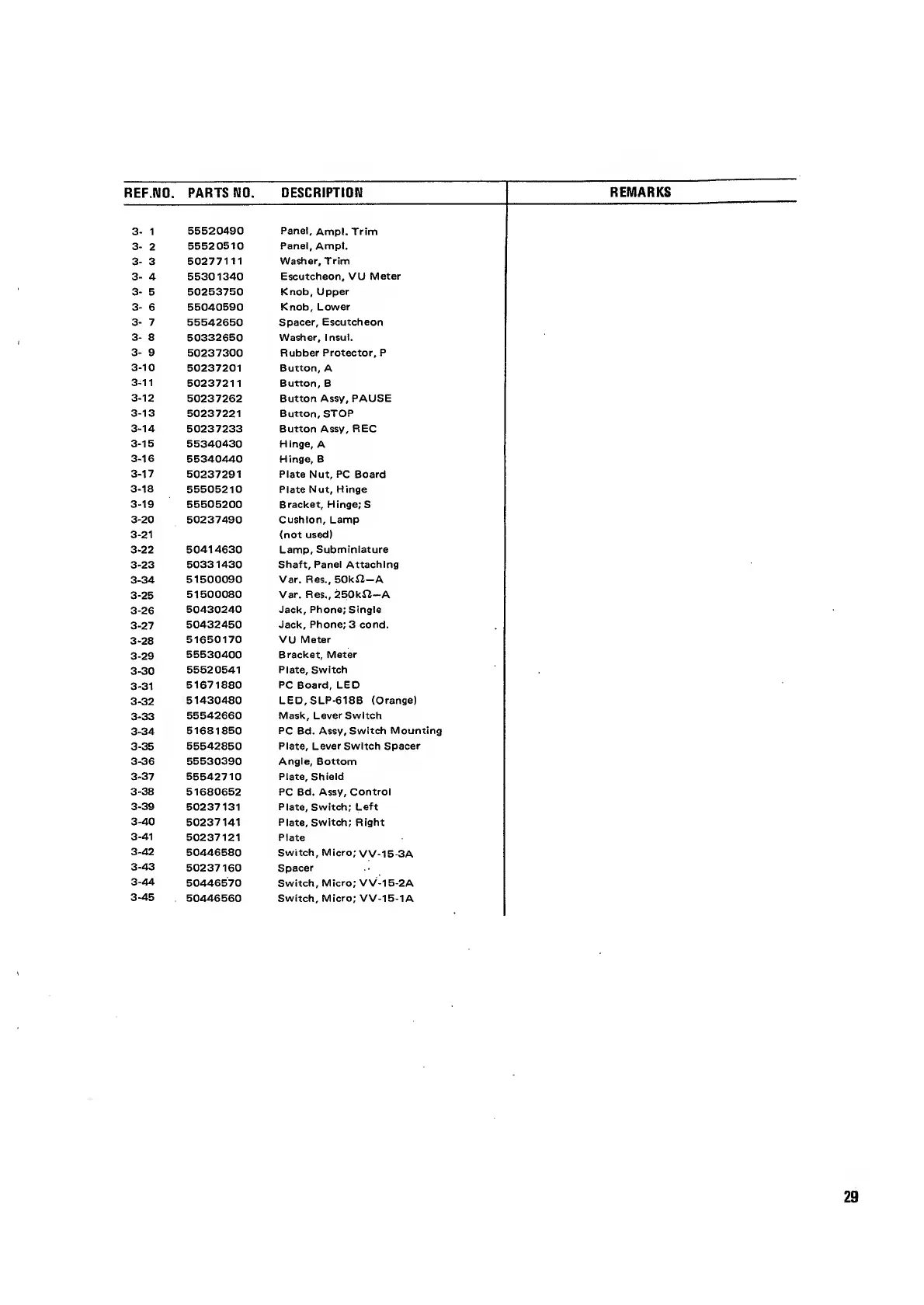

ref.no. parts no. description REMARKS
3- 1
55520490
Panel, Ampl. Trim
3- 2
55520510
Panel, Ampt.
3- 3
50277111
Washer, Trim
3- 4 55301340
Escutcheon, VU Meter
3- 5 50253750
Knob, Upper
3- 6 55040590
Knob, Lower
3- 7
55542650
Spacer, Escutcheon
3- 8
50332650
Washer, InsuL
3- 9
50237300
Rubber Protector, P
3-10
50237201 Button, A
3^11
50237211 Button, B
3-12
50237262
Button Assy, PAUSE
3-13
50237221 Button, STOP
3-14
50237233 Button Assy, REC
3-15
55340430
Hinge, A
3-16
55340440 Hinge, B
3-17
50237291 Plate Nut, PC Board
3-18
55505210 Plate Nut, Hinge
3-19
55505200
Bracket, Hinge; S
3-20 50237490 Cushion, Lamp
3-21
(not used)
3-22
50414630 Lamp, Subminiature
3-23
50331430
Shaft, Panel Attaching
3-34
51500090 Var. Res,, SOkfl—A
3-25
51500080 Var. Res., 250kn-A
3-26
50430240 Jack, Phone; Single
3-27
50432450 Jack, Phone; 3 cond.
3-28
51650170 VU Meter
3-29
55530400 Bracket, Meter
3-30
55520541 Plate, Switch
3-31
51671880 PC Board, LED
3-32
51430480 LED,SLP-618B (Orange)
3-33
55542660 Mask, Lever Switch
3-34
51681850 PC Bd. Assy, Switch Mounting
3-35
55542850 Plate, Lever Switch Spacer
3-36 55530390
Angle, Bottom
3-37 55542710
Plate, Shield
3-38
51680652
PC Bd. Assy, Control
3-39
50237131 Plate, Switch; Left
3-40
50237141 Plate, Switch; Right
3-41
50237121 Plate
3-42
50446580 Switch, Micro; VV-15-3A
3-43
50237160 Spacer
3-44
50446570 Switch, Micro; VV-15-2A
3-45
50446560
Switch, Micro; VV-15-1A
29
