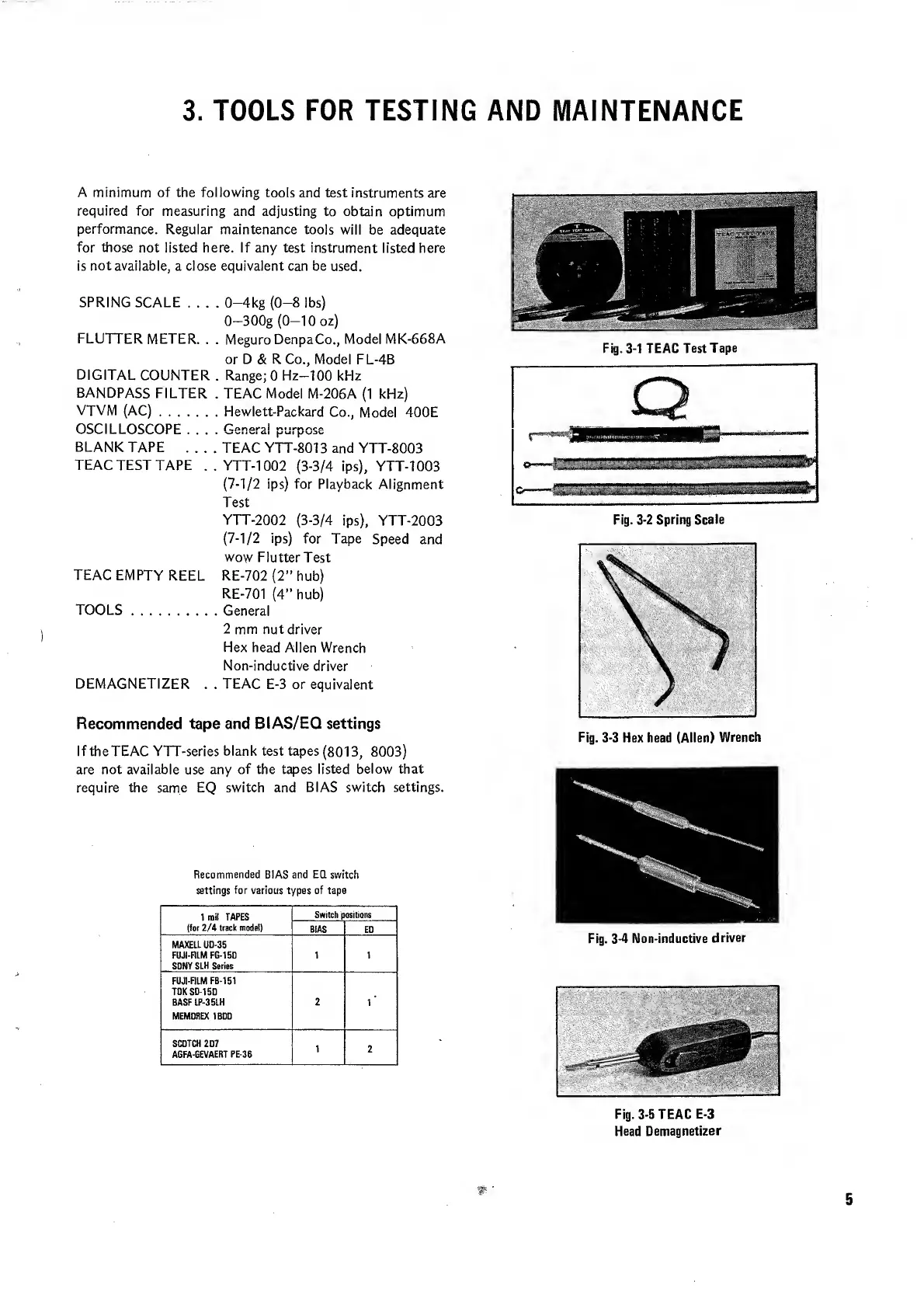

3. TOOLS FOR TESTING AND MAINTENANCE
A minimum of the following tools and test instruments are
required for measuring and adjusting to obtain optimum
performance. Regular maintenance tools will be adequate
for those not listed here. If any test instrument listed here
is not available, a close equivalent can be used.
SPRING SCALE_0-4kg (0-8 lbs)
0-300g (0-10 oz)
FLUTTER METER. . . Meguro DenpaCo., Model MK-668A
or D & R Co., Model FL-4B
DIGITAL COUNTER . Range; 0 Hz-100 kHz
BANDPASS FILTER . TEAC Model M-206A (1 kHz)
VTVM (AC).Hewlett-Packard Co., Model 400E
OSCILLOSCOPE .... Genera! purpose
BLANK TAPE _TEAC YTT-8013 and YTT-8003
TEAC TEST TAPE . . YTT-1002 (3-3/4 ips), YTT-1003
(7-1/2 ips) for Playback Alignment
Test
YTT-2002 (3-3/4 ips), YTT-2003
(7-1/2 ips) for Tape Speed and
wow Flutter Test
TEAC EMPTY REEL RE-702 (2” hub)
RE-701 (4” hub)
TOOLS.General
2 mm nut driver
Hex head Allen Wrench
Non-inductive driver
DEMAGNETIZER . . TEAC E-3 or equivalent
Recommended tape and BIAS/EQ settings
If theTEAC YTT-series blank test tapes (8013, 8003)
are not available use any of the tapes listed below that
require the same EQ switch and BIAS switch settings.
Recommended BIAS and EQ switch
settings for various types of tape
1 mil TAPES
(for 2/4 track mode!)
Switch positions
EQ
MAXELL UD-35
FUJI-HLM FG-150
SONY SLH Series
B B!
FUJI-FILM FB-151
TDK SD-150
BASF LP-35LH
MEMOREX 1800
2
r
SCOTCH 207
AGFA-GEVAERT PE-36
1
2
Fig. 3-1 TEAC Test Tape
Fig. 3-2 Spring Scale
Fig. 34 Non-inductive driver
Fig. 3-5 TEAC E-3
Head Demagnetizer
