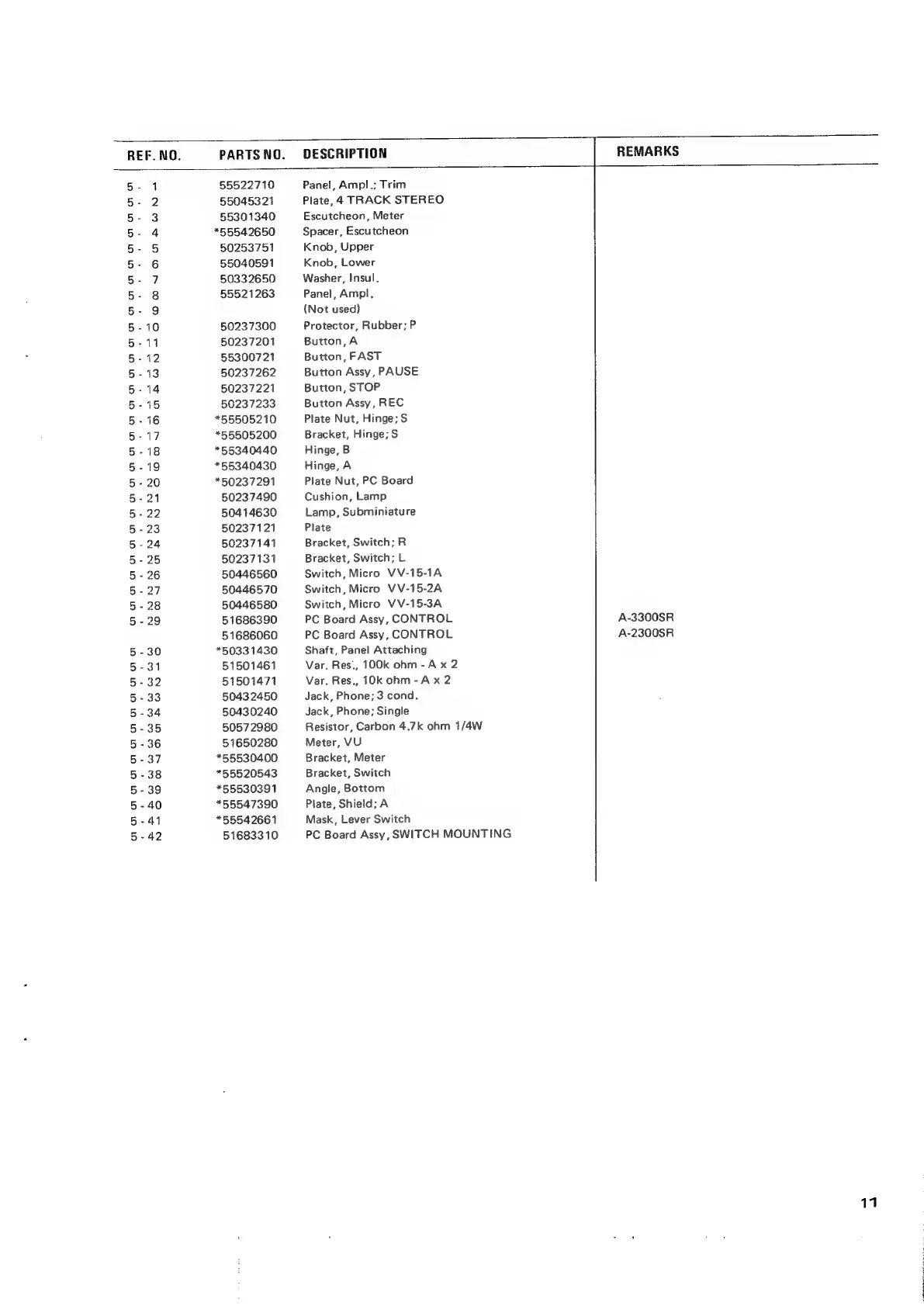

Teac A-3300SR - Page 34

REF.NQ.
PARTSNO.
DESCRIPTION
5- 1 55522710 Panel, Ampl.; Trim
5- 2 55045321 Plate, 4 TRACK STEREO
5- 3 55301340 Escutcheon, Meter
5- 4 *55542650 Spacer, Escutcheon
5- 5 50253751 Knob, Upper
5- 6 55040591 Knob, Lower
5- 7 50332650 Washer, Insul.
5- 8 55521263 Panel, Ampl.
5- 9 (Not used)
5-10 50237300 Protector, Rubber; P
5-11 50237201 Button,A
5-12 55300721 Button, FAST
5-13 50237262 Button Assy, PAUSE
5-14 50237221 Button, STOP
5-15 50237233 Button Assy, REC
5-16 *55505210 Plate Nut, Hinge; S
5-17 *55505200 Bracket, Hinge; S
5-18 *55340440 Hinge, B
5-19 *55340430 Hinge, A
5-20
*50237291
Piate
Nut,
PC
Board
5-21 50237490 Cushion, Lamp
5-22 50414630 Lamp, Subminiature
5-23 50237121 Plate
5-24 50237141 Bracket, Switch; R
5-25 50237131 Bracket, Switch; L
5-26
50446560
Switch,
Micro
VV-15-1A
5-27 50446570 Switch, Micro VV-15-2A
5-28
50446580
Switch,
Micro
VV-15-3A
5-29 51686390 PC Board Assy, CONTROL
51686060 PC Board Assy, CONTROL
5-30 *50331430 Shaft, Panel Attaching
5-31 51501461 Var. Res., 100k ohm -A x 2
5-32 51501471 Var. Res., 10k ohm -A x 2
5-33 50432450 Jack, Phone; 3 cond.
5-34 50430240 Jack, Phone; Single
5-35 50572980 Resistor, Carbon 4.7k ohm 1/4W
5-36 51650280 Meter, VU
5-37 *55530400 Bracket, Meter
5-38 *55520543 Bracket, Switch
5-39 *55530391 Angle, Bottom
5-40 *55547390 Plate, Shield; A
5-41 *55542661 Mask, Lever Switch
5-42 51683310 PC Board Assy, SWITCH MOUNTING
