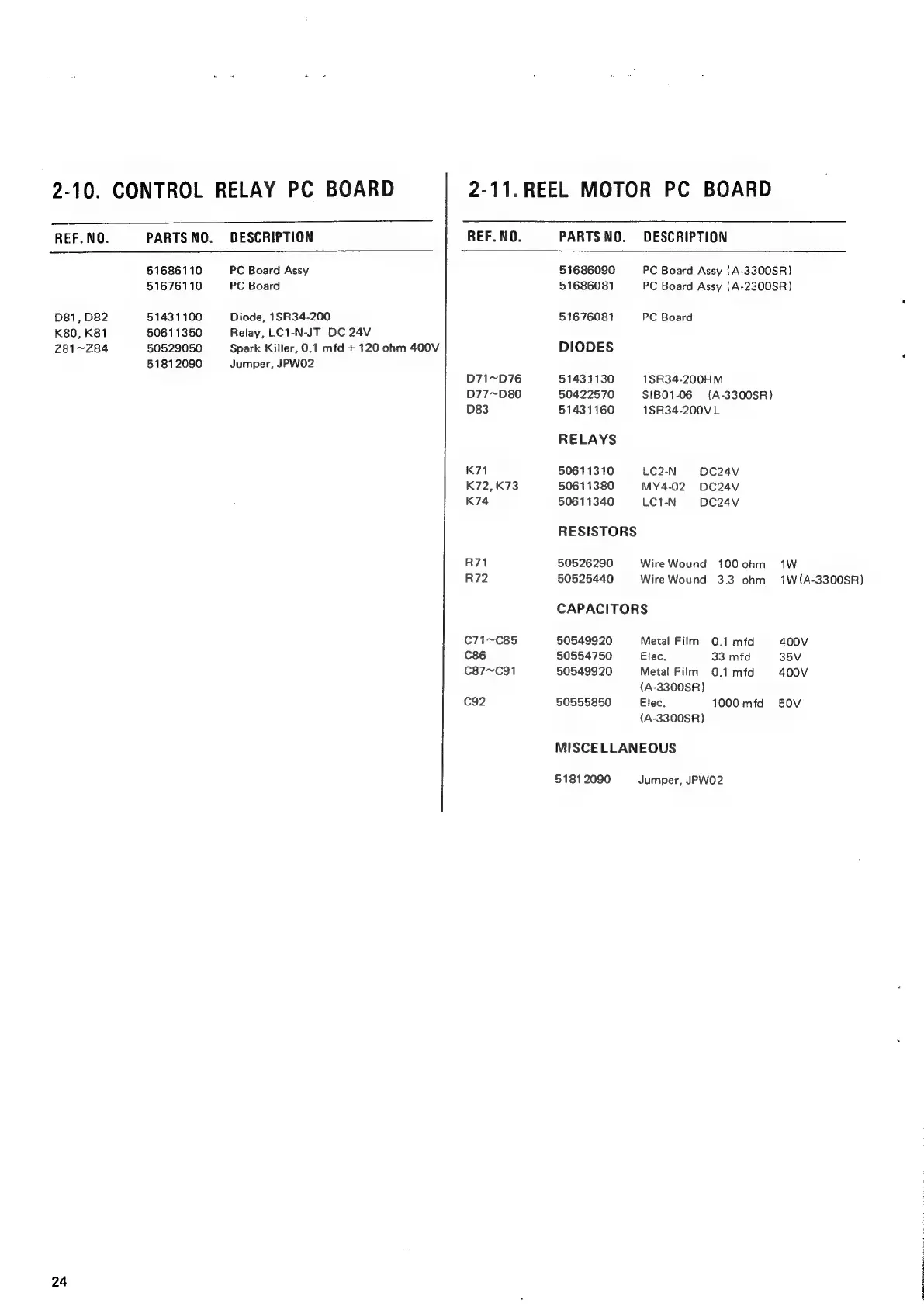

2-10. CONTROL RELAY PC BOARD
REF. NO.
D&1, D82
K&0, K81
281 ~Z84
24
PARTS NO.
51686110
51676110
51431100
50611350
50529050
51812090
DESCRIPTION
PC Board Assy
PC Board
Diode, 1SR34-200
Relay, LC1-N-JT DC 24V
Spark Killer, 0.1 mfd + 120 ohm 400V
Jumper, JPWO2
2-11. REEL MOTOR PC BOARD
REF.NO.
D71~D76
D77~D80
D83
K71
K72, K73
K74
R71
R72
C71~C85
C86
C87~C91
C92
PARTSNO. DESCRIPTION
51686090 PC Board Assy (A-3300SR)
51686081 PC Board Assy (A-2300SR)
51676081 PC Board
DIODES
51431130 1SR34-200HM
50422570 $1B01-06 (A-3300SR)
51431160 1SR34-200VL
RELAYS
50611310 LC2-N DC24vV
50611380 MY4-02 DC24V
50611340 LC1-N DC24V
RESISTORS
50526290 Wire Wound 1000hm 1W
50525440 Wire Wound 3.3 ohm 1W(A-3300SR)
CAPACITORS
50549920 Metal Film 0.1 mfd 400V
50554750 Elec. 33 mfd 35V
50549920 Metal Film 0.1 mfd 400V
(A-3300SR)
50555850 Elec. 1000 mfd 50V
(A-3300SR)
MISCELLANEOUS
51812090
Jumper, JPWO2
