Teac A-3340 - 3. EQUIPMENT REQUIRED; MECHANICAL MEASUREMENT EQUIPMENT; ELECTRICAL MEASUREMENT EQUIPMENT

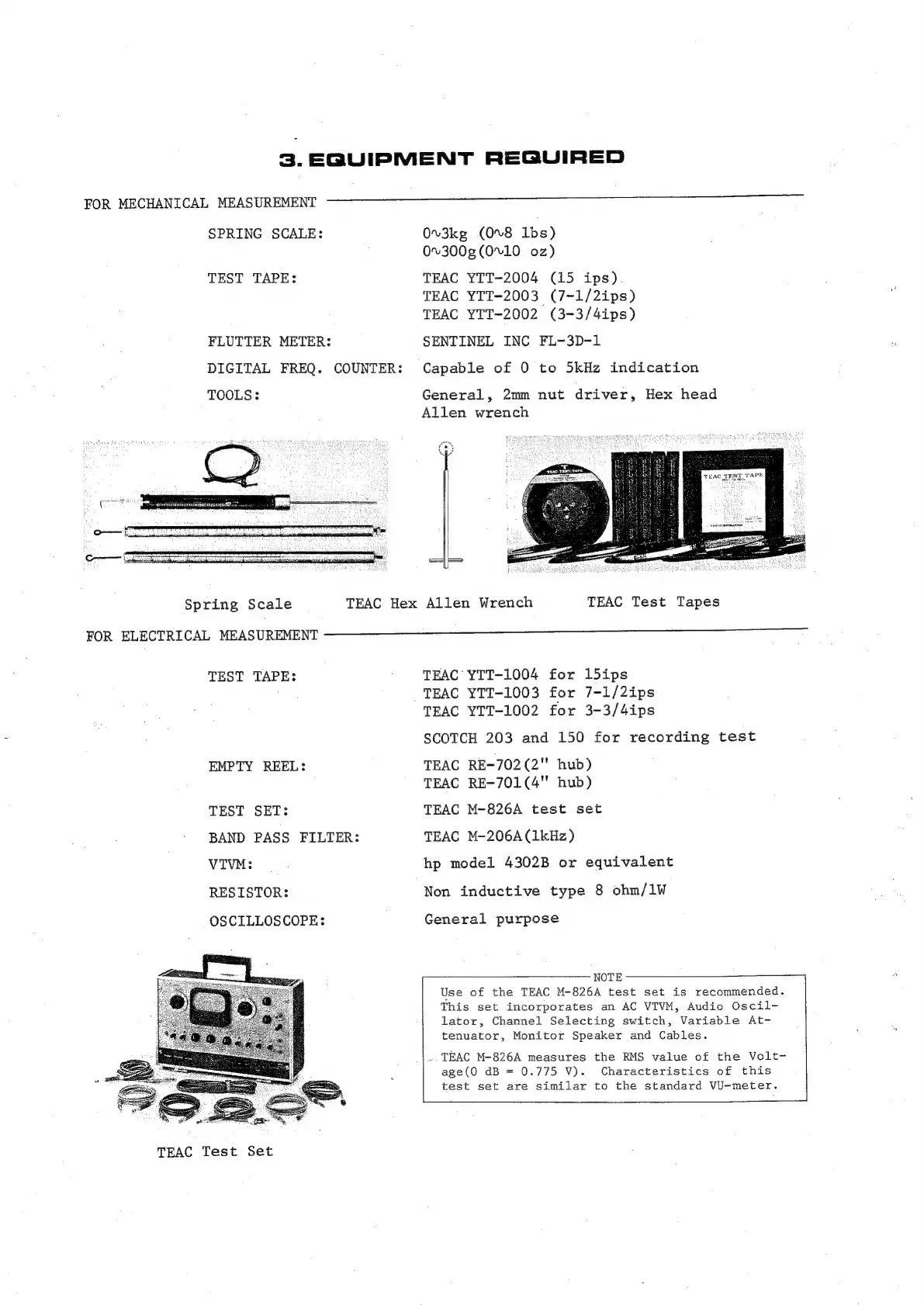

3.
EQUIPMENT
REQUIRED
FOR
MECHANICAL
MEASUREMENT
oo
SPRING SCALE: 0v3kg (008 lbs)
0%300¢ (010 oz)
TEST TAPE: TEAC YTT-2004 (15 ips).
TEAC YTT-2003 (7-1/2ips)
TEAC YTT-2002 (3-3/4ips)
FLUTTER METER: SENTINEL INC FL-3D-1
DIGITAL FREQ. COUNTER: Capable of 0 to 5kHz indication
TOOLS: General, 2mm nut driver, Hex head
Allen wrench
: Xe
5 ze 7
TEAC VEST TAPE
Spring
Scale
TEAC
Hex
Allen
Wrench
TEAC
Test
Tapes
FOR ELECTRICAL MEASUREMENT
TEST TAPE: TEAC YTT-1004 for 15ips
TEAC YTT-1003 for 7-1/2ips
TEAC YTT-1002 for 3-3/4ips
SCOTCH 203 and 150 for recording test
EMPTY REEL: TEAC RE-702(2" hub)
TEAC RE-701(4" hub)
TEST SET: TEAC M-826A test set
BAND PASS FILTER: TEAC M-206A (1kHz)
VTVM: hp model 4302B or equivalent
RESISTOR: Non inductive type 8 ohm/1W
OSCILLOSCOPE:
General
purpose
NOTE
Use of the TEAC M-826A test set is recommended.
This set incorporates an AC VIVM, Audio Oscil-
lator, Channel Selecting switch, Variable At-
tenuator, Monitor Speaker and Cables.
.. TEAC M-826A measures the RMS value of the Volt-
age(O dB = 0.775 V). Characteristics of this
test set are similar to the standard VU-meter.
TEAC Test Set
