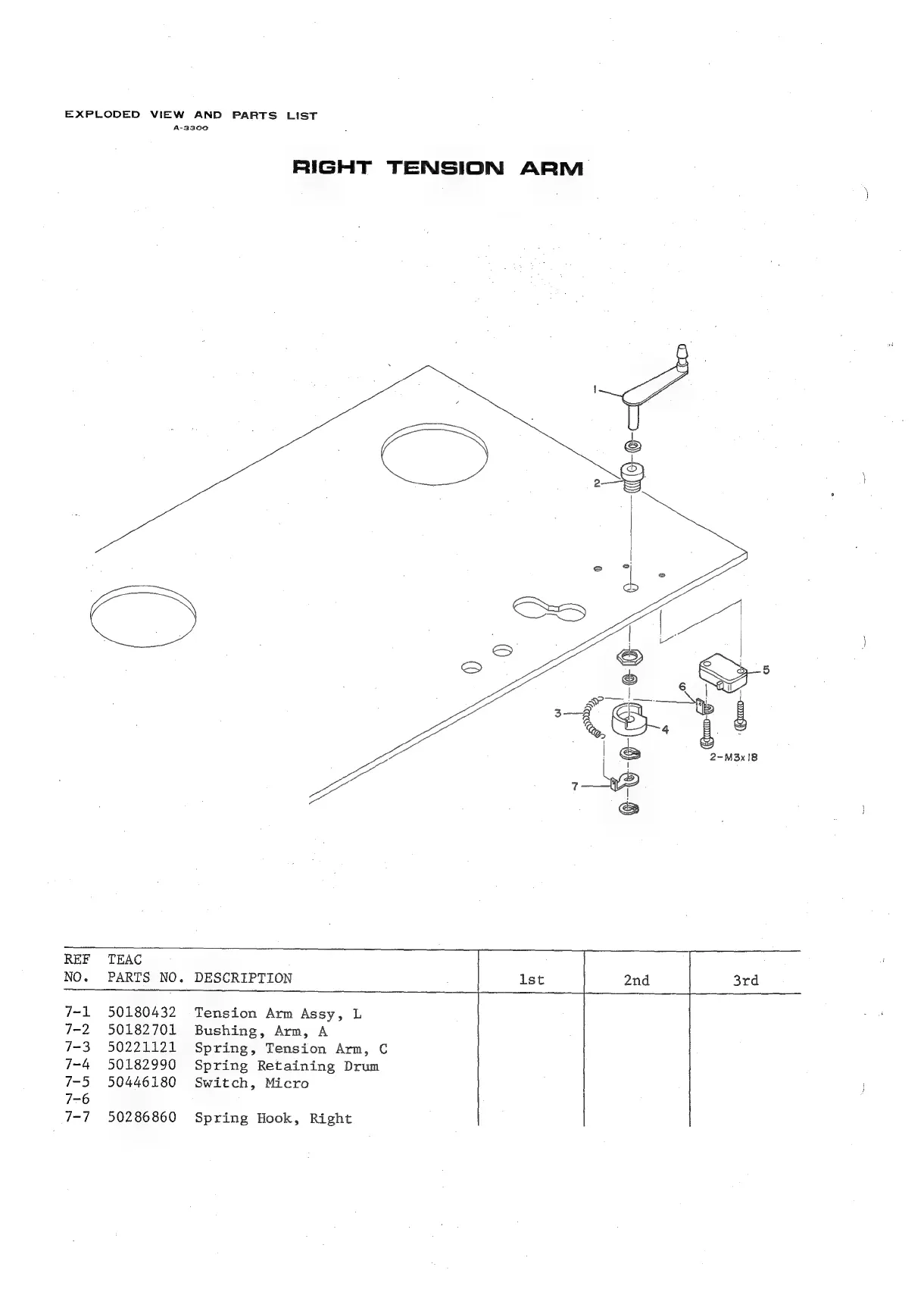

Teac A-3340 - RIGHT TENSION ARM PARTS

EXPLODED VIEW AND PARTS LIST
A-3300
RIGHT TENSION ARM
REF
TEAC
ie
NO.
PARTS
NO.
DESCRIPTION
ist
2nd
3rd
7-1 50180432 Tension Arm Assy, L
7-2 50182701 Bushing, Arm, A
7-3 50221121 Spring, Tension Arm, C
7-4 50182990 Spring Retaining Drum
7-5 50446180 Switch, Micro
7-6
7-7
50286860 Spring Hook, Right
