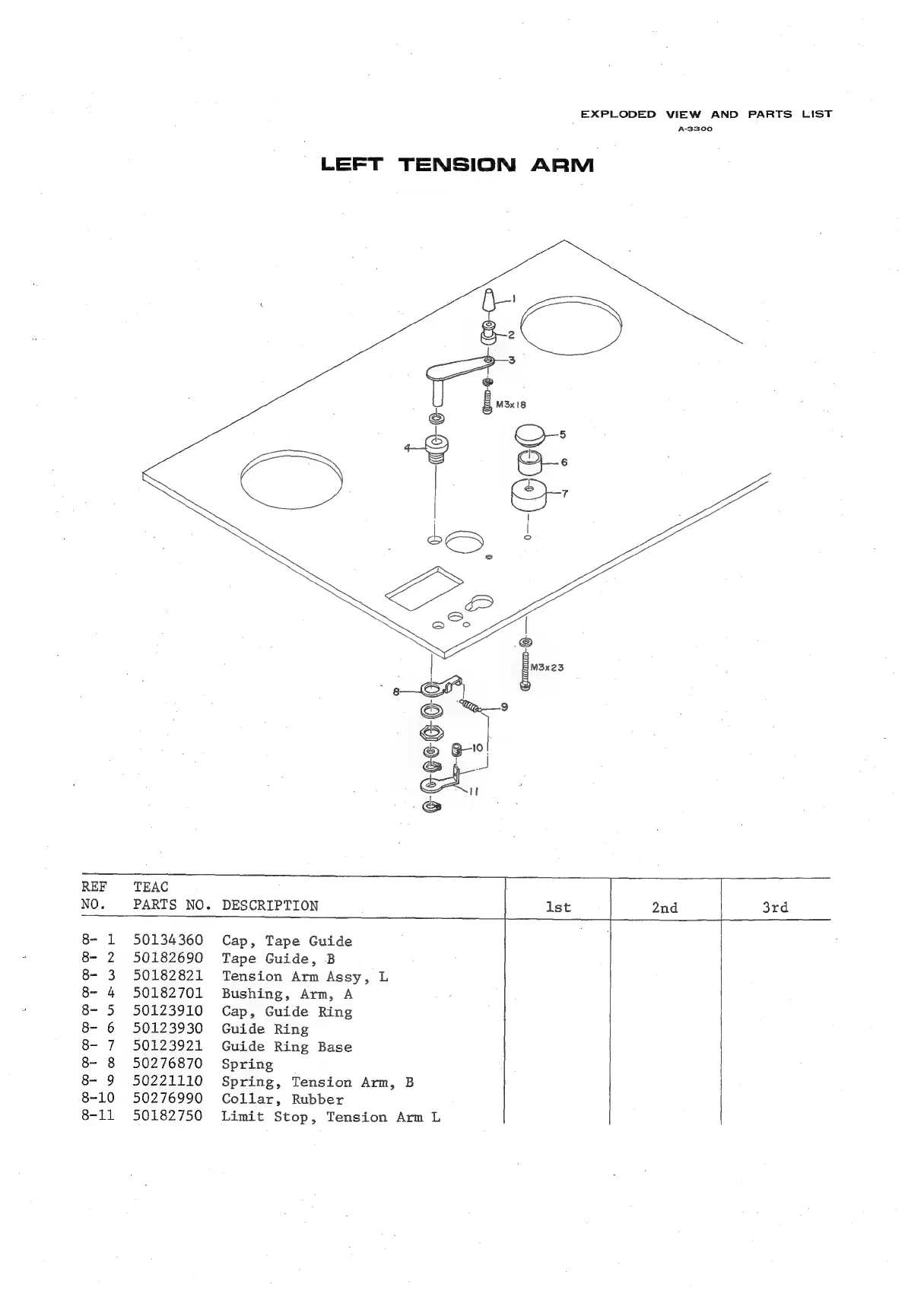

Teac A-3340 - LEFT TENSION ARM PARTS

EXPLODED VIEW AND PARTS LIST
: A-3300
LEFT TENSION ARM
REF TEAC
NO.
PARTS
NO.
DESCRIPTION
ist
2nd
_|
3rd
8-
1 50134360
Cap,
Tape Guide
8- 2 50182690 Tape Guide, B
8- 3 50182821 Tension Arm Assy, L
8- 4 50182701 Bushing, Arm, A
8- 5 50123910 Cap, Guide Ring
8- 6 50123930 Guide Ring
8- 7 50123921 Guide Ring Base
8- 8 50276870 Spring
8- 9 50221110 Spring, Tension Arm, B
8-10 50276990 Collar, Rubber
8-11 50182750 Limit Stop, Tension Arm L
