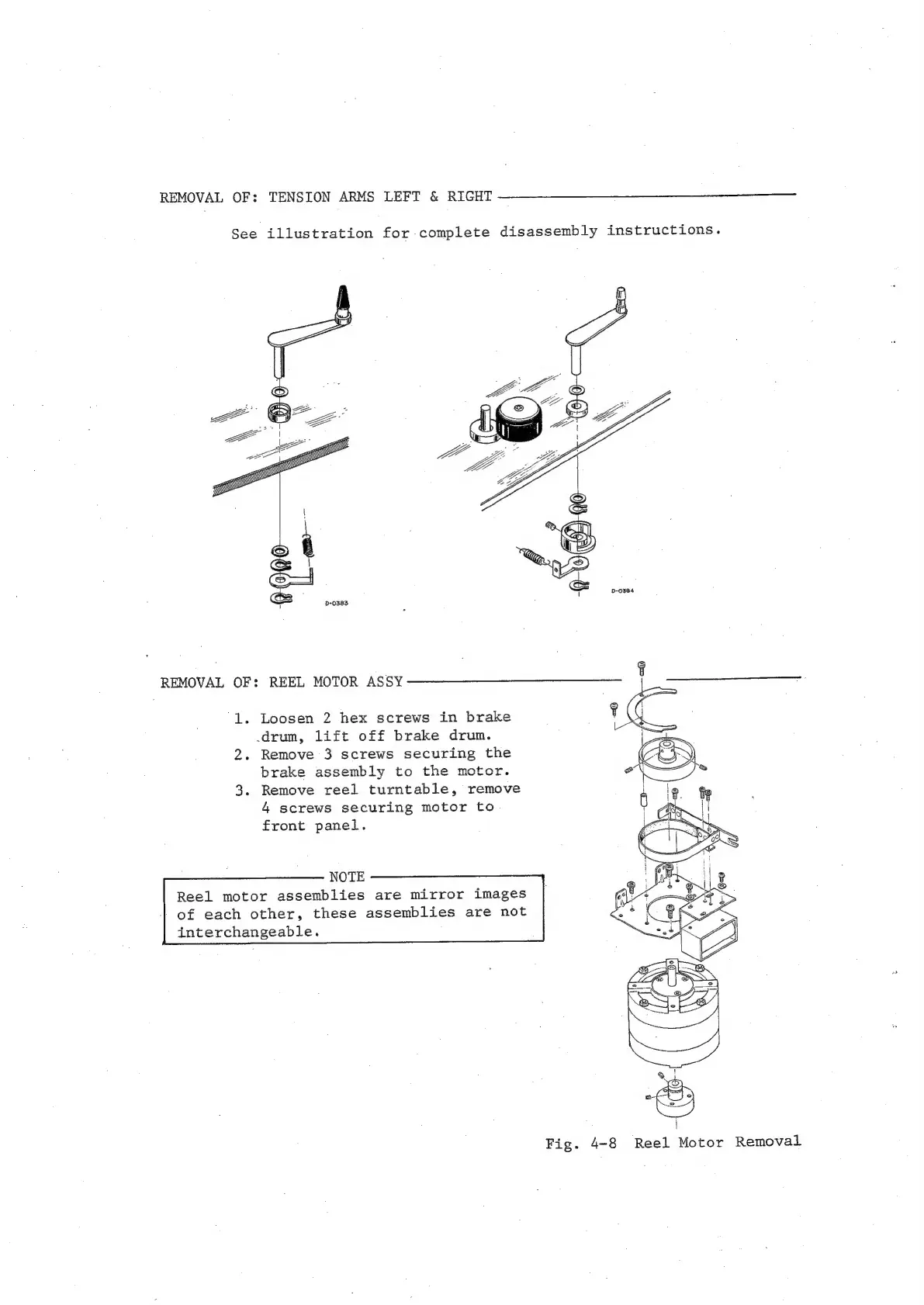

Teac A-3340 - REEL MOTOR AND TENSION ARM REMOVAL; REEL MOTOR ASSEMBLY REMOVAL; TENSION ARMS REMOVAL

REMOVAL
OF:
TENSION
ARMS
LEFT
&
RIGHT?
———2———_—___-——_
See
illustration
for
complete
disassembly
instructions.
REMOVAL OF: REEL MOTOR ASSY
1. Loosen 2 hex screws in brake
drum, lift off brake drum.
2. Remove 3 screws securing the
brake assembly to the motor.
3. Remove reel turntable, remove
4 screws securing motor to
front panel.
NOTE
Reel
motor
assemblies
are
mirror
images
of
each
other,
these
assemblies
are
not
interchangeable.
Fig.
4-8
Reel
Motor
Removal
