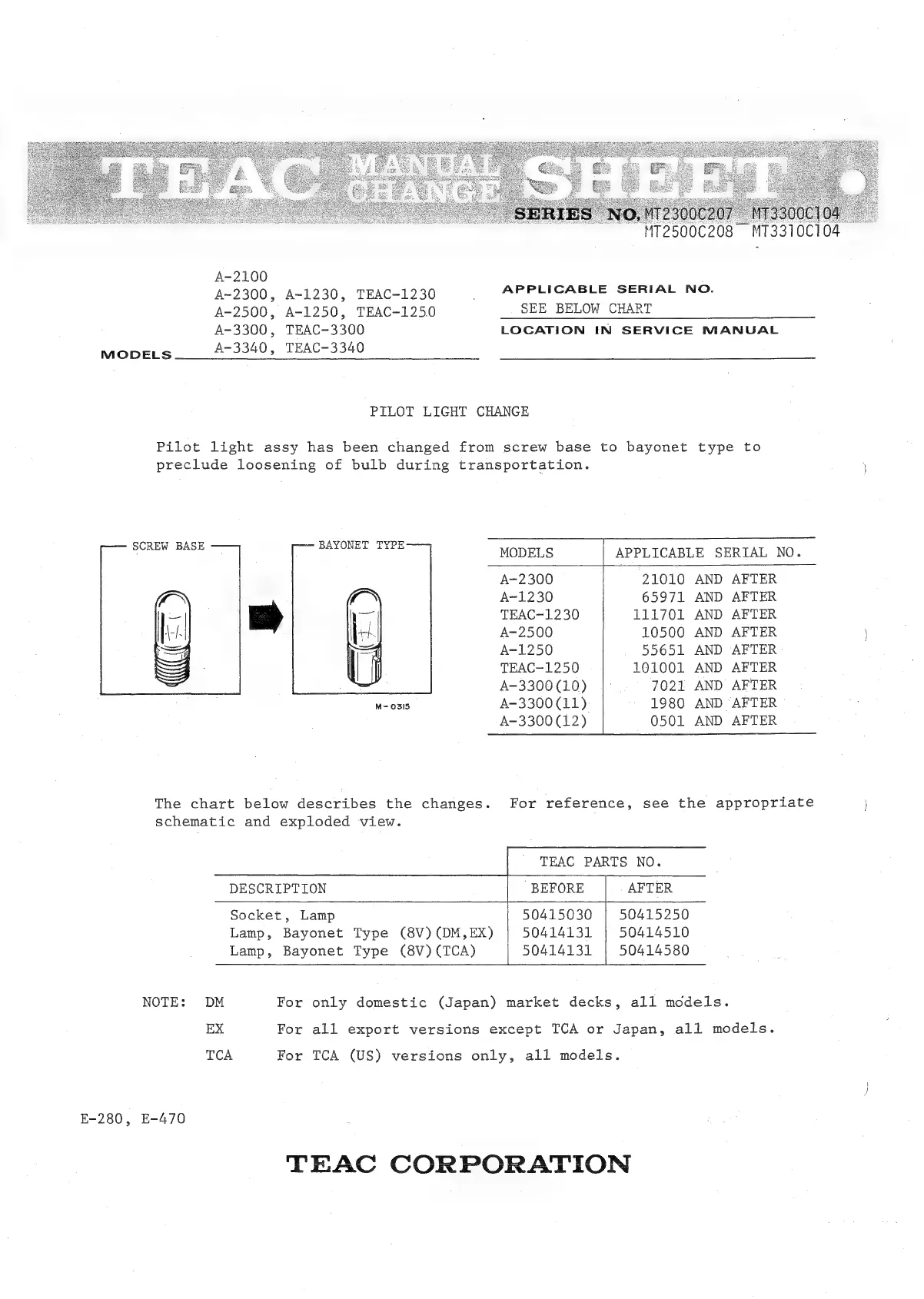

Teac A-3340 - PILOT LIGHT CHANGE

MT2500C208 =MT3310C104
A-2100
A-2300, A-1230, TEAC-1230 APPLICABLE SERIAL NO.
A-2500, A-1250, TEAC-1250 SEE BELOW CHART
A-3300, TEAC-3300 LOCATION IN SERVICE MANUAL
PILOT LIGHT CHANGE
Pilot light assy has been changed from screw base to bayonet type to
preclude loosening of bulb during transportation. ,
J TVD SS ee ee ne pg
Pee eee MODELS APPLICABLE SERIAL NO.
A-2300 21010 AND AFTER
A-1230 65971 AND AFTER
a TEAC-1230 111701 AND AFTER
A-2500 10500 AND AFTER .
A-1250 55651 AND AFTER
TEAC-1250 101001 AND AFTER
: A-3300(10) 7021 AND AFTER
M- 0315 A-3300(11) 1980 AND AFTER
A-3300(12) 0501 AND AFTER
The chart below describes the changes. For reference, see the appropriate }
schematic and exploded view.
TEAC PARTS NO.
BEFORE AFTER
50415030 | 50415250
50414131 | 50414510
50414131 | 50414580
DESCRIPTION
Socket, Lamp
Lamp, Bayonet Type (8V) (DM,EX)
Lamp, Bayonet Type (8V) (TCA)
NOTE: DM For only domestic (Japan) market decks, all models.
EX For all export versions except TCA or Japan, all models.
TCA For TCA (US) versions only, all models.
E-280, E-470
TEAC CORPORATION
