CAPSTAN
CAPSTAN
ASSEMBLY
~
Remove
rear
cover,
remove
capstan
belt.
~
Remove
the
four
screws
holding
capstan
base(casting)
in
place.
-
Remove
the
three
screws
in
capstan
assembly.
-
Gently
pull
or
fold
capstan
base
forward
until
enough
clearance
is
obtained
to
remove
the
capstan
assembly.
CAUTION:
Do
not
exert
excessive
force,
a
gentle
pressure
should
suffice.
~
Loosen
the
two
setscrews
(HEX
HEAD)
on
rear
of
flywheel,
pull
out
the capstan assembly.
-
To
reinstall
capstan
assembly,
reverse
above
procedures.
IMPORTANT:
A
clearance
of
0.02"
must
be
maintained
between
the
flywheel
and
capstan
assembly.
BELT REPLACEMENT
-~
Remove
the
rear
cover
and
the
capstan
thrust
plate.
-
Capstan
belt
can
be
taken
off
through
the
flywheel
and
transport
chassis, opening.
CAUTION:
When
installing
the
new
capstan
belt,
be
careful
not
to
stretch
it.
Do
not
allow
oil
or
grease
to
contact
the
cap-
stan
belt.
After
installing,
clean
it
with
TEAC
rubber
cleaner.
-
Capstan
belt
tension
adjustmnet
can
be
made
by
loosening
four
mounting
screws
and
moving
the
capstan
motor.
-
Apply
a
drop
of
LOCTITE
on
the
screws
when
the
adjustment
is
complete.
ones

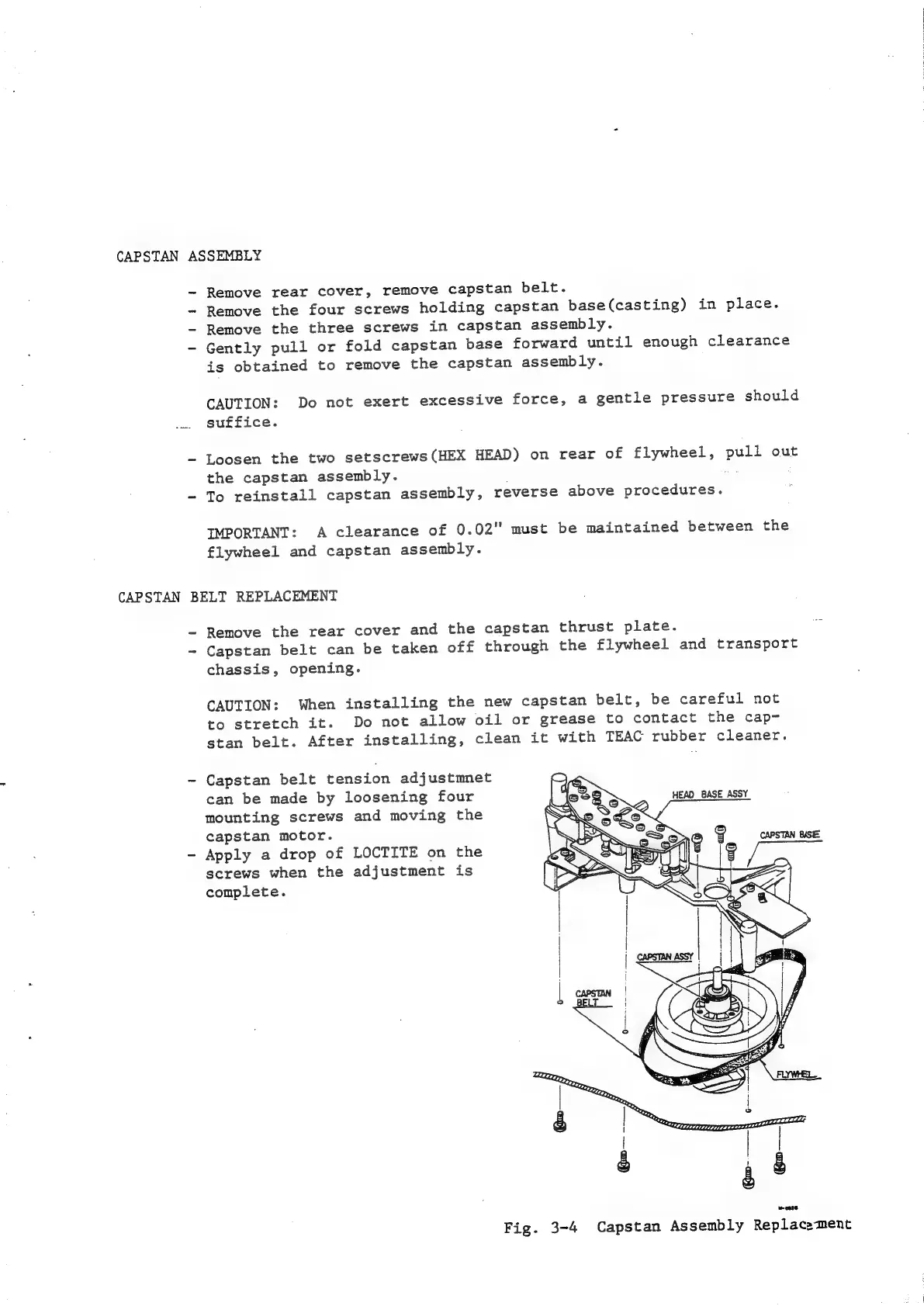

Fig.
3-4
Capstan
Assembly
Replacement
