INDIVIDUAL HEAD REPLACEMENT
-
Remove
head
housing
cover
by
loosening
screw
on
top
of
cover.
-
Remove
the
two
screws
which
retain
head
assembly
and
separate
the
head
assembly
from
the
chassis
to
allow
easy
replacement
of
the
head
(does
not
require
this
procedure
when
replacing
erase
head
or with face plate removed).
-
Replacement
of
head
is
done
by
using
a
2mm
nut
dirver
(TEAC
#5086014000).
By
removing
two
setnuts
each
head
can
be
taken
off
easily
(one
screw
for
erase
head).
Slots
provide
access
-
through
the
plate
to
these
setnuts.
CAUTION:
Do
not
touch
other
set
screws.
=
-
Note
the
position
of
the
wires
on
the
circuit
board
before
unsol-
dering.
-
Reverse
the
procedure
to
reinstall
the
new
head.
NOTE:
Replace
the
nuts
securing
the
new
head
to
the
plate.
Perform
head
alignment
before
operation.
Head
installation
mounting
provides
for
left
or
right
position.
After
reinstalling
head,
determine
proper
position
while
record-
ing
or
playing
back
a
tape.
I
@
\ 2
. ae
, . RECORD OR
PLAYBACK
ha
S

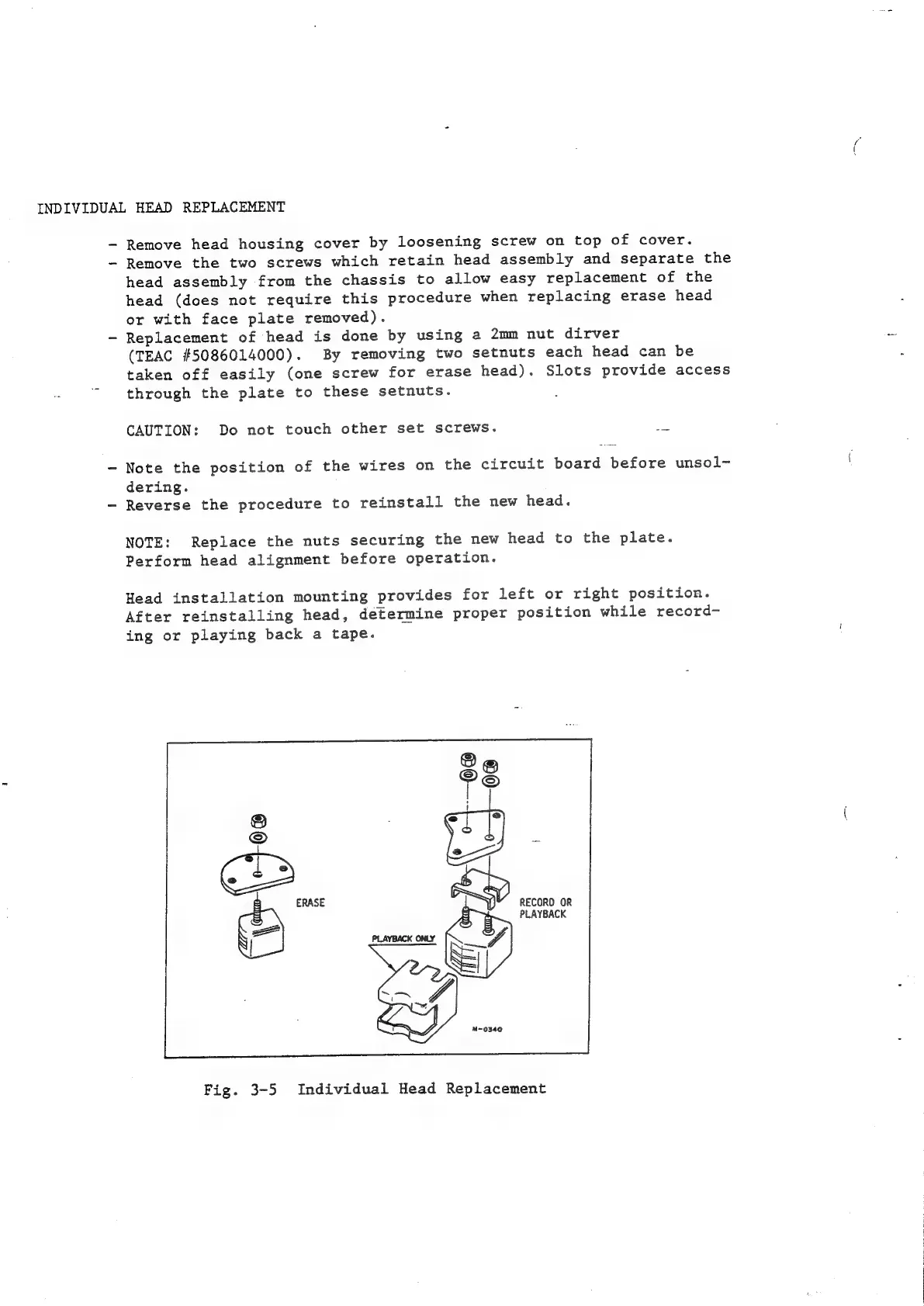

Fig. 3-5 Individual Head Replacement
