Teac A-4010GSL User Manual

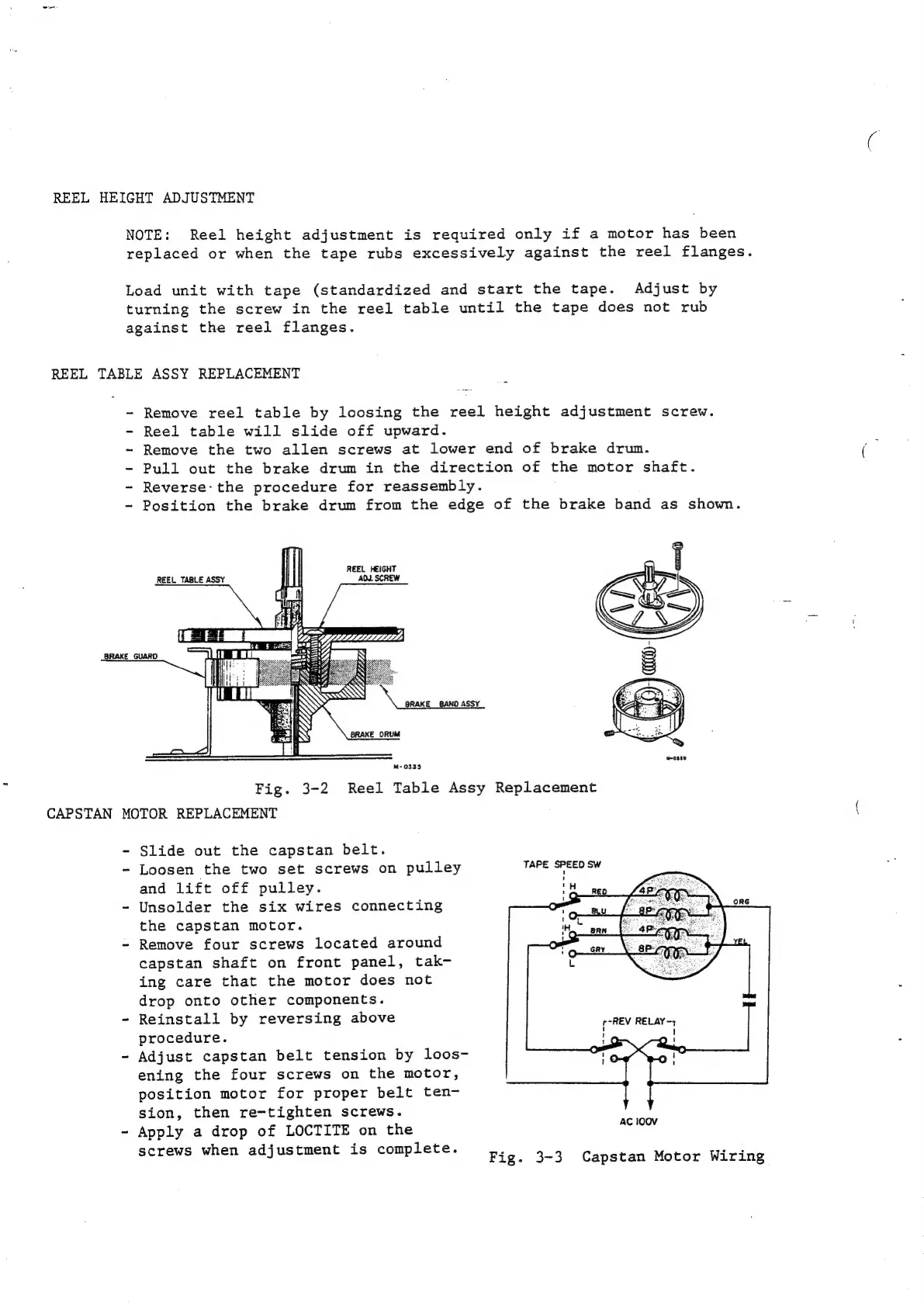

REEL HEIGHT ADJUSTMENT
NOTE: Reel height adjustment is required only if a motor has been
replaced or when the tape rubs excessively against the reel flanges.
Load unit with tape (standardized and start the tape. Adjust by
turning the screw in the reel table until the tape does not rub
against the reel flanges.
REEL TABLE ASSY REPLACEMENT
- Remove reel table by loosing the reel height adjustment screw.
- Reel table will slide off upward.
~ Remove the two allen screws at lower end of brake drum.
- Pull out the brake drum in the direction of the motor shaft.
~ Reverse: the procedure for reassembly.
~ Position the brake drum from the edge of the brake band as shown.
REEL HEIGHT
REEL TABLE ASSY
9339
M-O333
Fig. 3-2 Reel Table Assy Replacement
CAPSTAN MOTOR REPLACEMENT
- Slide out the capstan belt.
- Loosen the two set screws on pulley
and lift off pulley.
- Unsolder the six wires connecting
the capstan motor.
-
Remove
four
screws
located
around
capstan
shaft
on
front
panel,
tak-
ing
care
that
the
motor
does
not
drop
onto
other
components.
- Reinstall by reversing above
procedure.
-
Adjust
capstan
belt
tension
by
loos-
ening
the
four
screws
on
the
motor,
position
motor
for
proper
belt
ten-
sion,
then
re-tighten
screws.
- Apply a drop of LOCTITE on the
screws
when
adjustment
is
complete.
Fig.
3-3
Capstan
Motor
Wiring
TAPE SPEED Sw
AC 100V
